Rasha RP-HXCORE-WHT

Battery-Operated LED Uplight

The Rasha RP HXCORE WHT Core is a compact white battery-operated LED uplight featuring four 18W Hex RGBAW+UV LEDs, 25° optics, and multiple wireless control options. Designed for mobile DJs, weddings, event production, stages, venues, and architectural lighting, it combines portable battery power with smooth color mixing and flexible programming.

Rasha RP HXCORE WHT Competitive Differences

• Four 18W Hex RGBAW+UV LEDs provide six-color mixing for saturated colors, pastels, white tones, amber, and UV effects
• Built-in 14,000 mAh Li-Ion battery provides up to 10 hours of operation on a single charge

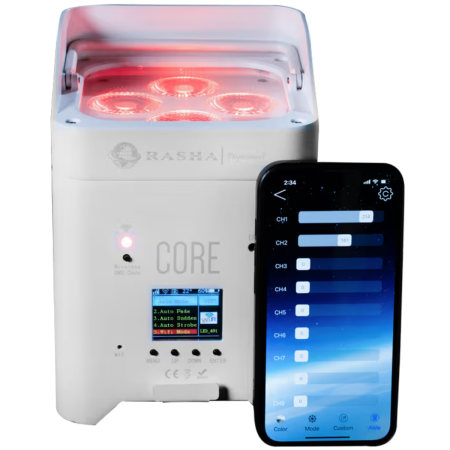

• Wi-Fi app control provides wireless programming from compatible iOS and Android devices
• Integrated 2.4 GHz wireless DMX supports cable-free control at distances up to 1000 ft
• 18-bit dimming provides smooth fades and precise 0–100% intensity adjustment
• 25° optics produce evenly blended color without harsh edges or visible hotspots
• White metal housing blends naturally into weddings, upscale events, and light-colored architectural environments

Rasha RP HXCORE WHT Description

The Rasha RP HXCORE WHT Core combines portable battery operation with versatile RGBAW+UV color mixing in a compact white fixture. Four 18W Hex LEDs provide a broad color palette, while the 25° optical system creates smooth, uniform washes for walls, columns, stages, scenic elements, and architectural surfaces.

A built-in 14,000 mAh Li-Ion battery provides up to 10 hours of operation, helping reduce visible power cabling at mobile events and temporary installations. Charging takes approximately four hours, while PowerCON AC input and thru connections allow conventional powered operation when needed.

Control options include Wi-Fi app control for compatible iOS and Android devices, wired DMX, 2.4 GHz wireless DMX, IR remote control, sound-active operation, automatic programs, and static color modes. Six- and 10-channel DMX configurations make the Core suitable for both straightforward uplighting systems and more detailed programmed shows.

The compact metal enclosure weighs 5.2 lb and includes an adjustable folding bracket for floor placement or truss mounting in any orientation. Its white finish is particularly well suited for weddings, corporate functions, formal events, houses of worship, studios, and other installations where a less visually intrusive fixture is preferred.

RP HXCORE WHT Features

• White battery-operated LED uplight
• Four 18W Hex RGBAW+UV LED chips
• Red, green, blue, amber, white, and ultraviolet color mixing
• 25° minimum LED beam angle
• 18-bit electronic dimming
• 0–100% dimming range
• 38 color presets
• Variable-speed strobe and pulse effects
• Random strobe effect
• Built-in 14,000 mAh Li-Ion battery
• Up to 10 hours of battery operation
• Approximately 4-hour charging time
• Wi-Fi app control
• Compatible with iOS and Android devices
• 2.4 GHz wireless DMX control
• Wireless DMX control distance up to 1000 ft
• IR remote control
• Wired DMX via 3-pin locking XLR connections
• 6- and 10-channel DMX modes
• Sound-active operation with adjustable microphone sensitivity
• Auto, static, music-triggered, and built-in show modes
• Wireless master/slave linking
• 1.8-inch LED menu display
• 4-button menu interface
• Adjustable folding mounting bracket
• Operates in any orientation
• Metal housing
• IP20 rated for indoor use
• Two low-noise cooling fans
• 50,000-hour rated LED lifetime to greater than 70% luminous output under manufacturer test conditions

RP HXCORE WHT Specifications

• Light Source: 4 x 18W Hex RGBAW+UV LEDs
• Color Mixing: RGBAW+UV
• Beam Angle: 25° minimum
• Electronic Dimming: 0–100%, 18-bit
• Color Presets: 38
• DMX Channels: 6 / 10
• Wireless DMX: 2.4 GHz
• Wireless DMX Control Distance: Up to 1000 ft (304.8 m)
• IR Control Distance: Up to 10 ft (3.05 m)
• DMX Data In/Thru: 3-pin locking XLR

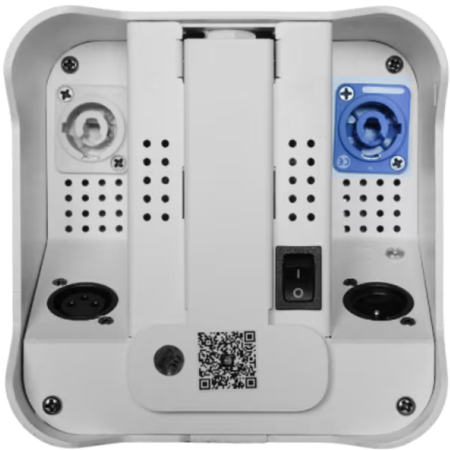

• AC Power In/Thru: PowerCON male/female
• Input Voltage: 110–240 VAC, 50/60 Hz, auto-ranging
• Power Consumption: 130W, 1.1A at 120V / 60Hz
• Fuse: T5A
• Battery: 14,000 mAh Li-Ion
• Battery Runtime: Up to 10 hours
• Battery Charger: 2A
• Charging Time: Approximately 4 hours
• Display: 1.8 in LED menu display
• Menu Interface: 4-button
• Housing: Metal
• Lens: Plastic
• Protection Rating: IP20
• Installation Location: Indoor use only
• Mounting: Adjustable folding bracket
• Operating Orientation: Any
• Cooling: 2 low-noise fans
• Maximum Ambient Temperature: 122°F (50°C)
• Minimum Ambient Temperature: 32°F (0°C)
• Dimensions: 5.375 x 5.375 x 7.750 in (136.5 x 136.5 x 196.9 mm)
• Weight: 5.2 lb (2.36 kg)
• Color: White

What's In The Box

• 1 x Rasha Core uplight
• 1 x 3 ft power cable
• 1 x IR remote
• 1 x Quick reference guide
