Moving Head LED Batten
The

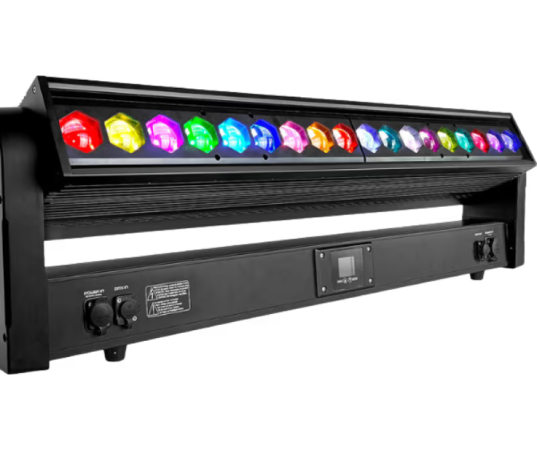

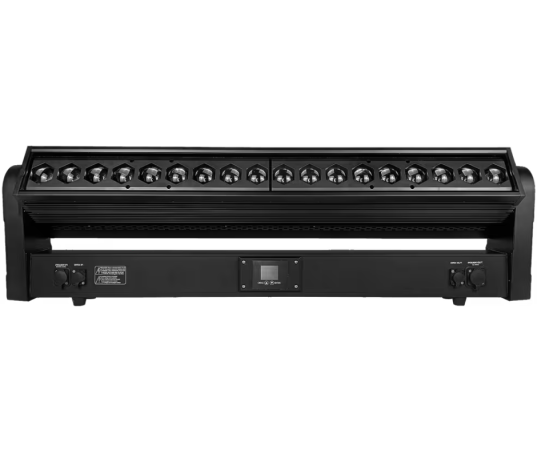

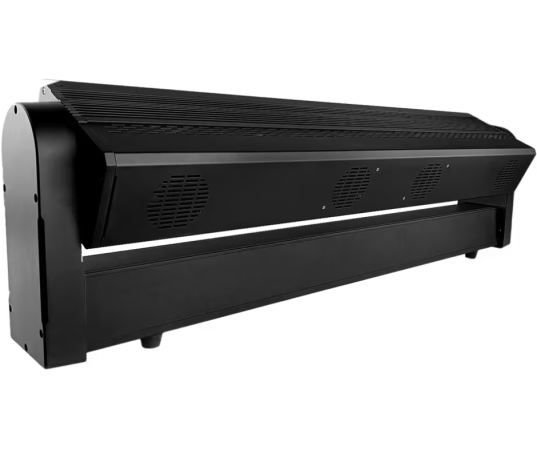

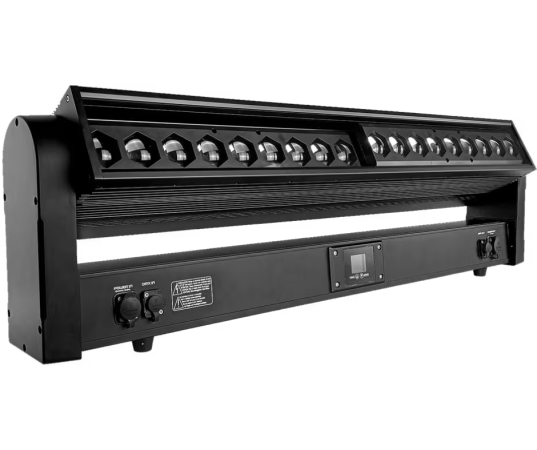

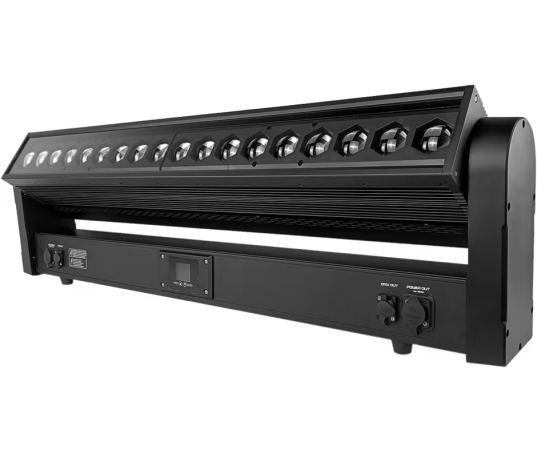

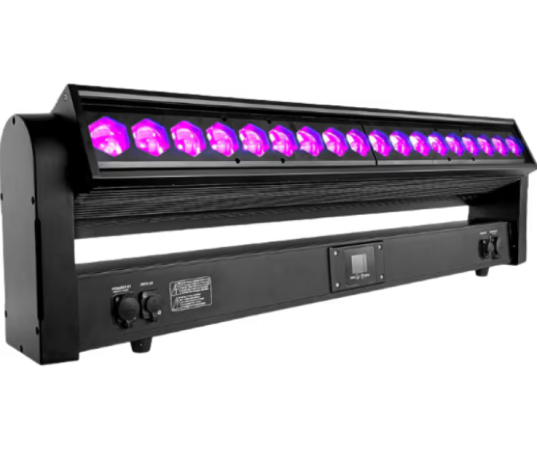

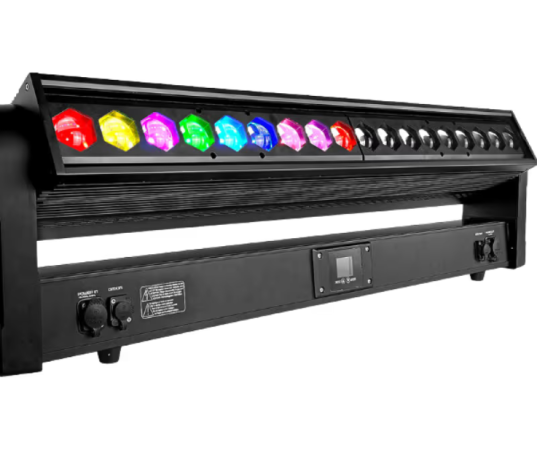

Rasha Skyline is a dynamic moving head batten built to deliver bold, colorful washes and animated pixel effects with precision and power. Equipped with eighteen 40W RGBW LEDs and a motorized 4°–60° zoom, this IP65-rated fixture is ideal for concerts, architectural lighting, outdoor events, and professional installs where visual impact and reliability are key.
Rasha Skyline Competitive Differences
- IP65-rated magnesium-alloy housing for outdoor use
- 18x40W RGBW LEDs with pixel mapping and motorized zoom
Rasha Skyline Description
The
Skyline from Rasha Professional is a high-output LED batten that fuses precise tilt movement, smooth color mixing, and pixel-level control into one versatile fixture. Whether creating aerial effects, sweeping stage washes, or architectural uplighting, Skyline delivers strong visual performance without sacrificing simplicity or durability.
Designed for outdoor or indoor use, Skyline features a robust IP65-rated magnesium-alloy chassis and tempered glass lens. The 18 individual LEDs are fully pixel-mappable and capable of vibrant RGBW color mixing, while 43 built-in pattern macros and 19 color macros enable instant visual effects with minimal programming. The unit’s 205° motorized tilt expands coverage and enables creative rigging on trusses, facades, or ground-supported structures.
Skyline’s motorized zoom transitions from narrow 4° beams to broad 60° floods, providing lighting designers with flexible looks from the same fixture. Electronic dimming, 0–20 Hz strobe, and 8- or 16-bit control add finesse and accuracy to your cues, while a 3600 Hz refresh rate ensures flicker-free operation for broadcast and video applications.
The full-color capacitive touchscreen makes menu navigation intuitive, and RDM support allows for remote addressing and monitoring—ideal for complex rigs. Whether you’re a touring LD or permanent installer, Skyline is ready to meet the demands of today’s production environments.
Model Features
- 18x40W RGBW LEDs with smooth color mixing and 20,000-hour lifespan
- IP65 outdoor-ready magnesium alloy housing
- Motorized 4°–60° zoom for beam or wash effects
- 205° tilt range with 16-bit resolution and self-correcting positioning
- 43 built-in pattern macros and 19 color macros
- Pixel-mappable across 18 LED zones
- Control modes: DMX, Auto, Sound with multiple channel profiles
- RDM-compliant for remote configuration and monitoring
- Full-color LCD with capacitive touch interface
- True1 IP65 power connectors and 5-pin DMX I/O
Model Specifications
- Light Source: 18x 40W RGBW LEDs
- Zoom Range: 4° to 60° motorized
- Illuminance: 19,000 lux @ 5m (narrow), 1,500 lux @ 5m (wide)
- Tilt Range: 205° (16-bit)
- Control: DMX (16Ch, 27Ch, 76Ch, 88Ch), RDM, Auto, Sound
- Dimensions: 42.40 x 4.83 x 12.58 in (1077 x 122.3 x 319.9 mm)
- Weight: 52.8 lb (24 kg)
- Power: 700W max @ 120V
- IP Rating: IP65
- LED Refresh Rate: 3600 Hz (flicker-free for video)
What's In The Box
- Skyline fixture
- (2) Omega brackets
- Seetronic Edison to IP65 True1 power cable
- 3-pin DMX cable
- User manual
RASHA Skyline
(Rasha RP-SKYLN-BLK)
