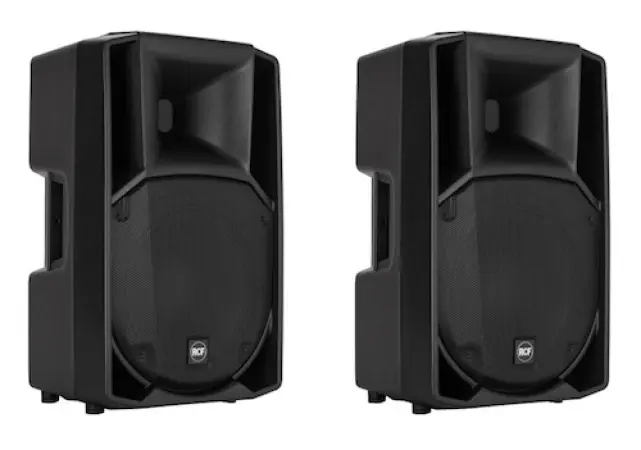

A pair of ART 712-A MK4
ACTIVE TWO-WAY SPEAKER
ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and speaker protections.
Features:
129 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1" Compression Driver, 1.75" v.c.
12" Woofer
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1", 1.75" v.c.
Woofer:12", 2.5" v.c.
INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:1600 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
CABINET
Cabinet Material:Composite PP
Hardware:2xM10 flying p .
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:637 / 25.0 mm/inch
Width:387 / 15.2 mm/inch
Depth:363 / 14.2 mm/inch
Net Weight:18 / 39.6 kg/lbs
