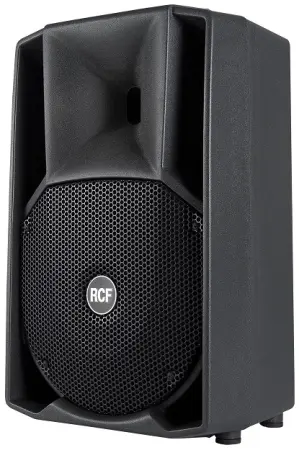

RCF ART412A MK2

RCF ART 412-A MK2 (RCF ART 412A MKII)

ART 412-A MK II is the optimum choice for live situations where full range, outstanding bass reproduction and extra vocal punch are required.

The high frequencies are precise and natural thanks to the compression driver with a 1” mylar dome in front of a low compression, optimised geometry, radial phase plug.

FEATURES:

800 Watt Peak, 400 Watt RMS digital bi-amplification
127 dB max spl
Wide dispersion 90 x 60 constant directivity horn
12" High power woofer, 2.5" voice coil
1" Mylar dome, high frequency driver
DSP processing, boost eq, soft limiter and protection
Xlr/jack input, xlr signal output

ACOUSTICAL SPECIFICATIONS:

Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:127 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1" 1.4" voice coil
Woofer:12" 2.5" voice coil

INPUT/OUTPUT SECTION:

Input signal:bal/unbal
Input connectors:xlr-jack
Output connectors:xlr

PROCESSOR SECTION:

Crossover frequencies:1800 Hz
Limiter:Fast limiter, RMS limiter
Controls:Flat, Boost

AMPLIFIER SPECIFICATIONS:

Total power:800 W PEAK
   High frequencies:200 W PEAK
   Low frequencies:600 W PEAK
Total power:400 W RMS
   High frequencies:100 W RMS
   Low frequencies:300 W RMS

CABINET:

Cabinet Material:Composite PP
Hardware:2 x M10 flying points
Handles:1 on top, 2 on sides
Pole Mount/Cap:yes
Grille:steel
Colour:Anthracite grey

PHYSICAL SPECIFICATIONS:

Height:637/25 mm/inch
Width:384/15.11 mm/inch
Depth:363/14.2 mm/inch
Net Weight:17.2/37.91 kg/lbs
