RCF C3110-126 (RCF C 3110 126)

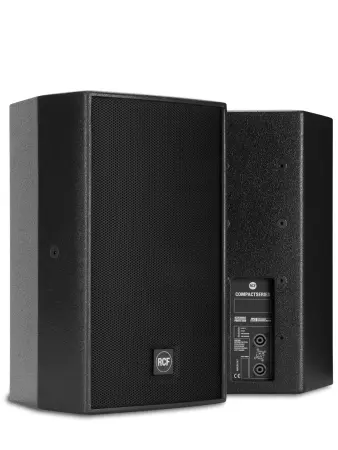

The C3110 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications.
Its compact size makes it ideal for low visibility side wall mounting.The high-frequency section is a constant directivity horn loaded to a 1” compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion.
The low-frequency transducer is a 10” woofer with a 2” voice coil.
FEATURES
120° x 60° CMD (Coverage Matching Design) constant directivity horn
Rotatable Horn System for horizontal cabinet mounting applications
HF driver AMCDP (Active Mosfet Compression Driver Protection)
LICC (Low Impedance Compensated Crossover) network
10 Suspension points
1 top pole mount, 1 bottom pole mount
ACOUSTICAL SPECIFICATIONS
Frequency Response -10 dB:67 Hz ÷ 20000 Hz
Max SPL @ 1m:128 dB
Horizontal coverage angle:120°
Vertical coverage angle:60°
Directivity index; Q:11
System Sensitivity:97 dB
Nominal Impedance:8 Ω
Power Handling:300 W
Peak Power Handling:1200 W
Recommended Amplifier:600 W
Protections:Dynamic
Crossover frequencies:2200 Hz
TRANSDUCERS
Compression Driver:1" HF driver, 1.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:25 W AES
Sensitivity:106 dB
Woofer:10" woofer, 2" voice coil
Nominal Impedance:8 Ω
Input Power Rating:250 W AES
Sensitivity:96 dB
INPUT SECTION
Input connector:Speakon NL4
Output connector:Speakon NL4
CABINET
Cabinet Material:15 mm birch plywood construction
Hardware:8 x M8 back, 2 x M10 side
Pole Mount/Cap:1 top, 1 bottom
Grille:custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
Color:Black
PHYSICAL SPECIFICATIONS
Height:500 / 19.68 mm/inch
Width:300 / 11.81 mm/inch
Depth:298 / 11.73 mm/inch
Net Weight:15.8 / 34.83 kg/lbs
