Powered PA Speaker

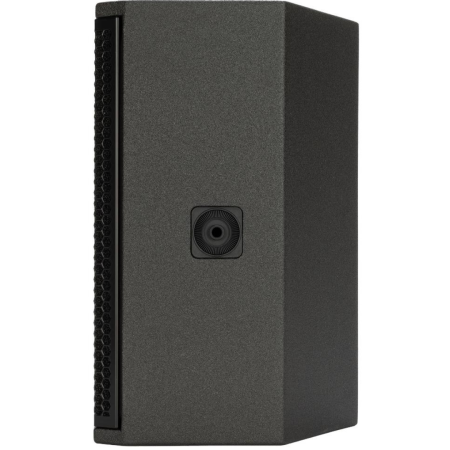

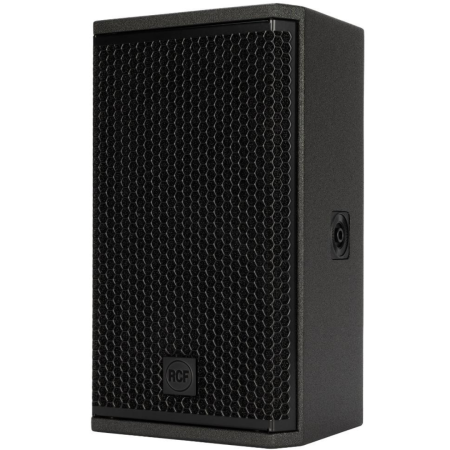

RCF KX 08-A is a high-output, compact touring-grade 2-way active speaker designed for precision sound reinforcement and rugged reliability. It features a weatherproof birch enclosure, integrated DSP, and networked control, making it ideal for professional sound engineers and technicians who demand flexibility, power, and remote monitoring in a small footprint.
RCF KX 08-A Competitive Differences
- 2000W Class-D amplifier with onboard DSP and RDNet network control
- 8” neodymium woofer and 1.75” PKX dome compression driver with rotatable waveguide
RCF KX 08-A Description
The

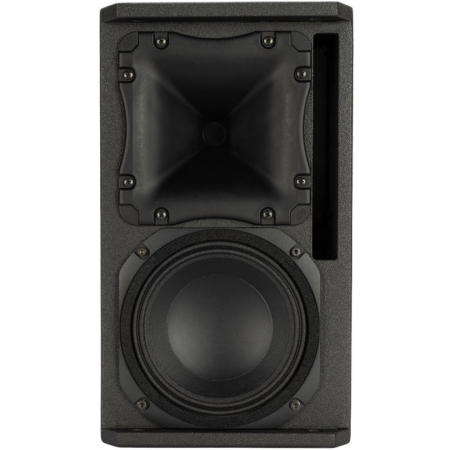

RCF KX 08-A is a compact powerhouse engineered for professional applications that require high SPL in a versatile and portable format. Its two-way point-source design features an 8” neodymium woofer and a neodymium compression driver with a rigid PKX dome, delivering articulate mids and crisp highs while maintaining exceptional durability.
At the heart of the system is a 2000W Class-D amplifier paired with advanced DSP including FiRPHASE and Bass Motion Control (BMC) processing. The result is a highly controlled, linear output that maintains fidelity at high volumes. Integrated RDNet control gives engineers real-time access to performance parameters, allowing remote monitoring of transducer status, temperature, limiter activity, and more.

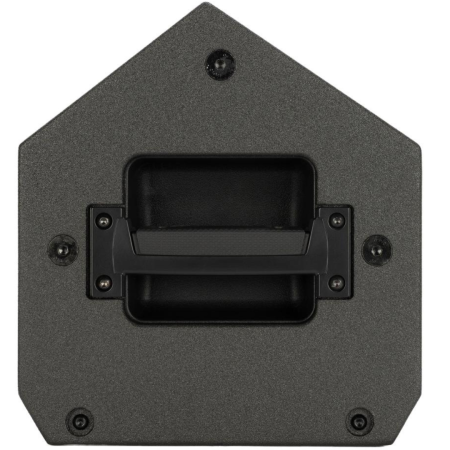

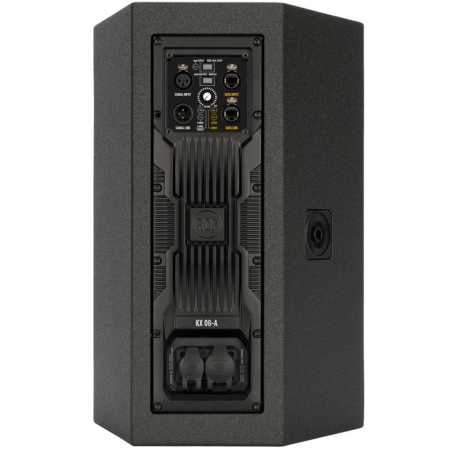

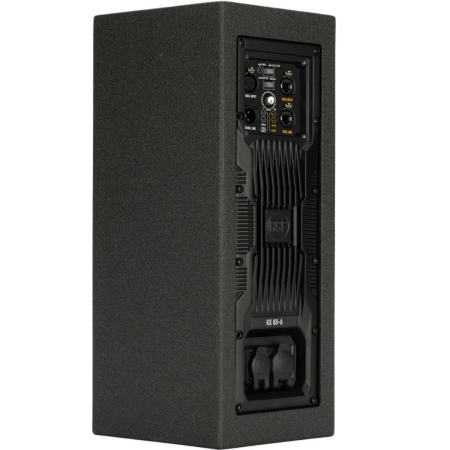

The KX 08-A is built to handle the rigors of the road, with a robust Baltic birch plywood enclosure coated in weather-resistant polyurea, reinforced internally for mechanical stress, and equipped with rugged die-cast handles. A convection-cooled machined aluminum heat sink ensures silent, reliable operation even in extreme conditions.
With its rotatable 90° x 70° horn and multiple mounting points, the KX 08-A adapts easily to flown, stacked, or pole-mounted setups. It’s a smart choice for touring professionals, rental companies, or permanent installs where space is tight but performance can’t be compromised.
Model Features
- 128 dB Max SPL for high-output applications
- 8” neodymium woofer with 2.5” voice coil
- 1.75” PKX dome neodymium compression driver
- Rotatable 90° x 70° True Resistive Waveguide horn
- 2000W two-channel Class-D amplifier with RDNet control
- DSP with FiRPHASE and Bass Motion Control (BMC)
- Waterproof polyurea-coated Baltic birch enclosure
- Silent convection cooling via machined aluminum rear panel
Model Specifications
- Max SPL: 128 dB
- Power Output: 2000W Peak (1400W LF, 600W HF)
- Frequency Response: 65 Hz – 20,000 Hz
- Coverage: 90° x 70° (rotatable)
- Crossover Frequency: 1400 Hz
- Inputs: XLR, RDNet Ethercon
- Outputs: XLR, RDNet Ethercon
- Power: powerCON TRUE1 TOP In/Out
- Cabinet: Baltic birch plywood with polyurea coating

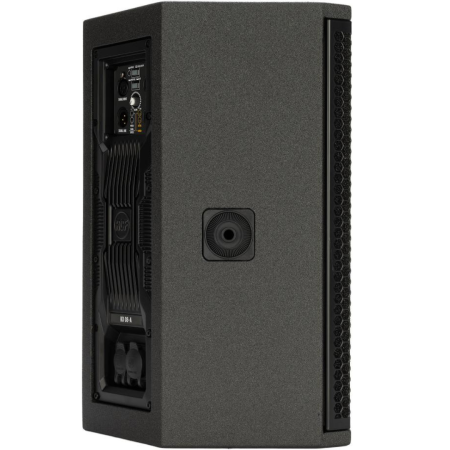

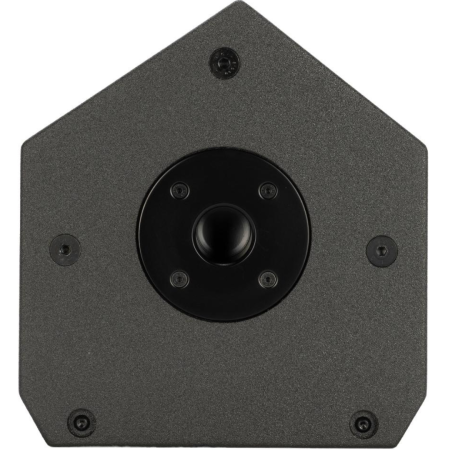

- Mounting: 3x M10 top/bottom, side pins, 35mm pole mount
- Dimensions: 17.72 x 10.24 x 11.24 in (450 x 260 x 285.4 mm)
- Weight: 24.25 lb (11 kg)
What's In The Box
- RCF KX 08-A speaker
- PowerCON TRUE1 TOP power cable
- Quick start guide
RCF KX 08-A
(RCF 13000895)
