RCF NX-L23a

- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

VIP Image

Get $603 back. Or Join VIP for up-front discounts.

*Discontinued

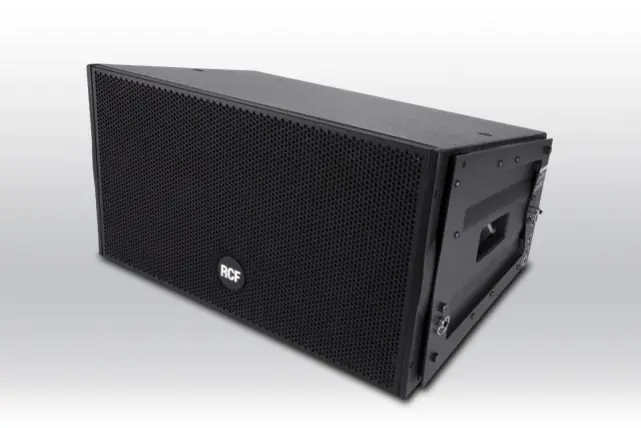

RCF NXL 23A (RCF NX L23A) Active Line Array Module

The RCF NX-L12-A is very compact, active, two-way line array loudspeaker module that delivers extraordinary power handling, clarity, flexibility and great sound in a compact, easy to handle and affordable package.

The 750 Watt Class-D Digipro amplifier module accurately matches the high quality analogue signal input board with precise, complex filter response that result in the natural, detailed reproduction of the best radiating designs.
The NX L23-A is the ideal choice when line array performance is needed and a fast and easy set up is a must.

Features
  • 750 Watt Digipro digital amplifier
  • 133 dB max spl
  • 100 x 15, Wide dispersion constant directivity angle
  • 12" woofer, high power neodymium 3.5" voice coil
  • 3 x 1" HF driver, titanium dome, neodymium 1.75" voice coil
  • PFC power factor correction
Acoustical Specifications
  • Frequency Response -3 dB: 60 Hz ÷ 20 kHz
  • Max SPL: 133 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: Max 15°
  • Compression Driver: 3 x 1" neo, 1.75" v.c.
  • Woofer: 12" neo, 3.5" v.c.
Input/Output Section
  • Input signal: bal / unbal
  • Input connectors::
  • Output connectors:: xlr
  • Input sensitivity: -2 dBu / +4 dBu
Processor Section
  • Crossover frequencies: 1300 Hz
  • Protections: Thermal, rms
  • Limiter: Soft peak limiter
  • Controls: Volume, hf correction cluster size
Amplifier Specifications
  • Total power: 750 W
  • High frequencies: 250 W
  • Low frequencies: 500 W
  • Cooling: Convection / foced
  • Connections: Powercon in / out
Cabinet
  • Cabinet Material: Balitc birch
  • Hardware: Arry side fittings
  • Handles: 2 side
  • Pole Mount/Cap: Yes
  • Colour: Blackk
Physical Specifications
  • Height: 346 / 13.62 mm/inch
  • Width: 659 / 25.94 mm/inch
  • Depth: 415 / 16.33 mm/inch
  • Net Weight: 28.5 / 62.83 kg/lbs
