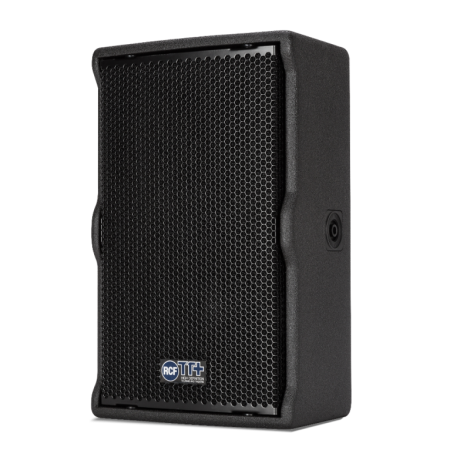

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.
RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
Touring & theatre performance
The innovative transducer design ensures extreme power-handling, making the TT 10-A the right choice for top demanding applications. The onboard DSP provides linear phase filters and crossover, system equalization, polarity control, fast limiter, RMS limiter and configuration control from the back panel or advanced management via RDNet.
Mutliple applications
Innovative quick fit bracket socket for easy set-up and stable rigging.

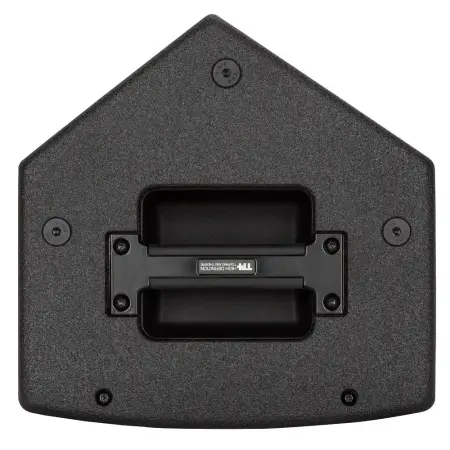

Pole mount, top and bottom M10 suspension points, quick fit bracket side sockets and a forged aluminum handle with rubber handgrip on top: the TT 10-A cabinet it is fully equipped for every application. One side of the cabinet presents a 35° angle, perfect for stage monitoring.
FEATURES:
130 dB SPL Max
1000W RMS, two-way Class-D amplifier
Rotatable 90° x 70° Constant Directivity Horn
Quick Fit Bracket Socket
FiRPHASE
10’’ neodymium Woofers, 2.5’’ voice coil
Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
RDNet Networked Management
60 ÷ 20000 Hz Frequency Range
SPECIFICATIONS:
ACOUSTICAL SPECIFICATIONS
Frequency Response:
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
TRANSDUCERS
Compression Driver:
1.0'' neo, 1.75'' v.c
Woofer:
10'' neo, 2.5'' v.c

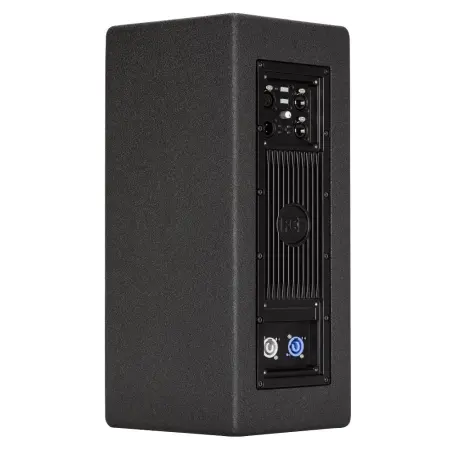

INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
900 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet:
Yes
POWER SECTION
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Baltic birch plywood
Hardware:
3X M10 TOP AND BOTTOM
2X PIN D.10 AND M10 SIDE
Handles:
1 TOP
Grille:
Steel
Color:
Black
SIZE
Height:
490 mm / 19.29 inches
Width:
306 mm / 12.05 inches
Depth:
299 mm / 11.77 inches
Weight:
11.5 kg / 25.35 lbs
SHIPPING INFORMATION
Package Height:
540 mm / 21.26 inches
Package Width:
350 mm / 13.78 inches
Package Depth:
350 mm / 13.78 inches
Package Weight:
15.6 kg / 34.39 lbs
RCF USA TT10-A-II
(RCF TT10-A)
