FBT ProMaxx 114A (pair) | 14in - 135.5dB
$2,799.00

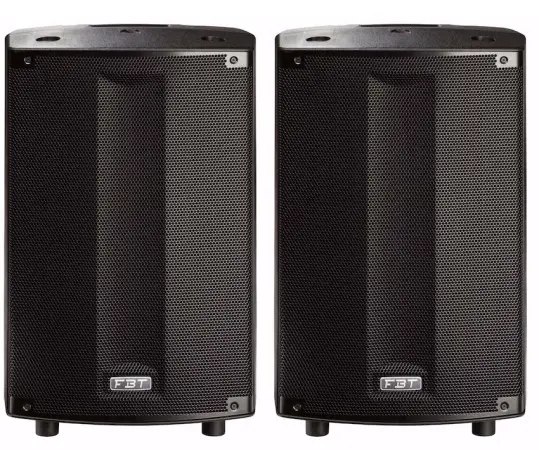

Package set of (2) FBT ProMaxx 114A - 14" Powered Speakers (135.5 dB)
The FBT ProMaxX 114a is an active PA speaker with 14-inch drivers and aims to combine a mixture os Italian style with a robust build quality and brilliant sounding audio.
The ProMaxX 114a comes equipped with world-class B&C compression driver technology plus the purposely built FBT amplifier with a switch-mode power supply at the heart of this speaker. A super efficient Class-D topology drives the 700W RMS that pushes an extremely low THD whereas the high frequencies are produced via a Class-H/AB driven 200W RMS offering only the highest quality audio.
A powerful digital signal processing platform (DSP) grants access to an intuitive graphical user interface on the back of the speaker that uses a menu driven system with single rotary control and push to select function.
The speaker comes with six pre-programmed FBT engineered EQ settings to cater to almost any application as well as having two slots to save your own EQ settings into each with five parametric EQs per slot. Other functions include mic/line selector, high-pass filter, a delay of 0-3.5m and low/mid/high tone setting as well as MAX-SPL and MAX-QUALITY limiter options.
The ProMaxX 114a is an extremely versatile speaker that can be used in a variety of situations and can be pole-mounted, wall-hung, suspended or deployed in an arrangement. All of this results in the most versatile ProMaxX to date.
6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximize speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasize full-bodied, low-mid frequencies.
Features:
2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
355mm (14") LF woofer with 75mm (3") voice coil, custom made for FBT
35mm (1.4") throat exit B&C HF magnet compression driver with 64mm (2.5”) voice coil
Frequency response from 45Hz to 20KHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 17.4kg
Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 45Hz-20KHz -6dB
Low Frequency woofer: 14 - 3 coil neodymium inch
High Frequency driver: 1.4 - 2.5 coil inch
Maximum SPL cont/peak: 127.5 / 135.5 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
AC Power requirements: IEC VA
Input connector: XLR with loop, RCA ST
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 402x644x345 / 15.8x25.4x13.6 mm/inch
Net Weight: 17.5/40.78 Kg/lb
Transport Dimension (WxHxD): 500x745x440 / 19.7x29.3x17.3 mm/inch
Transport Weight: 20.1/44.31 Kg/lb
