FBT ProMaxx 114a

14in - 135.5dB

$1,691.00

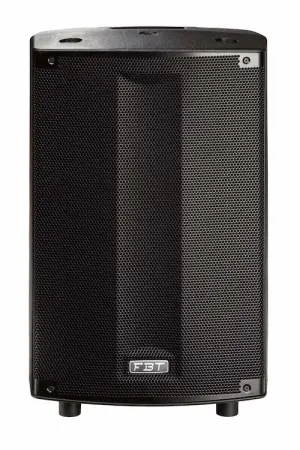

FBT ProMaxx 114a Active Speaker

The FBT ProMaxX 114a is an active PA speaker with 14-inch drivers that combines a mixture of Italian style with a robust build quality and brilliant sounding audio.

The FBT ProMaxX 114a comes equipped with world-class B&C compression driver technology plus the purposely built FBT amplifier with a switch-mode power supply at the heart of this speaker. A super efficient Class-D topology drives the 700W RMS that pushes an extremely low THD whereas the high frequencies are produced via a Class-H/AB driven 200W RMS offering only the highest quality audio.

A powerful digital signal processing platform (DSP) grants access to an intuitive graphical user interface on the back of the speaker that uses a menu driven system with single rotary control and push to select function.

The speaker comes with six pre-programmed FBT engineered EQ settings to cater to almost any application as well as having two slots to save your own EQ settings into each with five parametric EQs per slot. Other functions include mic/line selector, high-pass filter, a delay of 0-3.5m and low/mid/high tone setting as well as MAX-SPL and MAX-QUALITY limiter options.

The FBT ProMaxX 114a is an extremely versatile speaker that can be used in a variety of situations and can be pole-mounted, wall-hung, suspended or deployed in an arrangement. All of this results in the most versatile ProMaxX to date.

6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.

Order this FBT 2-way active speaker today!

ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximize speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasize full-bodied, low-mid frequencies.

Features:

2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display

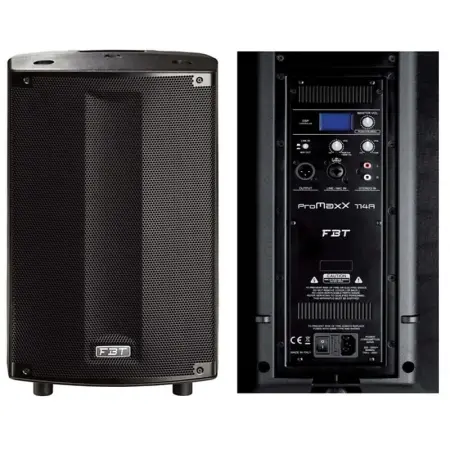

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
355mm (14") LF woofer with 75mm (3") voice coil, custom made for FBT
35mm (1.4") throat exit B&C HF magnet compression driver with 64mm (2.5”) voice coil
Frequency response from 45Hz to 20KHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 17.4kg
Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL

Specifications:

Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 45Hz-20KHz -6dB
Low Frequency woofer: 14 - 3 coil neodymium inch
High Frequency driver: 1.4 - 2.5 coil inch
Maximum SPL cont/peak: 127.5 / 135.5 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
AC Power requirements: IEC VA
Input connector: XLR with loop, RCA ST
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 402x644x345 / 15.8x25.4x13.6 mm/inch
Net Weight: 17.5/40.78 Kg/lb
Transport Dimension (WxHxD): 500x745x440 / 19.7x29.3x17.3 mm/inch
Transport Weight: 20.1/44.31 Kg/lb

FBT Promaxx 114a (FBT Promaxx114a)

    Review (1 of 3) FBT ProMaxx 114a | 14in - 135.5dB By roger d | Review3079 Points
    ( September 16, 2021 )

    The first thing about these speakers I will comment on is.....VERY LOUD!!!!....they kick arse. I had 4 JBL prx612's and I thought they were really good until I got these....the bottom end is good enough to use without a sub with a group of 200 or less...I use these in a DJ setup and also with live music...I actually had to turn the speakers down to -20db to balance my mixer with them because they are so loud...135db....when testing them in my driveway, a neighbor from a 1/4 away said he heard them....these speakers are not joke!!...they are worth every penny (dollar) you pay for....the reason I purchased them was on recommendation from Mike at KPODJ. All the components are made in Italy..NOT CHINA. I've been a DJ/Musician for over 35 years and these are the best speakers I've ever used....Don't second guess, GET THEM!!!


      Review (2 of 3) FBT ProMaxx 114a | 14in - 135.5dB By Samuel K | Review3079 Points
      ( October 21, 2018 )

      These speakers are incredible. They are loud, clear, and look amazing. I used them for a funeral reception of about 120 people and at 20% max volume you could clearly hear the music all the way across the hall. They were so loud I actually had to turn them down. The frequency range is perfect for my use but if you want anything below 50 Hz you will need a subwoofer. I love these speakers and they were a great investment. Also the build quality is pristine. Lastly, the EQ is easy to use and the speaker comes with several presets for a variety of signal inputs. Get these speakers.


        Review (3 of 3) FBT ProMaxx 114a | 14in - 135.5dB By Charles V | Review3079 Points
        ( July 02, 2017 )

        Wow! The first thing that hits you with these speakers is how clear they are. They overall sound is very balanced more "pro" than the usual deep "V" sound of some of the cheaper consumer stuff. I compared them side by side with my jbl srx815p speakers and while the JBLs handled the really deep bass (subwoofer range) a bit better, everything above that range was killed by the FBT. The FBT isn't weak with the bass either. 50hz and higher hits HARD and clear without breaking up. The midbass is especially well handled. The large high frequency driver also helps these things throw a long way. I can hear them clearly 50-80 yards away with a surprising punchy sound from that distance. My JBLs sounded more distorted at a similar volume. Pair these with a couple of good subs (I use the excellent FBT subline 18a) and you have a huge sound to play to much larger crowds. Did i mention that theee speakers are nearly half the weight, half the physical size, and cheaper than my srx815p speakers. These are an amazing deal. If you want to step up your sound from the generic consumer grade sound of most speakers then these might be your best option. Highly recommended.
