High-Powered 12-Inch Stage Monitor for Live Sound and Modeling Amps
The
RCF NX912-SMA is a rugged and versatile powered wedge monitor built to meet the demands of modern performers. With
2100W peak Class-D power, a
12" woofer, and
1.75" compression driver, this active monitor delivers
up to 130 dB SPL with full-range, flat-response (FRFR) sound. Optimized for horizontal or vertical deployment, it excels both as a stage monitor and as a full-range PA speaker when pole-mounted or paired with a subwoofer. Technologies like
Bass Motion Control (BMC) and
FiRPHASE DSP ensure ultra-precise and distortion-free output, while the
True Resistive Waveguide (TRW) provides even coverage throughout the venue.
RCF NX912-SMA Competitive Differences
- 2100W Peak Power Bi-Amp System: 1400W LF + 700W HF for crystal-clear dynamics and headroom
- FRFR (Full Range Flat Response): Perfect for use with amp modelers and multi-FX rigs
- True Resistive Waveguide: Advanced horn design ensures consistent 100° x 70° coverage
- FiRPHASE DSP: Zero-degree phase response for unmatched clarity and stereo imaging
- Bass Motion Control: Custom DSP algorithm enhances bass without sacrificing woofer stability
- Low-Noise Input Circuitry: Clean signal path for distortion-free sound at any level
- Tour-Ready Plywood Enclosure: Durable all-wood cabinet with steel grille and side/top handles
- PowerCON TRUE1 TOP Connectors: Rugged outdoor-ready power in/out for reliable touring use
RCF NX912-SMA Description
Designed for the modern stage, the
NX912-SMA is more than just a wedge monitor. With its flat frequency response, high-output amplifier, and advanced DSP, it can also serve as a neutral speaker for amp modelers, main PA use, or side fills. Its powerful 12" woofer paired with a 1.75" compression driver produces detailed mids and sparkling highs without harshness.
Built for demanding live environments, it features an extremely efficient Class-D amplifier, producing 2100W of peak output while staying cool via convection-based cooling (no fan). The cabinet is rugged and road-ready, with handles on the side and top, and a pole mount on the side for upright use.
With
FRFR capabilities, the NX912-SMA is the ideal monitor for guitarists and bassists using modeling systems, as it reproduces every detail of your tone with surgical accuracy. And with
TRW horn design, your audience or bandmates will hear the full mix, clearly and consistently.
NX912-SMA Features
- 2100W Class-D bi-amplification (1400W LF / 700W HF)
- 12" woofer with 2.5" voice coil
- 1.75" compression driver with reinforced Polyimide-Kapton dome
- Maximum SPL: 130 dB
- Flat frequency response: 50 Hz – 20,000 Hz
- True Resistive Waveguide with 100° x 70° coverage
- Bass Motion Control (BMC) woofer management algorithm
- FiRPHASE DSP filters for zero-phase distortion and optimal stereo imaging
- FRFR-ready: Full range flat response for modeling amps
- Combo XLR/TRS input, XLR output
- Soft limiter with thermal and RMS protection
- Pole mount socket (35 mm) on side for vertical use
- PowerCON TRUE1 TOP IN/OUT for rugged, tour-grade power connectivity
NX912-SMA Specifications
- Frequency Response: 50 Hz – 20,000 Hz
- Max SPL: 130 dB
- Coverage Angle: 100° (H) x 70° (V)
- Compression Driver: 1.75" v.c. with 1" exit
- Woofer: 12" with 2.5" voice coil
- Crossover Frequency: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Input Connectors: Combo XLR/Jack (balanced/unbalanced)
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Cooling: Convection
- Power Connections: PowerCON TRUE1 TOP IN/OUT
- Cabinet Material: Plywood

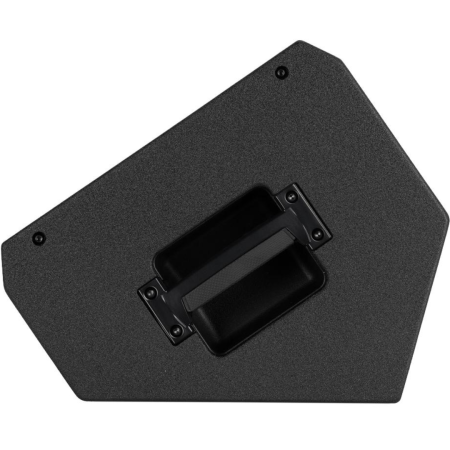

- Handles: 1 side, 1 top
- Pole Mount: 35 mm side socket
- Grille: Steel
- Color: Black
- Dimensions (H x W x D): 12.6" x 24.41" x 15.51" (320 x 620 x 394 mm)
- Weight: 44.09 lbs (20 kg)
- Shipping Dimensions: 26.57" x 16.73" x 14.57" (675 x 425 x 370 mm)
- Shipping Weight: 50.71 lbs (23 kg)
