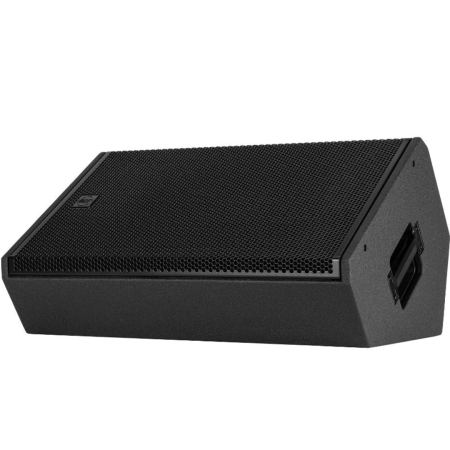

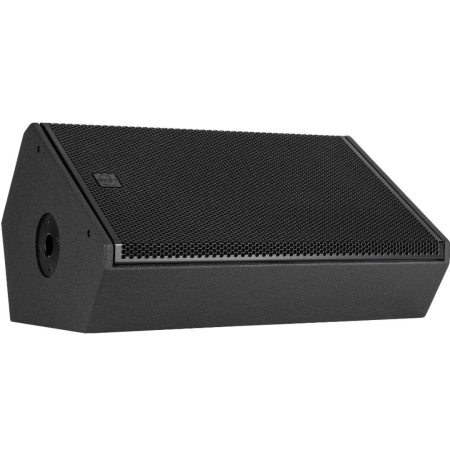

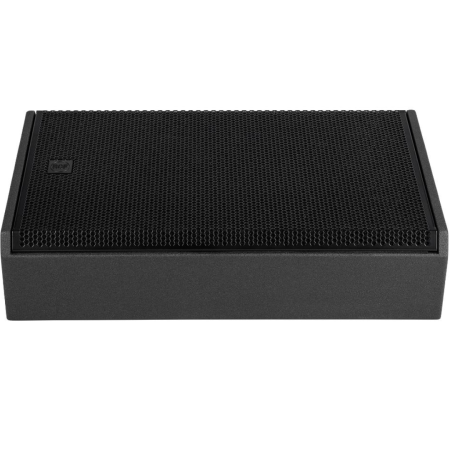

High-Output 15-Inch Powered Stage Monitor for Live Sound and Amp Modeling
The
RCF NX915-SMA is a powerhouse 15" active wedge monitor delivering pristine, full-range audio with extreme SPL capabilities. With
2100W of peak Class-D bi-amplification,
Bass Motion Control, and
FiRPHASE DSP, this monitor excels in both
horizontal and vertical deployments. Whether you're a sound provider, live musician, or guitarist using a multi-FX amp modeler, this FRFR-ready monitor ensures a neutral, distortion-free stage experience at up to
131 dB SPL.
RCF NX915-SMA Competitive Differences
- Massive 15" Woofer: Delivers punchy low-end with accurate mid-bass reproduction
- 2100W Peak Class-D Amplifier: 700W HF + 1400W LF for dynamic, distortion-free output
- FRFR (Full Range Flat Response): Ideal for amp modelers and direct guitar setups
- Bass Motion Control (BMC): Eliminates need for high-pass filtering while enhancing woofer linearity
- FiRPHASE DSP: Delivers phase-aligned, transparent sound with ultra-low latency

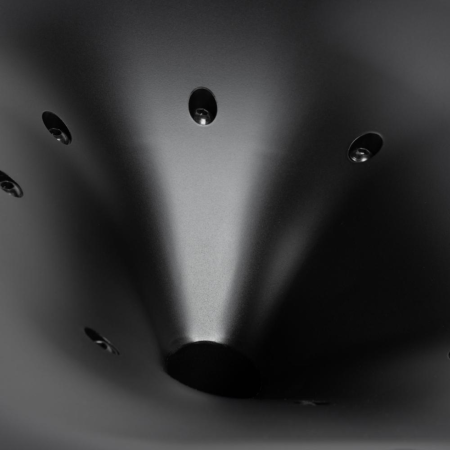

- True Resistive Waveguide (TRW): 100° x 70° constant directivity horn for consistent coverage
- Heavy-Duty Plywood Cabinet: Road-ready with integrated handles and pole mount
- PowerCON TRUE1 TOP: Rugged, sealed connectors with IP protection and UV resistance
RCF NX915-SMA Description
Whether you're running it as a stage wedge, main PA speaker, or paired with a subwoofer, the

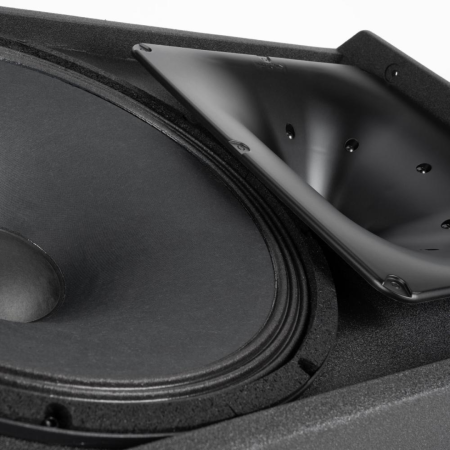

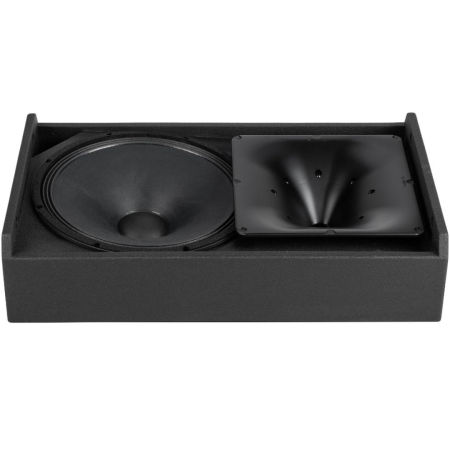

NX915-SMA adapts to your live sound needs with ease. The 15" woofer, combined with a high-performance 1.75" compression driver and RCF's proprietary TRW waveguide, offers rich, detailed coverage at high volume without distortion.
Inside the tour-ready plywood enclosure is a 2100W Class-D amplifier—50% more powerful than its predecessors—delivering fast transients, deep bass, and balanced mids. Thanks to
FRFR tuning, it’s also a perfect fit for electric guitar and bass players using amp simulators.
RCF's
BMC algorithm manages low-end without phase-warping high-pass filters, maintaining signal integrity and enhancing transducer durability. The
FiRPHASE filtering ensures uniform sound distribution with minimal latency. Whether used on a pole, as a floor monitor, or in an install, this speaker brings next-level clarity, reliability, and versatility.
NX915-SMA Features
- 2100W Class-D bi-amplification (1400W LF / 700W HF)
- 15" woofer with 2.5" voice coil for extended low-end performance
- 1.75" compression driver with Polyimide-Kapton dome and redesigned phase plug
- FRFR-ready for guitar/bass modelers and clean monitoring
- Maximum SPL: 131 dB
- Frequency response: 45 Hz – 20,000 Hz
- Bass Motion Control (BMC) DSP for advanced woofer management
- FiRPHASE technology for transparent sound with zero-phase distortion
- True Resistive Waveguide for 100° x 70° constant coverage
- Combo XLR/TRS input, XLR output
- PowerCON TRUE1 TOP IN/OUT connectors
- Tour-grade plywood enclosure with steel grille

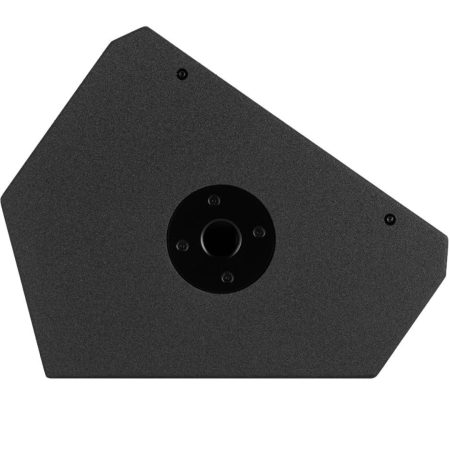

- 35 mm pole mount socket (side-mounted)
NX915-SMA Specifications
- Frequency Response: 45 Hz – 20,000 Hz
- Max SPL: 131 dB
- Coverage Angle: 100° (H) x 70° (V)
- Compression Driver: 1.75" v.c. with 1" exit
- Woofer: 15" with 2.5" voice coil
- Crossover Frequency: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Input Connectors: Combo XLR/Jack (balanced/unbalanced)
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Cooling: Convection
- Power Connections: PowerCON TRUE1 TOP IN/OUT
- Cabinet Material: Plywood

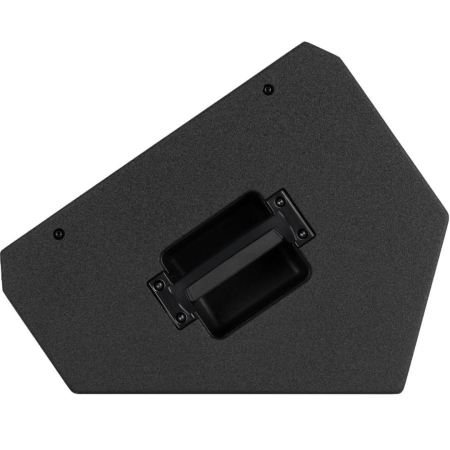

- Handles: 1 top, 1 side
- Pole Mount: 35 mm insert
- Grille: Steel
- Color: Black
- Dimensions (H x W x D): 14.07" x 27.76" x 17.98" (357.3 x 705 x 456.6 mm)
- Weight: 52.47 lbs (23.8 kg)
- Shipping Dimensions: 29.33" x 19.88" x 16.73" (745 x 505 x 425 mm)
- Shipping Weight: 60.63 lbs (27.5 kg)
