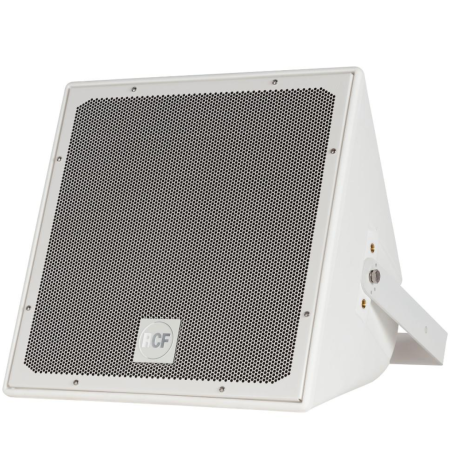

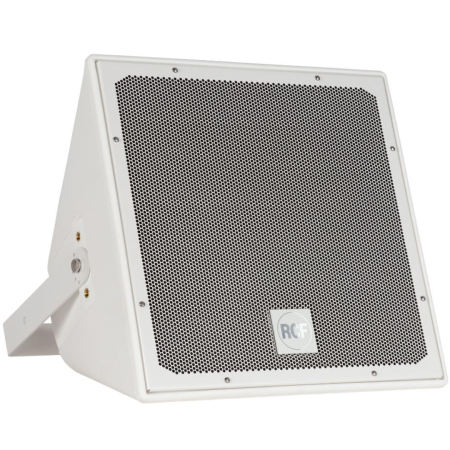

Weatherproof 15" Coaxial Speaker for Stadiums & Outdoor Installations
The
RCF P 6215-W is a high-output, weather-resistant coaxial two-way loudspeaker designed for long-throw applications in large outdoor or indoor venues. With a 15" neodymium woofer, 2.5" compression driver, and 600W RMS handling, it delivers up to 134 dB SPL with 60° x 60° consistent coverage. Built to IP55 standards with a rotomolded cabinet and stainless steel mounting hardware, the P 6215-W is ideal for stadiums, arenas, theme parks, and public address systems.
RCF P 6215-W Competitive Differences
- 600W RMS power handling and 134 dB max SPL for long-throw performance
- 15" neodymium woofer with 3.0" voice coil for deep, controlled bass
- 1.3" neodymium compression driver with 2.5" diaphragm for high-frequency clarity
- Coaxial design with CMD horn for even 60° x 60° coverage
- Fully weatherproof IP55 cabinet with UV protection for outdoor installations
- Dynamic Active Mosfet Driver Protection (AMCDP) for long-term durability
- Rotomolded low-density polyethylene enclosure with aluminum grille

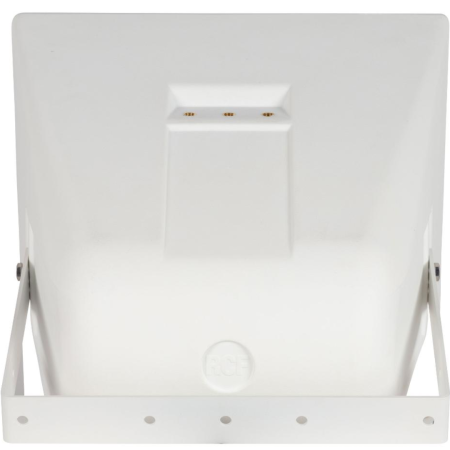

- Supplied with corrosion-resistant AISI 316L stainless steel U-bracket and spacers
- 12 x M10 suspension points for flexible mounting configurations
- Rotatable logo plate for vertical or horizontal positioning
RCF P 6215-W Description
The
RCF P 6215-W brings long-throw clarity and weatherproof reliability together in a coaxial speaker designed for the most demanding installed sound environments. Its coaxial design ensures phase coherence and uniform sound coverage, while the 600W RMS power handling enables it to project with authority across wide-open spaces. With 134 dB SPL output and a wide frequency response from 75 Hz to 20 kHz, the P 6215-W is built for intelligibility, fidelity, and power.
The speaker features RCF’s proprietary CMD (Coverage Matching Design) horn, delivering 60° x 60° directivity to maintain consistency between the HF and LF transducers. It also includes a high-efficiency LICC crossover with a low crossover point (1100 Hz) for superior speech intelligibility and transient response. AMCDP technology protects the driver from damage under extreme conditions.
Designed for harsh outdoor conditions, the P 6215-W’s cabinet is crafted from rotomolded low-density polyethylene and meets IP55 protection standards. It’s equipped with 12 M10 brass inserts for rigging, along with a stainless steel U-bracket and mounting spacers for flexible installation. Whether mounted individually or in array configurations, it’s a trusted solution for outdoor concerts, stadium sound systems, and fixed public address installations.
P 6215-W Features
- 600W RMS power handling / 2400W peak
- 15" coaxial neodymium woofer with 3.0" voice coil
- 1.3" neodymium compression driver with 2.5" diaphragm
- Max SPL: 134 dB @ 1 meter
- Frequency Response: 75 Hz – 20,000 Hz
- Constant directivity 60° x 60° CMD horn
- LICC crossover with low phase shift and fast transient response
- Dynamic Active Mosfet Driver Protection (AMCDP)
- Rotomolded weather-resistant PE enclosure with UV protection
- Powder-coated aluminum grille with water-repellent backing
- 12 x M10 suspension points for custom rigging
- 316L stainless steel U-bracket and 90° mounting spacers included
- Rotatable logo for vertical or horizontal orientation
P 6215-W Specifications
- Frequency Response (-10 dB): 75 Hz – 20,000 Hz
- Max SPL: 134 dB
- Sensitivity: 100 dB
- Nominal Impedance: 8 Ω
- Power Handling: 600 W RMS / 2400 W Peak
- Crossover Frequency: 1100 Hz
- Compression Driver: 1.3" neodymium, 2.5" voice coil
- Woofer: 15" coaxial neodymium, 3.0" voice coil
- Coverage Angle: 60° H × 60° V
- Directivity Index (Q): 13
- Protection Circuit: Active Mosfet
- Input Connector: Sealed Neoprene Cable
- Cabinet Material: UV-resistant rotomolded PE
- Grille: Powder-coated aluminum with water-repellent mesh
- Mounting Hardware: 12 x M10 inserts, AISI 316L U-bracket + spacers
- Color Options: Grey or White (RAL 9003)
- IP Rating: IP55
- Dimensions (H × W × D): 18.23 × 18.23 × 17.05 in (463 × 463 × 433 mm)
- Weight: 37.48 lbs (17 kg)
- Shipping Dimensions (H × W × D): 20.43 × 19.25 × 19.25 in (519 × 489 × 489 mm)
- Shipping Weight: 47.18 lbs (21.4 kg)
RCF P6215-W
(RCF P 6215-W)
