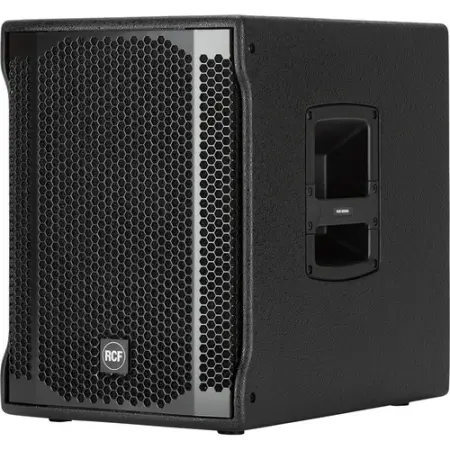

RCF Sub 702 AS MK2 | 12in - 129dB
$1,099.00
12" Active Subwoofer
Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.
FEATURES:
1400 Watt Digital Amplifier
12" Woofer, bass reflex housing
Stereo crossover
Switchable crossover frequencies
Phase-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
SPECIFICATIONS:
Frequency Response -3 dB: 40 Hz ÷ 120 Hz
Max SPL: 129 dB
Woofer: 12", 2.5" v.c.
INPUT/OUTPUT SECTION
Input connectors: Stereo XLR
Output connectors: Stereo XLR
Input sensitivity: -2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies: 80-110 Hz Hz
Protections: thermal, rms
Limiter: soft limiter
Controls: Volume, EQ, phase, xover
AMPLIFIER SPECIFICATIONS
Total power: 1400 W PEAK
Low frequencies: 1400 W PEAK
Total power: 700 W RMS
Low frequencies: 700 W RMS
Cooling: convection
Connections: VDE connector
CABINET
Cabinet Material: Baltic birch plywood
Hardware: Pole mount
Handles: 2 side
Pole Mount/Cap: yes
Grille: Steel
Colour: Black
PHYSICAL SPECIFICATIONS
Height: 487/19.17 mm/inch
Width: 354/13.94 mm/inch
Depth: 498/19.61 mm/inch
Net Weight: 46 lbs
