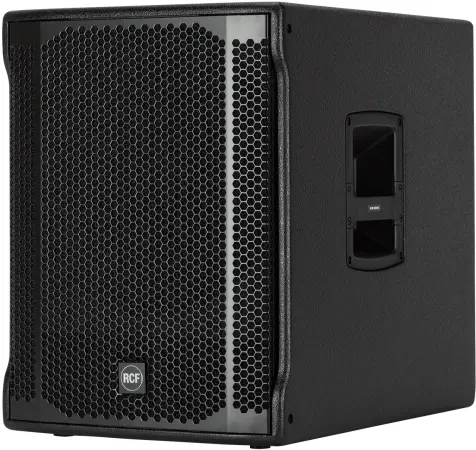

RCF SUB705AS MKII

SUB 705-AS II
ACTIVE SUBWOOFER

SUB 705AS II
The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.

FEATURES
1400 Watt Digital Amplifier
15" Woofer, bass reflex housing
Stereo crossover
Switchable crossover frequencies
Phase-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 120 Hz
Max SPL:131 dB
Woofer:15", 3.0" v.c.
INPUT/OUTPUT SECTION
Input connectors:Stereo XLR
Output connectors:Stereo XLR
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:80-110 Hz Hz
Protections:thermal, rms
Limiter:soft limiter
Controls:Volume, EQ, phase, xover
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
   Low frequencies:1400 W PEAK
Total power:700 W RMS
   Low frequencies:700 W RMS
Cooling:convection
Connections:VDE connector
CABINET
Cabinet Material:Baltic birch plywood
Hardware:Pole mount
Handles:2 side
Pole Mount/Cap:yes
Grille:Steel
Colour:Black
PHYSICAL SPECIFICATIONS
Height:568/22.36 mm/inch
Width:430/16.93 mm/inch
Depth:595/23.43 mm/inch
Net Weight:28.0/50.70 kg/lbs

POWERFUL & COMPACT BASS REFLEX SUBWOOFER WITH INTEGRATED DSP

SPL – HIGH POWER OUTPUT
Superior and incredible SPL levels guaranteed also in open air and at long distance.

INTEGRATED DSP
The built-in digital stereo crossover with adjustable crossover frequency allows SUB 705-AS II to be easily and quickly set up as a sub-satellite speaker system.

COMPATIBLE WITH RCF PROFESSIONAL SPEAKERS
The SUB 705-AS II is designed to integrate seamlessly into RCF professional speakers. The bass reflex design guarantees a deep, linear power response while the 3’’ voice coil design woofer offers the minimum of power compression. SUB 705-AS II is the perfect match for 10”, 12” or 15” satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.

DEEP BASS SOUND
Two selectable equalisations to experience the extremely deep response and precise low frequency control.

RCF SUB 705AS MK2 (RCF SUB705 AS MKII)
