Compact RF Splitter/Combiner for Wireless Audio Setups
The
RF Venue 2x1SPLIT is a versatile, passive RF signal splitter/combiner designed specifically for professional wireless microphone and in-ear monitor systems. With its compact size, rugged build, and BNC connectivity, this tool is ideal for combining multiple antennas, distributing RF signals, or tapping into your spectrum analyzer for real-time monitoring and system optimization.
RF Venue 2x1SPLIT Competitive Differences
- Dual-direction functionality: combine two antennas into one output or split one input into two outputs
- Compatible with all major wireless microphone and IEM systems
- Passes 12V DC through R1 channel for active antennas or powered devices
- Ideal for creating distributed antenna systems or expanding RF coverage
- Compact and lightweight design for easy integration in any rig
RF Venue 2x1SPLIT Description
The
2x1SPLIT from RF Venue is a passive 2-way RF splitter/combiner designed for professional use in wireless audio applications. Whether you're building an 8-channel in-ear monitor (IEM) combiner, extending an RF distribution system, or analyzing signals via a spectrum analyzer, the 2x1SPLIT delivers flexibility, reliability, and performance.
Its BNC connectors and 50Ω impedance make it fully compatible with most wireless microphone and IEM systems. The unit supports frequencies from 10 MHz to 1,000 MHz and maintains signal quality with minimal 2 dB insertion loss and a 20 dB isolation rating.
Additionally, when used as a combiner, the R1 channel passes 12V DC—perfect for active antennas and inline boosters. Lightweight and compact, this unit is a must-have for RF techs, engineers, and touring professionals who require dependable signal routing options.
2x1SPLIT Features
- Passive 2-way RF signal splitter/combiner
- One BNC antenna input and two BNC outputs, or vice versa
- R1 channel passes 12V DC when provided via coax
- Ideal for RF distribution and system expansion
- Compatible with all major wireless mic and IEM brands
2x1SPLIT Specifications
- Frequency Range: 10–1,000 MHz
- VSWR: 1:2
- Impedance: 50Ω
- Isolation: 20 dB
- Insertion Loss: 2 dB
- Max Power (ANT input): 30 dBm
- Max Power (R1 & R2 outputs): 26 dBm
- Power (for DC pass-through use): 12V DC, 100mA
- Connectors: 3 x BNC female
- Dimensions: 3” x 2” x 1” (72.2 x 54.9 x 23.6 mm)
- Weight: 2.2 oz (62.6 g)
Note: The 2x1SPLIT is passive and does not require power unless passing DC to active devices.

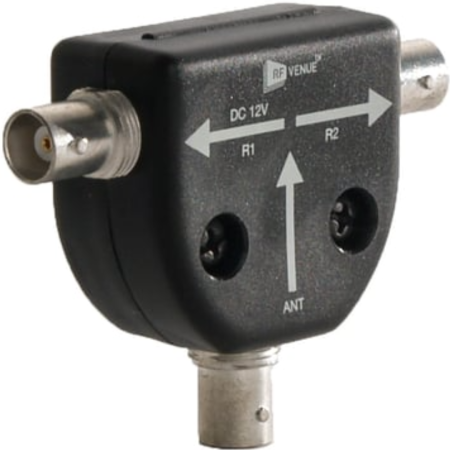

RF VENUE 2x1SPLIT
(RF Venue 2x1-SPLIT)
