Rolls RM169
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

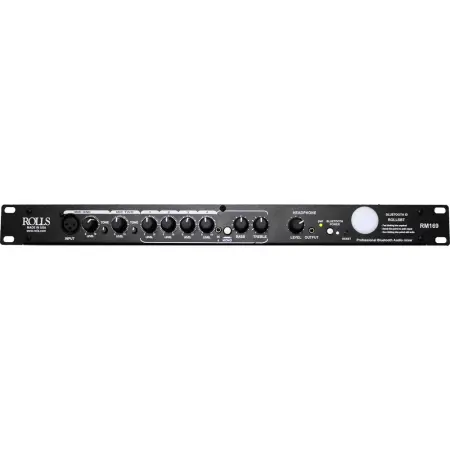

The ROLLS RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.
Features:
Two XLR microphone inputs (front-panel Mic 1 is parallel to the Mic 1 on the rear)
Individually switchable phantom power
Four stereo source inputs
Four RCA inputs
One front-panel stereo 3.5mm
One 1/4" TRS mic insert jack
Stereo RCA and XLR outputs
Headphone output on front panel with volume control
Level control for Bluetooth input signal
Specifications:
Input Impedance:
Mic: 600 Ohms XLR balanced
Source: 22K Ohms RCA
Mic Insert: 22K Ohms 1/4" TRS insert
Max Input Level:
Mic: -14 dBV Mic level
Source: 24 dBV
Headphone Output Impedance: >8 Ohms
Total In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm
Phantom Power: +15 VDC
Output Level: +17 dBV max
Output Impedance: 100 Ohms Balanced
Max Gain:
Mic: 60dB
Source: 26dB
Tone Controls:
±12 dB 100Hz Bass
±12 dB 11kHz Treble
Noise Floor: -80dB
THD: <.025%
S/N Ratio: 96dB
Dimensions: 19 x 1.75 x 4 (48.3 x 4.5 x 10cm)
Weight: 5Lbs (2.3kg)
