Sennheiser EW 135P G4 (Band A: 516-558)
$649.00

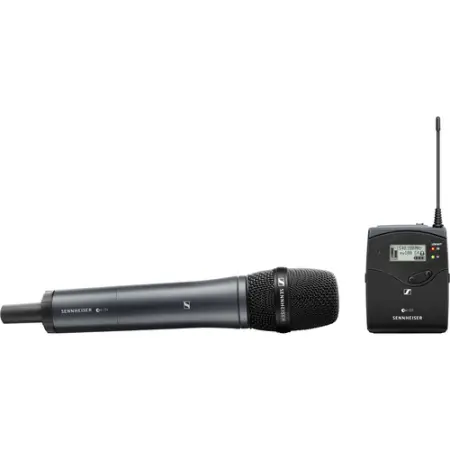

Sennheiser EW 135P G4 A: 516 to 558 MHz
The ew 135P G4 from Sennheiser is part of their acclaimed evolution wireless G4 series. It's a rugged, all-in-one wireless system delivering Broadcast-quality sound, and featuring the highest versatility for use on your video sound and field recording applications; a robust wireless microphone system that – in addition to excellent sound quality – offers simple mounting and ease of use.
It's the easiest wireless solution for moderators or reporters. The rugged e 835 microphone resists any bad weather or field condition, while the EK 100 G4 receiver is easily fitted to any camera using the included mounting adapter. It's available in 3 versions, based upon operating frequency.
Includes:
(1) EK 100 G4 camera receiver
(1) SKM 100 G4 handheld transmitter
(1) MMD 835-1 microphone head
(1) MZQ 1 microphone clamp
(4) AA batteries
(1) CA 2 camera adapter
(1) CL 1 3.5 mm jack cable
(1) CL 100 XLR to 3.5 mm jack adapter cable
(1) Quick guide
(1) Safety guide
(1) Manufacturer declaration sheet
Features
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time
Specifications:
EK 100 G4 Receiver
Dimensions: Approx. 82 x 64 x 24mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (including batteries) approx. 160 g
Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio: = 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: (2) AA batteries, 1.5 V or BA 2015 accupack
Current consumption:
at nominal voltage: typ. 180 mA
with receiver switched off: = 25 µA
Adjacent channel rejection: = 65 dB
Intermodulation attenuation: = 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 1.6 µV for 52 dBA eff S/N
Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBµV
Temperature Range: -10° C to +55° C
Receiver Principle: Adaptive diversity
Blocking: = 70 dB
SKM 100 G4 Handheld Transmitter
Dimensions: Approx. Ø 50 x 265mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (incl. batteries) approx. 450 g
Signal-to-noise ratio: = 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: (2) AA batteries, 1.5 V or BA 2015 accupack
Current consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Input impedance: 40 kOhms
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10° C to +55° C
Frequency stability: = ±15 ppm
