Evolution Wireless Digital Handheld System with e835 Mic Capsule
For over 20 years Sennheiser's Evolution Wireless has allowed performers of every type to roam free. The next logical step in that Evolution is the EW-D series, delivered just when we need to roam more than ever!

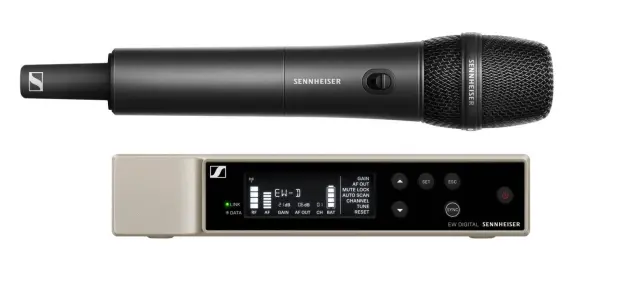

The EW-D-835-S is a receiver and handheld transmitter set with a Sennheiser 835 microphone module that delivers pure digital wireless audio free from noise, interference, and annoying static bursts. The system's automated setup makes for quick easy implementation with little effort. A dedicated mobile app eschews deep menus giving users a convenient familiar way to operate and change settings.
The renowned e 835 microphone module has a cardioid pickup pattern that rejects sound from the rear and sides to deliver intimate highly intelligible vocals, even on loud stages. Whether speaking or singing, you know they'll hear every word.
With over 2,200 selectable frequencies you're never out of range or out of touch. Speaking of range, the EW-D-835-S' 134 dB dynamic range means they'll hear everything you intend, from a whisper to a scream. The rugged design of the EW-D SKM-S transmitter means your system will keep up with you night in, and night out. Operating up to 12 hours per charge when used with the Li-ion battery pack (sold separately) or 8 hours on a pair of AA batteries, you can be sure the show will go on, and on!
Sennheiser EW-D-835-S Includes:
EW-D EM rack receiver
EW-D SKM-S handheld transmitter
MMD 835 microphone module
MZQ 1 microphone clamp
2 rod antennas
Power supply with country adapters
Rackmount set
4 rubber feet
Quick guide
Safety guide
Manufacturer declaration sheet
Sennheiser EW-D-835-S Features:
Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
56 MHz Bandwidth will allow for up to 90 channels
Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
Sennheiser EW-D-835-S Specifications:
Audio link frequency ranges
Q1-6: 470.2 - 526 MHz
R1-6: 520 - 576 MHz
R4-9: 552 - 607.8 MHz
S1-7: 606.2 - 662 MHz
S4-7: 630 - 662 MHz
S7-10: 662 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
Input voltage: 11 - 13 V ⎓
Input current: ≤ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
EW-D SKM-S Handheld Transmitter
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70
rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power: (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions: (ø x l) 50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Weight (without batteries): approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
MMD 835 Microphone Module
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
Sennheiser EWD 835-S Set
(Sennheiser EWD835-S Set w/ e835 Mic Capsule)
