Digital Wireless Microphone System for Vocalists and Presenters
The
Sennheiser EW-D SKM-S Base Set (Q1-6) is a versatile and robust digital UHF wireless microphone system ideal for live vocals, speaking engagements, and installations. With extended dynamic range, low latency, and intuitive app-based control, it delivers professional-grade wireless performance in any setting.
Sennheiser EW-D SKM-S Base Set (Q1-6) Competitive Differences
- 134 dB dynamic range—preserves detail with no need for sensitivity adjustment
- Smart Assist App for seamless setup and remote control via Bluetooth® Low Energy
- Auto scan and equidistant frequency spacing for quick, reliable multi-channel operation
- Digital transmission in the UHF spectrum offers improved range, reliability, and scalability
- 56 MHz bandwidth enables up to 90 usable channels with 2,240 selectable frequencies
- Rechargeable battery compatible (BA 70) for up to 12 hours of operation (AA batteries up to 8 hours)
Sennheiser EW-D SKM-S Base Set (Q1-6) Description
The

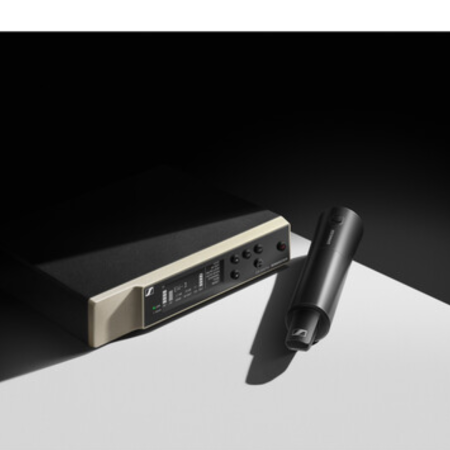

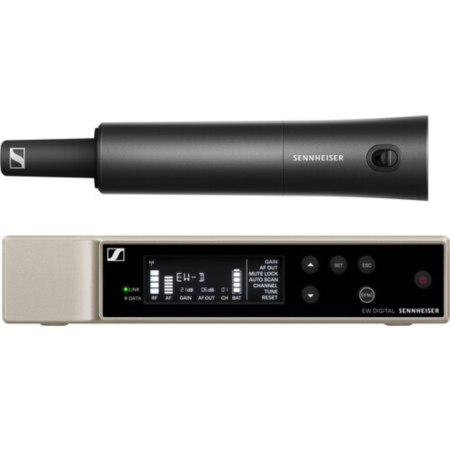

EW-D SKM-S Base Set is part of Sennheiser's Evolution Wireless Digital series, built for vocalists, performers, and speakers demanding flexibility, reliable signal transmission, and exceptional audio quality. The system includes the EW-D EM rackmount receiver and EW-D SKM-S handheld transmitter, compatible with a wide range of Sennheiser Evolution wireless microphone capsules.
Using digital UHF transmission, the system eliminates intermodulation distortion, allowing channels to be spaced evenly every 600 kHz for optimal spectrum efficiency. Paired with the Smart Assist App, users can easily set up, manage, and monitor their wireless systems via BLE (Bluetooth Low Energy) from mobile devices.
With a 1.9 ms ultra-low latency and 134 dB dynamic range, the EW-D SKM-S ensures studio-quality audio in any environment—from small venues to large stages.
EW-D SKM-S Base Set Features
- Digital UHF wireless system with handheld transmitter and rackmount receiver
- Wide 56 MHz tuning range (470.2 – 526 MHz for Q1-6)
- Auto-scan and equidistant frequency spacing for simple setup
- Smart Assist App for wireless control via Bluetooth LE
- Selectable frequency resolution: 2,240 steps
- Selectable mic capsules (compatible with Evolution series heads)
- Compact 1/2-rack receiver design with full metal housing
- Includes rackmount kit, antennas, mic clamp, power supply, and adapters
EW-D SKM-S Base Set Specifications
- Frequency Range: 470.2 – 526 MHz (Q1-6)
- Audio Frequency Response: 20 Hz – 20 kHz (-3 dB)
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Bluetooth LE Frequency: 2402 – 2480 MHz
- Transmitter Power (Audio): 10 mW ERP
- Transmitter Dimensions (w/ capsule): 1.97" x 10.55"
- Receiver Dimensions: 8.35" x 1.73" x 7.44"
- Receiver Output Level: Max 18 dBu
- Power Supply: 2 AA batteries or optional BA 70 Li-ion pack
- Operating Time: Up to 8 hours (AA), up to 12 hours (BA 70)
- Set Weight (Packaged): 6.39 lbs (2.9 kg)
What's In The Box
- EW-D EM rackmount receiver
- EW-D SKM-S handheld transmitter
- MZQ 1 microphone clamp
- 2 rod antennas
- Power supply with international adapters
- Rackmount kit
- 4 rubber feet
- Quick guide
- Safety guide
- Manufacturer declaration sheet
Sennheiser EW-D SKM-S Base Set (Q1-6)
(Sennheiser 508760-U)
