Name: Sennheiser XSW-D Instrument Base Set
Brand: Sennheiser
SKU: XSW-D Instrument Base Set
Price: 349 USD
Availability: InStock

Sennheiser XSW-D Instrument Base Set

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.

FEATURES:

One touch ease-of-use

2.4 GHz digital transmission for worldwide operation

75m range (250ft) in optimal conditions

Up to 5 hours battery life on a single charge

Switch between multiple transmitters linked to one receiver

Configure any combination of transmitters and receivers

Mute from either transmitter or receiver

SPECIFICATION:

Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion
< 0.1 %

Charging time
typ. 3 h

Audio output
max. 12 dBu

Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)

Signal-to-noise ratio
≥ 106 dB

Operating time
up to 5 h

Modulation
GFSK with TDMA

Battery Specification
Li-Ion

Capacity
850 mAh

Codecs
aptX® Live

Frequency range
2,400 - 2,483.5MHz

Max. Input voltage
typ. 5.0 V

Transmission power
max. 10 mW

Voltage
3.7 V

Operating relative humidity
95 % (non-condensing)

Latency
< 4 ms

Temperature Range
0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz

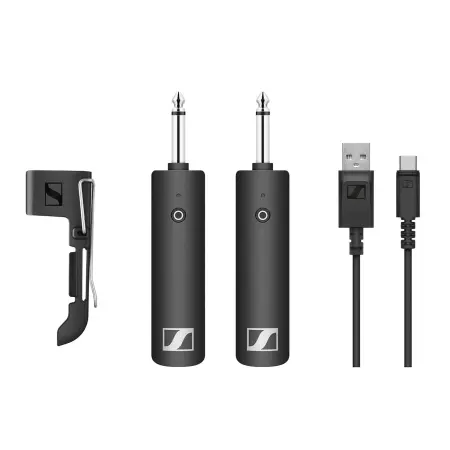

What's in the Box

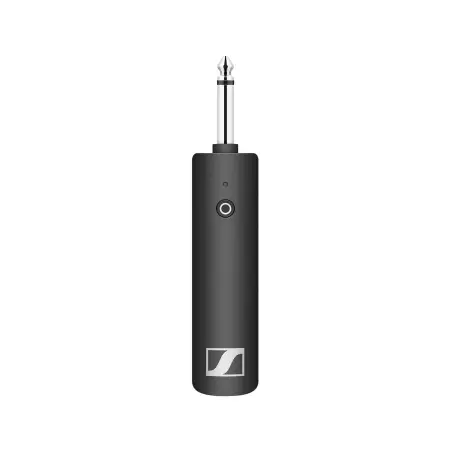

XSW-D 6.3mm (1/4”) transmitter
XSW-D 6.3mm (1/4”) receiver
Extension cable 6.3mm (1/4“)

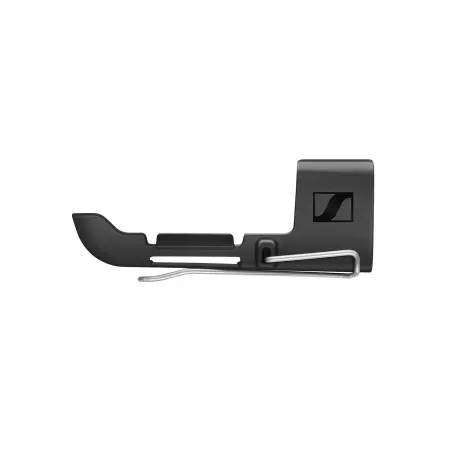

Belt clip
USB-A to USB-C charging cable

SennHeiser XSW-D Instrument Base Package (Sennheiser XS- Wireless Digital)

Research with AI

Battery Life	Up to 5 hours hours
Connectivity Protocols	2.4 GHz digital transmission, GFSK with TDMA
Frequency Response	80 - 18,000 Hz (3.5 mm Jack/XLR), 10 - 18,000 Hz (6.3 mm Jack) Hz

Brand	Sennheiser
Name	Sennheiser XSW-D Instrument Base Set
Primary Category	Wireless Instrument Audio System

Dimensions	Various components approx. 102 x 24 x 28 mm to 130 x 82 x 51 mm

Warranty Length	Not specified years

Why to Invest?

This wireless instrument audio set offers easy setup with one-touch operation, reliable digital transmission, and flexibility to link multiple transmitters to one receiver. It provides high-quality sound with low latency and a robust battery life, making it ideal for musicians seeking a dependable wireless solution.

How it Works?

The system uses 2.4 GHz digital transmission with GFSK modulation and TDMA to maintain a stable wireless connection. It supports worldwide operation and allows users to switch between multiple transmitters linked to a single receiver, with muting controls on both ends.

What's Unique?

The XSW-D Instrument Base Set stands out for its simple one-touch ease-of-use, aptX Live codec for superior audio quality, and the ability to configure any combination of transmitters and receivers, providing versatile and reliable wireless instrument connectivity.

Technical Specifications

Dimensions vary by component, with transmitters and receivers ranging from approximately 86 x 24 x 28 mm to 130 x 82 x 51 mm. Total harmonic distortion is less than 0.1%. Charging time is typically 3 hours. Signal-to-noise ratio is ≥ 106 dB. Frequency range is 2,400 - 2,483.5 MHz with a maximum transmission power of 10 mW. Operating temperature ranges from -10°C to +55°C, with relative humidity up to 95% non-condensing.

Included Accessories

The set includes a 6.3mm (1/4”) transmitter and receiver, a 6.3mm extension cable, a belt clip, and a USB-A to USB-C charging cable.
