Sennheiser XSW-D Lavalier Set

Digital Wireless Lavalier Microphone System

Sennheiser XSW-D Lavalier Set is a compact 2.4GHz digital wireless microphone system designed to make presentations, speaking engagements, and other hands-free voice applications simple to set up and operate. The system combines an ME2-II omnidirectional clip-on lavalier microphone with a rechargeable 3.5mm transmitter and male XLR receiver for direct connection to mixers, powered speakers, and other compatible audio equipment.

Sennheiser XSW-D Lavalier Set Competitive Differences

• One-touch operation simplifies powering, pairing, and everyday wireless use.
• 2.4GHz digital transmission supports worldwide operation without requiring frequency coordination in traditional UHF bands.
• Provides up to 250 ft (75 m) of operating range under optimal conditions.
• Rechargeable transmitter and receiver provide up to 5 hours of operating time per charge.
• Less than 4 ms audio latency helps maintain natural timing for live presentations and speech.
• Included ME2-II omnidirectional lavalier microphone provides discreet hands-free voice pickup.
• Transmitters and receivers can be linked in different combinations, and multiple transmitters can be switched between a single receiver.
• Mute control is available from either the transmitter or receiver.

Sennheiser XSW-D Lavalier Set Description

The Sennheiser XSW-D Lavalier Set brings straightforward digital wireless operation to presenters, educators, houses of worship, corporate events, and other applications where reliable hands-free speech is required. Its 2.4GHz transmission system operates across the 2400 to 2483.5MHz range and offers a maximum operating distance of 250 ft (75 m) in optimal conditions.

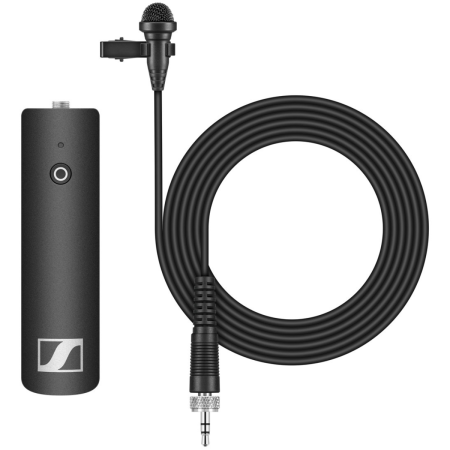

The included ME2-II clip-on lavalier microphone connects to the compact XSW-D 3.5mm transmitter, allowing the speaker to move freely without holding a microphone. At the receiving end, the XSW-D male XLR receiver connects directly to a compatible mixer, powered speaker, audio interface, or other XLR-equipped device, keeping the system compact and reducing unnecessary cabling.

Built-in rechargeable lithium-ion batteries provide up to 5 hours of operation, with a typical charging time of approximately 3 hours over USB-C. The digital audio system uses the aptX Live codec and delivers an 80 Hz to 18 kHz audio frequency response through its 3.5mm/XLR signal path, a signal-to-noise ratio of at least 106 dB, and latency below 4 ms.

One-touch controls keep setup uncomplicated, while flexible transmitter and receiver pairing allows the XSW-D platform to adapt as a wireless system grows. Its lightweight components, rechargeable design, and straightforward XLR connectivity make it well suited for portable presentations, conferences, classrooms, worship facilities, event production, and installed sound systems.

XSW-D Lavalier Set Features

• Digital wireless lavalier microphone system
• 2.4GHz digital wireless transmission
• Worldwide 2.4GHz operating capability
• Up to 250 ft (75 m) range in optimal conditions
• Up to 5 hours of battery life per charge
• Typical charging time of approximately 3 hours
• ME2-II omnidirectional clip-on lavalier microphone
• Compact 3.5mm transmitter
• Male XLR receiver for direct connection to compatible audio equipment
• One-touch operation
• Mute control from transmitter or receiver
• Ability to switch between multiple transmitters linked to one receiver
• Supports configurable transmitter and receiver combinations within the XSW-D system
• USB-C charging interface
• aptX Live audio codec
• Less than 4 ms audio latency

XSW-D Lavalier Set Specifications

• Wireless Frequency Range: 2400 to 2483.5 MHz
• Transmission System: 2.4GHz digital
• Operating Range: Up to 250 ft (75 m) in optimal conditions
• Modulation: GFSK with TDMA
• Transmission Power: Maximum 10 mW EIRP
• Codec: aptX Live
• Audio Frequency Response, 3.5mm/XLR: 80 Hz to 18 kHz
• Maximum Audio Output: 12 dBu
• Signal-to-Noise Ratio: 106 dB or greater
• Total Harmonic Distortion: Less than 0.1%
• Audio Latency: Less than 4 ms
• Microphone Pickup Pattern: Omnidirectional
• Battery Type: Rechargeable lithium-ion
• Battery Capacity: 850 mAh
• Battery Nominal Voltage: 3.7 V
• Operating Time: Up to 5 hours
• Typical Charging Time: 3 hours
• Charging Interface: USB-C
• USB Charging Input Voltage: 5 V typical
• Operating Temperature: 14°F to 131°F (-10°C to 55°C)
• XSW-D Mini Jack Transmitter Dimensions: Approx. 3.39 x 0.94 x 1.10 in (86 x 24 x 28 mm)
• XSW-D Mini Jack Transmitter Weight: Approx. 2.6 oz (73 g)
• XSW-D Male XLR Receiver Dimensions: Approx. 4.29 x 0.94 x 1.10 in (109 x 24 x 28 mm)
• XSW-D Male XLR Receiver Weight: Approx. 3.2 oz (90 g)
• Article Number: 508485

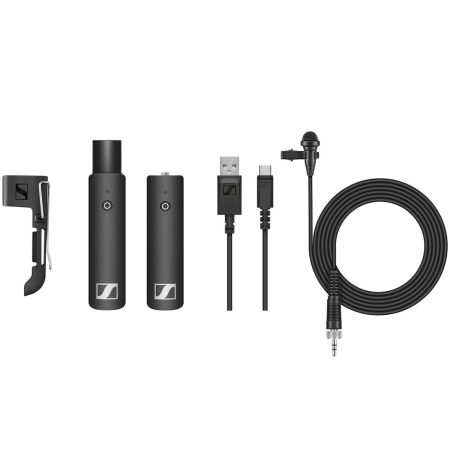

What's In The Box

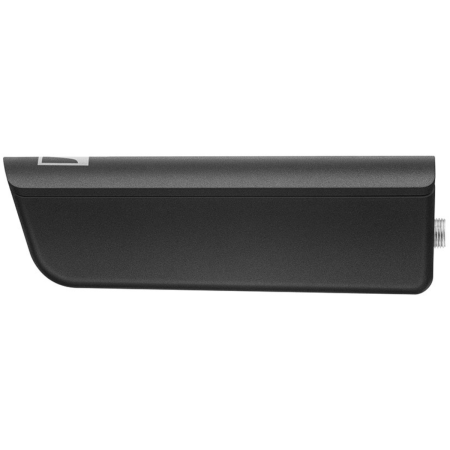

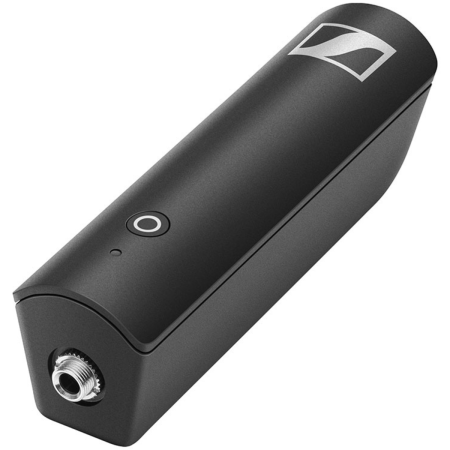

• XSW-D 3.5mm (1/8in) transmitter

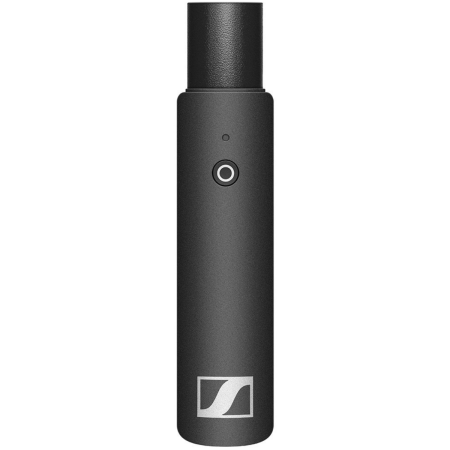

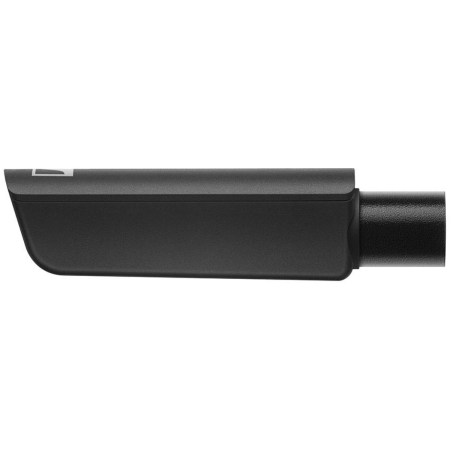

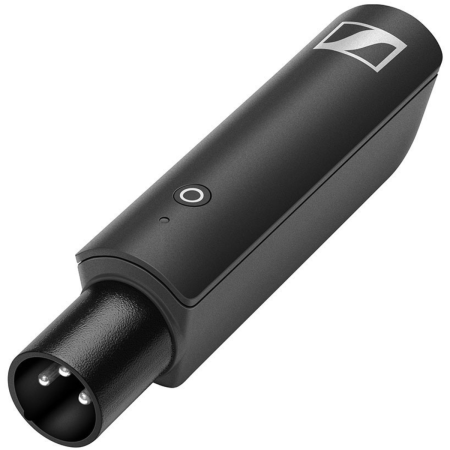

• XSW-D male XLR receiver
• ME2-II clip-on lavalier microphone

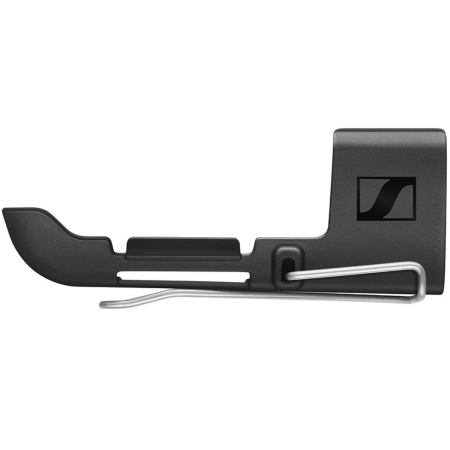

• Belt clip
• USB-A to USB-C charging cable
• Colored labeling stickers
• Quick guide
• Safety guide

Sennheiser XSWD Lavalier System (Sennheiser XSW D Lav Set)
