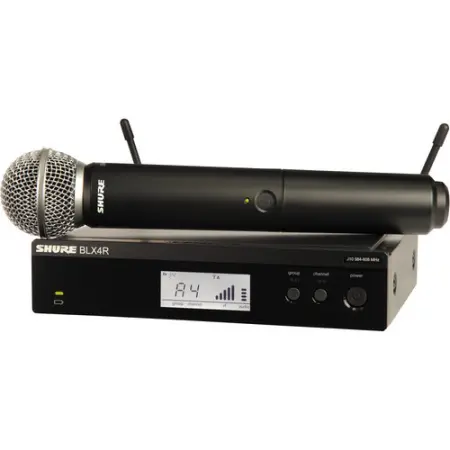

Shure BLX24R/SM58
H10: 542 - 572 MHz
For performers who wish to unplug from the wire, BLX Wireless Systems are the clearest choice. Shure delivers wireless confidence with legendary sound from industry-renown microphones, decades of wireless design proficiency and world-class construction. Available in a wide offering of bodypack and handheld configurations (including vocal, guitar, headset and presenter system), BLX Wireless Systems are ready to perform right out of the box.
The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the SM58 handheld microphone capsule. Legendary sound and performance, right out of the box.
Shure BLX24R/SM58-H10 Includes:
BLX4R rack mount wireless receiver with rack mount kit
SM58 handheld microphone with BLX2 transmitter
Microphone clip
Shure BLX24R/SM58-H10 Features:
BLX2 Transmitter:
Integrated microphone capsule design
-10 dB gain attenuation
Lightweight, rugged construction
Color ID caps (available separately)
Up to 14 hours of continuous use (2x AA batteries included)
Up to 300 feet (100m) transmission radius (line of sight)
Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
Two-color transmitter status indicator LED
Green: “Ready”
Rapidly Flashing Red: “Controls Locked”
Solid Red: “Battery Power Low” (less than1 hour remaining)
Flashing Red/Power Down: “Batteries Dead” (replace batteries to repower transmitter)
BLX4R Receiver:
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
Two-color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
XLR and 1/4" output connectors
Adjustable output level
Removable antennas for quick antenna distribution
LCD display with detailed RF and audio metering
Rugged metal construction,rack mount hardware included
Shure BLX24R/SM58-H10 Specifications:
Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 542 - 572 MHz
Audio Range: 50 – 15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
Power Requirements:
BLX1: 2 AA alkaline or rechargeable batteries (included)
BLX4: 12 – 18 V DC at 150 mA, supplied by external power supply
Shure Professional BLX24R/SM58 H10
(Shure BLX24R/SM58-H10)
