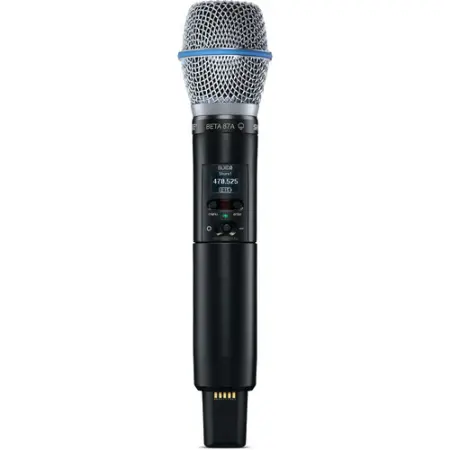

The Shure SLXD2/B87A is a digital handheld wireless microphone transmitter compatible with SLX-D receivers. It comes equipped with the Beta 87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that offers excellent rejection of off-axis background noise, helping to reduce feedback.
The system operates on a 46 MHz UHF tuning range with 1840 frequencies available. The transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or a rechargeable SB903 battery pack (available separately).
The SLXD2/B87A handheld transmitter delivers crystal-clear, 24-bit digital audio quality and reliable RF performance in a lightweight, yet durable aluminum housing. It is well suited for use in small- to medium-sized venues and houses of worship or with A/V installations in a conference, educational, or corporate facilities.
Clear, Accurate Audio with Interchangeable Capsule
The unit delivers clear, reliable 24-bit digital audio.
The Beta 87A supercardioid condenser capsule handles SPL levels up to 140 dB and offers a smooth frequency response with a gradual presence rise and controlled proximity effect tailored for vocals.
The interchangeable capsule design allows you to replace the Beta 87A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including the SM58, KSM8, and Beta 58A capsules.
User-Friendly Features in a Rugged Housing
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
An easy-to-read LCD shows important information
1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
Operates for up to 8 hours on two AA batteries.
The optional SB903 lithium-ion rechargeable battery offers convenient power management with zero memory effect and precision metering in hours and minutes on the transmitter's LCD screen.
The SBC203 dual-battery station charges two SB903 batteries at once—it fits the external contacts on the transmitter so you don't have to remove the batteries to recharge.
Specifications:
System
Wireless Transmission Digital UHF
RF Frequency Band J52: 558 to 602 MHz, 614 to 616 MHz
RF Bandwidth 46 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328' / 100 m
Max Systems per Setup 32
Sample Rate/Resolution 24-Bit
Latency 3.2 ms
Encryption None
Transmitter
Form Factor Handheld
RF Output Power 1 / 10 mW
Audio I/O None
Pad None
Muting None
Audio Input Level 8.2 dBV
Auto-Level Control No
Gain Range 0 +21 dB
Signal Processing None
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
Sync Method IR
Antenna Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time 1.25 to 5.5 Hours
Approx. Battery Life 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity None
Display & Indicators LCD (Battery Status, Channel, Group, Power)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 1.5 x 6.9" / 37.1 x 176 mm
Weight 5.2 oz / 147 g
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Supercardioid
Frequency Range 50 Hz to 20 kHz
Equivalent Noise Level 28 dB A-Weighted
Maximum SPL 140.5 dB SPL
Sensitivity -51.5 dBV/Pa
CMRR None
Dynamic Range 117 dB
Diameter 2.01" / 51.1 mm
Shure SLXD2/B87A
(Shure SLXD2-B87A)
