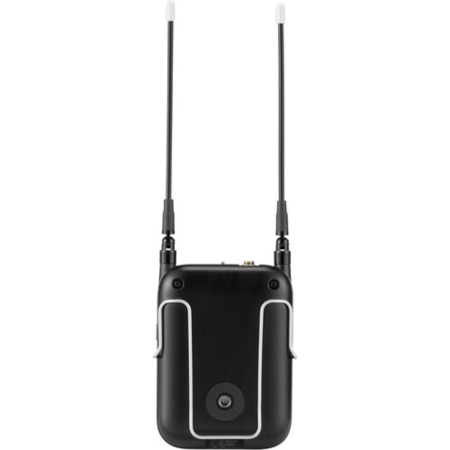

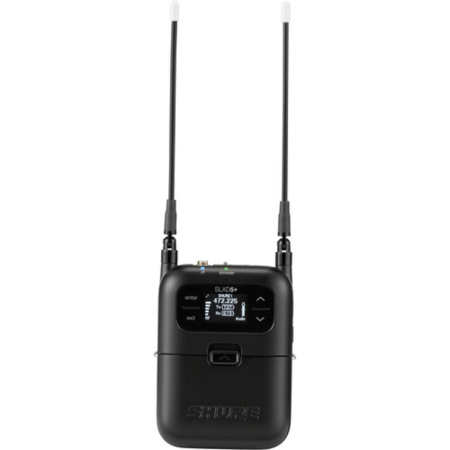

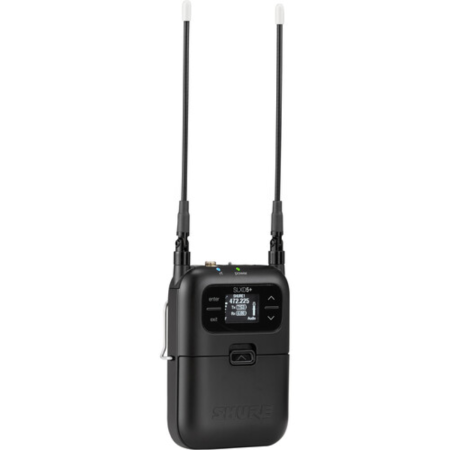

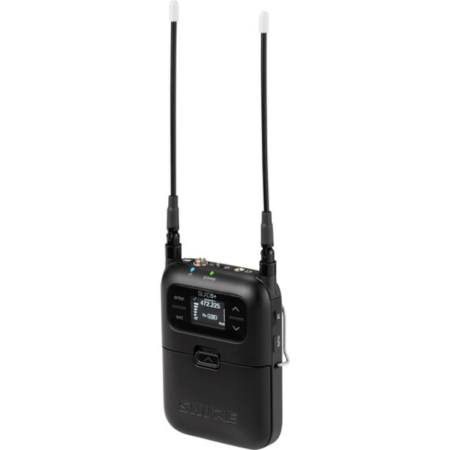

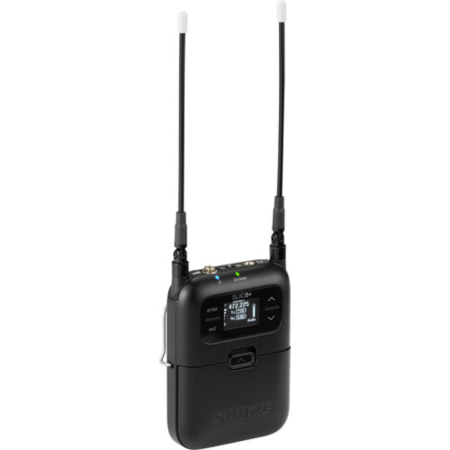

Shure SLXD5PLUS--G57

Camera-Mount Digital Wireless Receiver

Shure SLXD5PLUS G57 is a single-channel portable digital UHF wireless receiver designed for on-camera mounting and audio-bag workflows. Built for broadcast, film, videography, and field production, it provides transparent digital audio, wideband RF tuning, app-based control, secure encrypted transmission, and flexible monitoring in a compact mobile receiver format.

Shure SLXD5PLUS G57 Competitive Differences

• Single-channel camera-mount receiver for mobile production and audio-bag workflows
• Transparent 24-bit digital audio with greater than 118 dB dynamic range
• Wide 138 MHz tuning range for expanded frequency coordination flexibility
• Dual 3.5mm outputs include balanced mic/line output and headphone monitoring output
• ShowLink Ease supports remote transmitter control and automated wireless management
• AES-256 encryption provides secure wireless transmission
• Integrated Digital Feedback Reduction helps suppress feedback with dynamic notch filters

Shure SLXD5PLUS G57 Description

The Shure SLXD5PLUS G57 is designed for production users who need dependable wireless audio in a portable receiver. It mounts to a camera using included shoe-mount hardware or fits into an audio bag for location sound, ENG, documentary, corporate video, and field recording applications.

When paired with a separately available SLXD1+ bodypack, SLXD2+ handheld, or SLXD3+ plug-on transmitter, the receiver delivers transparent 24-bit digital audio with a dynamic range greater than 118 dB. Its digital UHF operation, true diversity reception, 2.8 ms latency, and 328.1 ft operating range support clean audio capture in demanding mobile environments.

ShowLink Ease enables real-time two-way communication between the receiver and paired SLX-D+ transmitters. Users can remotely adjust transmitter frequency, gain, control locks, interference mitigation, and firmware updates from the receiver or a paired mobile device. Wireless Workbench Mobile support also allows Android and iOS control over Bluetooth for frequency scanning, RF monitoring, and system management.

The Shure SLXD5PLUS G57 also includes Multi-Mic Mode for scanning and syncing multiple clean frequencies, AES-256 encryption for secure transmission, and built-in Digital Feedback Reduction for improved clarity when microphones are used near loudspeakers. It operates on two included AA batteries or one optional Shure SB903 rechargeable battery for up to 5.5 hours of runtime.

SLXD5PLUS G57 Features

• Single-channel camera-mount digital UHF wireless receiver
• Designed for broadcast, film, videography, field production, and location sound
• Compatible with separately available SLXD1+, SLXD2+, and SLXD3+ transmitters
• Transparent 24-bit digital audio performance
• Greater than 118 dB dynamic range
• Wide 138 MHz tuning range, regionally dependent
• 470 to 608 MHz RF frequency band
• Supports up to 11 simultaneous systems per 6 MHz TV band
• Supports up to 14 simultaneous systems per 8 MHz TV band
• ShowLink Ease remote control and automated wireless management
• Wireless Workbench Mobile app support for Android and iOS
• Bluetooth app control for scanning, monitoring, and parameter management
• Multi-Mic Mode for scanning, syncing, and monitoring multiple sources
• Digital Feedback Reduction with dynamic notch filtering
• AES-256 encrypted wireless transmission

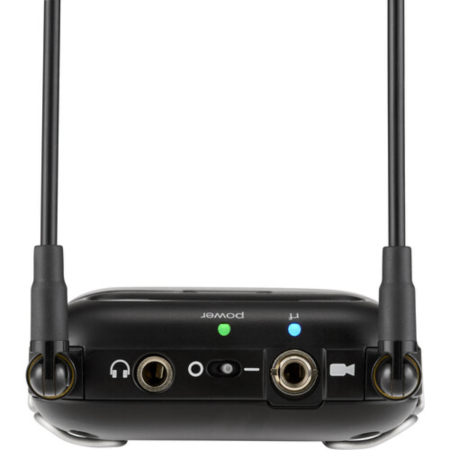

• Dual 3.5mm audio outputs for mic/line output and headphone monitoring
• Backlit LCD display
• Aluminum housing

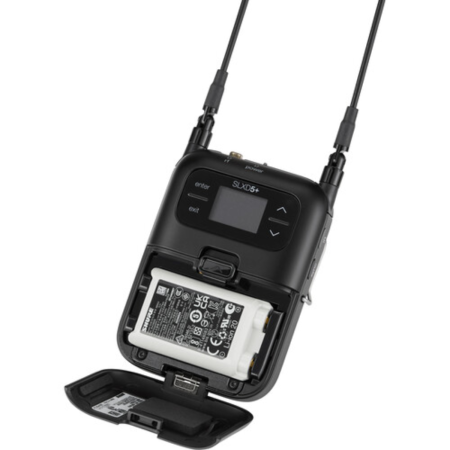

• Runs on 2 AA batteries or optional Shure SB903 rechargeable battery
• Up to 5.5 hours of receiver battery life

SLXD5PLUS G57 Specifications

• Wireless Technology: Digital UHF
• RF Frequency Band: 470 to 608 MHz
• Tuning Range: 138 MHz
• Diversity: Yes
• Receiver Type: 1x camera-mount
• Number of Audio Channels: 1
• Included Transmitters: No transmitters included
• Microphone Type: No microphone included
• Included Charging Case: No
• Number of RF Channel Frequencies: 5520
• Max Operating Range: 328.1 ft / 100 m
• Max Transmitters per Band: 14
• Dynamic Range: 118 dB
• Latency: 2.8 ms
• Encryption: AES 256
• Built-In Recorder: No
• Timecode Support: No
• Mobile App Compatible: Yes, Android and iOS
• Mounting Options: Shoe-mount with included hardware
• Antenna: 2 removable 1/4 wave flexible whip antennas
• Audio I/O: 1x 1/8" / 3.5 mm TRS balanced mic/line output
• Audio I/O: 1x 1/8" / 3.5 mm TRS headphone output
• Slot-Mount I/O Adapters: No
• Network I/O: No
• USB/Lightning Connectivity: No
• Gain Range: -18 to +42 dB
• Display: Backlit LCD
• Power Requirements: Battery
• Receiver Battery Type: 2x AA included or 1x Shure SB903 not included
• Receiver Battery Life: 5.5 hours
• AC/DC Power Adapter: No
• Environmental Resistance: No
• Housing: Aluminum
• Dimensions: 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
• Weight: 6.4 oz / 182 g
• Package Weight: 1.335 lb
• Box Dimensions: 11.4 x 6.6 x 3"

What's In The Box

• Shure SLXD5PLUS G57 camera-mount receiver
• 2 removable 1/4 wave flexible whip antennas
• Shoe-mount hardware
• 2 AA batteries

SHURE SLXD5PLUS--G57 (Shure SLXD5PLUSG57)
