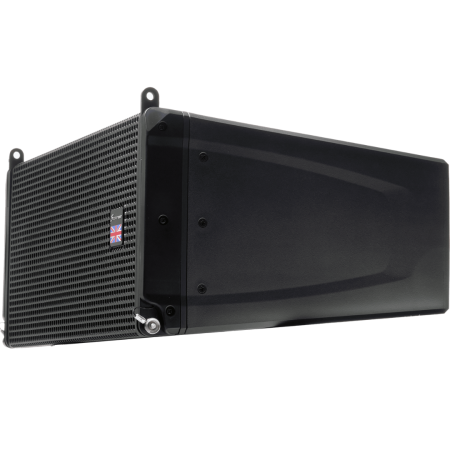

Compact Active Line Array Speaker with DSP and Built-in Amplifier
The
Studiomaster V6A is a powerful, lightweight
2-way active line array speaker designed for live sound, touring, and fixed installations. Built with reinforced PP composite material and equipped with dual 6.5" mid-frequency drivers and a 3" neodymium HF driver, this unit delivers
130 dB max SPL and crisp, articulate output. The integrated
550W amplifier and DSP provide system-wide control, while the 100° x 10° dispersion pattern ensures consistent coverage across your audience area.
Studiomaster V6A Competitive Differences
- Built-in 550W Amplifier: 400W MF + 150W HF in each cabinet—no external amp needed
- Onboard DSP Control: Adjust EQ, crossover, delay, threshold, and more
- 130 dB SPL Output: Clear, distortion-free sound at high volume
- Dual 6.5" MF Drivers: 38mm voice coils for detailed mids
- 3" Voice Coil Neodymium HF Driver: Delivers articulate highs
- Durable Reinforced PP Composite Enclosure: Lightweight and rugged for touring
- 100° x 10° Dispersion Pattern: Narrow vertical angle for line array scalability
- Vertical Splay Angle Adjustment: 0°–10° in 1° steps for precise array aiming
Studiomaster V6A Description
The
Studiomaster V6A brings performance and portability together in a fully integrated
active line array module built for flexibility and control. Each unit houses its own
550-watt amplifier with
dedicated DSP, eliminating the need for separate amp racks and streamlining rigging.
With
dual 6.5" mid-frequency drivers and a high-output
3" neodymium HF compression driver, the V6A delivers
crisp highs,

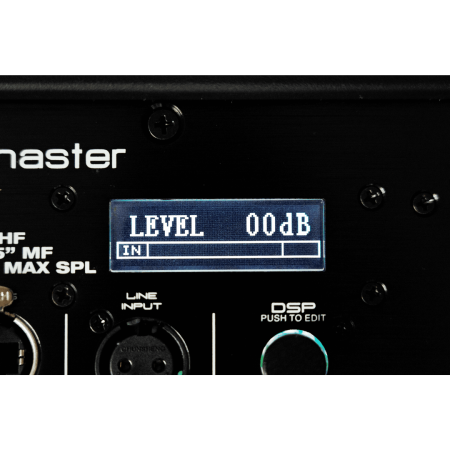

tight mids, and excellent projection. The system’s DSP allows you to fine-tune the performance using onboard controls or connect remotely via RS485 for full system tuning from your laptop.
Its

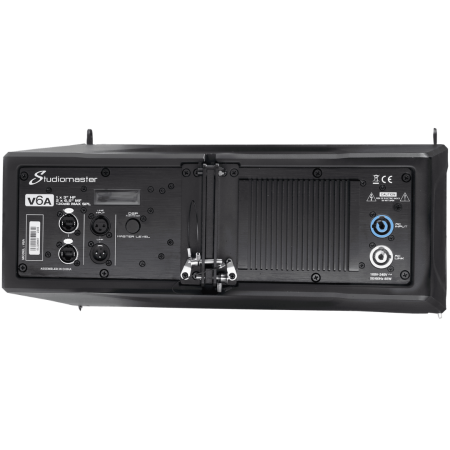

reinforced PP enclosure is not only lightweight but also highly durable—perfect for the rigors of rental and touring use. Plus, integrated signal and power thru connections make it easy to daisy-chain multiple speakers in larger array configurations with minimal cabling.
V6A Features
- 2-way active line array speaker system
- Maximum SPL: 130 dB
- Frequency response: 70 Hz – 20,000 Hz (-10 dB)
- 100° horizontal × 10° vertical coverage
- Built-in DSP with gain, EQ, crossover, delay, and threshold controls
- Dual 6.5" MF drivers with 38mm voice coils
- 1 x 3" voice coil neodymium HF compression driver (74mm VC)
- Reinforced composite polypropylene enclosure
- Vertical splay angle: 0°–10° adjustable in 1° steps
V6A Specifications
- Max SPL: 130 dB
- Amplifier Power: 400W MF / 150W HF
- Cabinet Type: 2-way active line array
- Frequency Response: 70 Hz – 20 kHz (-10 dB)
- Coverage (H x V): 100° x 10°
- Sensitivity: 0 dBu
- Impedance: N/A (active speaker)
- MF Driver: 2 x 6.5" / 38mm voice coil
- HF Driver: 1 x 3" / 74mm voice coil neodymium compression driver
- DSP Functions: Gain, EQ, crossover, delay, threshold
- Crossover Frequency: DSP controlled
- Vertical Splay Angle: 0°–10° (1° increments)
- Dimensions (W x H x D): 18.5" x 8.15" x 13.43" (470 x 207 x 341 mm)
- Weight: 33.1 lbs (15 kg)
StudioMaster V6A
(Studio Master V-6-A)
