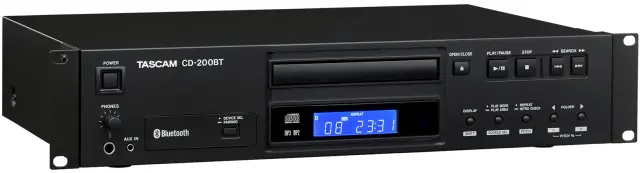

The Tascam CD-200BT Rackmount CD Player With Bluetooth Receiver allows you to playback CDs, CD-Rs, CD-RWs, and WAV, MP2 and MP3 data CDs in addition to audio from Bluetooth enabled devices. While you can only pair one Bluetooth device to the CD-200BT at a time, you can register up to 8 devices, allowing you to switch between them quickly.
The CD drive itself is designed and built by TEAC and features a 10-second shockproof memory, keeping your playback protected from vibrations and CD skips. The CD-200BT also has an auxiliary 3.5mm stereo mini-jack input for integrating another sound source. The unit has a variety of output options including stereo analog RCA outputs and digital coaxial and optical outs. A front-panel 1/4" headphone output with independent volume control allows you to use the CD-200BT for personal listening. The unit can be controlled with the included remote control and is rackmountable with the included rackmount screw kit.
Features:
The aptX® codec supports high audio quality playback
Up tp eight Bluetooth® transmission devices can be paired at a time for quick and easy switching
The name of the transmission device currently being used for playback can be displayed
aptX®, AAC and SBC codecs are supported, and the codec being used can be displayed
SCMS-T is supported using Bluetooth® (A2DP), so audio with content protection can be received
Bluetooth® antenna in the front for stable Bluetooth® connections
High-quality CD drive designed for audio by TEAC
10-second shockproof memory prevents skipping from vibrations and other causes
CD drive supports playback of CD-DA and WAV/MP3/MP2 files (data CD)
Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
Four playback modes (continuous, shuffle, program and single)
Repeat playback function (all or single)
Folder repeat playback (data CD)
Switch between display of track elapsed time, track and disc remaining time (audio CD)
+/-14% pitch control function(audio CD/data CD)
Intro check function can be used to play the first 10 seconds of songs in order(audio CD/data CD)

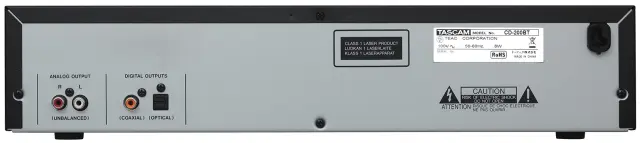

RCA analog outputs and COAXIAL/OPTICAL digital outputs
Stereo mini jack input on the front for portable audio devices
2U EIA rack-mount size
Wireless remote controller with 10-key included
Paring and device selection can be conducted with the included wireless remote control
Headphone output
RoHS certified
Specifications:
Playback Media Formats
CD, CD-R, CD-RW; 3 or 4", 8 or 12 cm
Playback Formats
CD-DA: Stereo, 44.1 kHz, 16-bit
WAV (Data CD): Stereo, 8, 16, 32, 11.025, 22.05, 44.1, 12, 24, 48 kHz, 16-bit
MP2 (Data CD): Stereo, 32, 44.1, 48 kHz; 32 to 384 kbps
MP3 (Data CD): Stereo, 32, 44.1, 48 kHz; 32 to 320 kbps, VBR
Auxiliary Input
Connector: 1/8" (3.5 mm) stereo mini jack
Input Impedance: 22 kΩ
Nominal Input Level: -20 dBV
Maximum Input Level: -4 dBV
Analog Output
Connector: 2x RCA pin-jack
Output Impedance: 200 Ω
Nominal Output Level: -10 dBV (0.32 Vms)
Maximum Output Level: 6 dBV (2.0 Vms)
Digital Output
Coaxial:
Connector: RCA pin-jack
Format: IEC60958-3 (S/PDIF)
Optical:
Connector: TOS (JEITA RC-5720C)
Format: IEC60958-3(S/PDIF)
Bluetooth
Version: 3.0
Output Class: Class 2
Supported Profile: A2DP, AVRCP
Supported A2DP Codec: SBC, AAC, aptX
Supported Contents Protection: SCMS-T
Headphone Output Connector: 1/4" (6.3 mm) stereo jack
Maximum Output Level: 20 mW + 20 mW (THD 0.1%, 32 Ω loaded)
Frequency Response
20 Hz to 20 kHz, +/-1 dB (playback, JEITA)
Distortion
0.01% or less (playback, JEITA)
Signal to Noise Ratio
90 dB or greater (playback, JEITA)
Dynamic Range
90 dB or greater (playback, JEITA)
Channel Separation
90 dB or greater (playback, JEITA)
Power
North American: AC 120 V, 60 Hz
Europe: AC 230 V, 50 Hz
Australia: AC 240 V, 50 Hz
Power Consumption
11 W
Operating Temperature
(5 to 35°C)
Tascam CD200BT
(Tascam CD Player Bluetooth Receiver)
