Passive Full-Range Loudspeaker

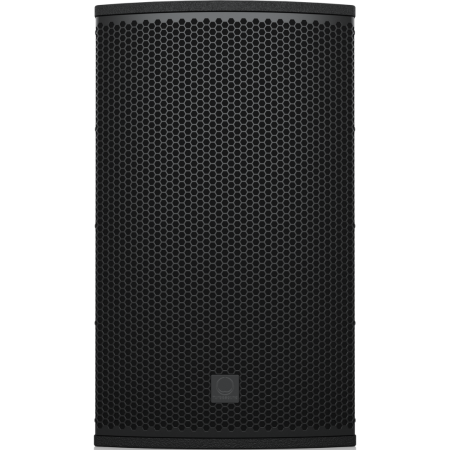

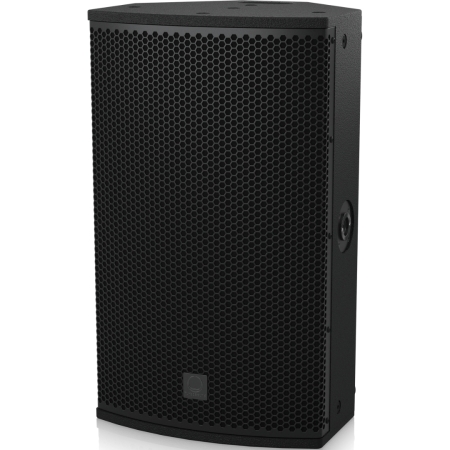

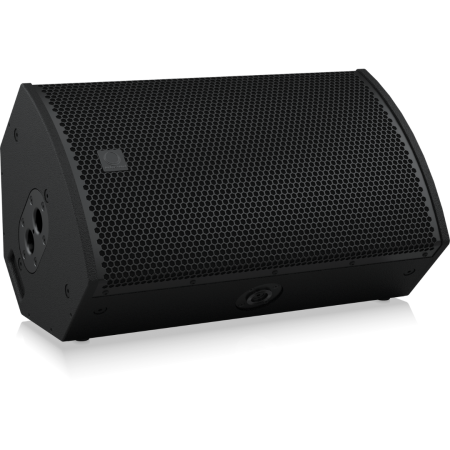

Turbosound TS-PQ12 is a high-output, 2-way full-range loudspeaker designed for touring, FOH, side-fill, delay, and monitor applications. With premium components and flexible mounting options, this passive 12" speaker delivers outstanding clarity, power handling, and coverage for professional live sound reinforcement.
Turbosound TS-PQ12 Competitive Differences
- 137dB peak SPL with 2,000W power handling
- Rotatable 80° x 50° Catenary horn for optimized coverage
Turbosound TS-PQ12 Description
The
Turbosound TS-PQ12 is built to meet the demands of live sound professionals needing precision, power, and durability in a passive loudspeaker format. Its 12" ferrite low-frequency driver with a 2.5" voice coil delivers tight, punchy bass, while the 1" neodymium high-frequency compression driver ensures detailed mids and highs. The rotatable Catenary horn provides a consistent 80° x 50° dispersion, ideal for both horizontal and vertical mounting configurations.
This speaker integrates seamlessly with Lab Gruppen IPX and PLM+ powered controllers, with pre-configured presets optimized for the PQ series. Acoustic modeling and installation flexibility are supported through available EASE Focus GLL files, enabling accurate coverage planning for both fixed and mobile applications.

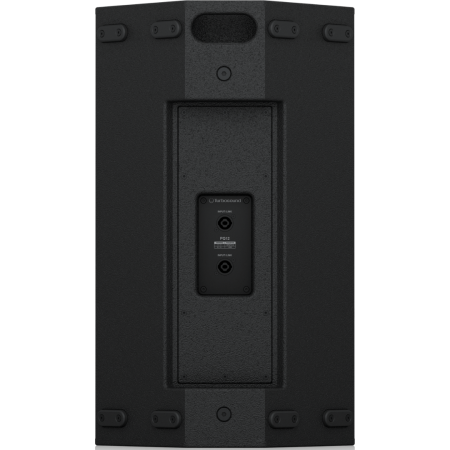

The PQ12’s rugged 15mm plywood enclosure is coated with a semi-matt black PU paint and fitted with a steel mesh grille. Rear panel twist-lock connectors allow for secure input and daisy-chaining to additional units. With its multiple M10 rigging points, dual pole sockets, and optional yoke/swivel bracket compatibility, this loudspeaker is ready for both touring racks and venue installs.
Model Features
- 12" ferrite woofer with 2.5" voice coil
- 1" neodymium compression driver with 1.7" voice coil
- Passive crossover with internal network
- Rotatable 80° x 50° exponential Catenary horn
- Optimized presets for Lab Gruppen IPX & PLM+ amplifiers

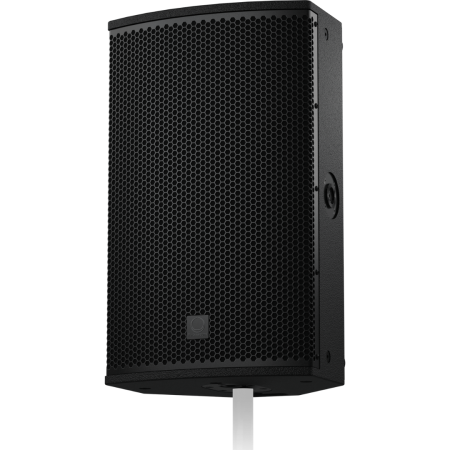

- Dual 35mm pole mounts and multiple M10 rigging points
- Plywood cabinet with PU coating and steel mesh grille
Model Specifications
- Frequency Response (±3 dB): 74Hz – 20kHz
- Frequency Response (-10 dB): 49Hz – 20kHz
- Nominal Dispersion: 80° H x 50° V (rotatable)
- Power Handling (Continuous): 550W (500W LF / 50W HF)
- Power Handling (Peak): 2,200W (2,000W LF / 200W HF)
- Sensitivity (1W @ 1m): 98dB
- Max SPL: 137dB Peak
- Impedance: 8 Ohms
- Enclosure Material: 15mm plywood, PU coated
- Dimensions: 24.8 x 14.7 x 12.9 in (630 x 373 x 329 mm)
- Weight: 52.0 lb (23.6 kg)
What's In The Box
- Turbosound TS-PQ12 loudspeaker
- User documentation
Turbosound TS-PQ12
(TurboSound PQ12_000)
