12-Inch Passive Speaker for High-Power Installations and Touring Systems
The

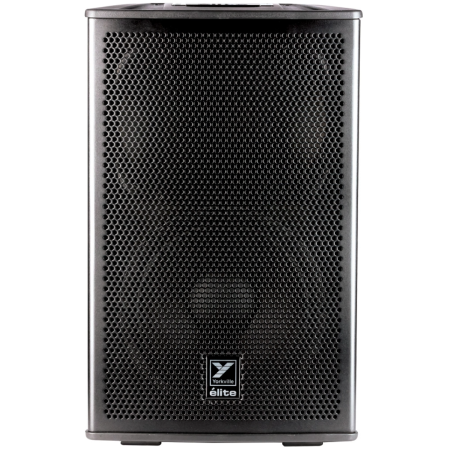

Yorkville EF12 brings the performance and reliability of the Elite Series to venues and installs requiring passive loudspeakers. Engineered with premium-grade components and rugged birch plywood construction, this 12" 2-way speaker delivers powerful, full-range sound and is ideal for applications with existing external amplification.
Yorkville EF12 Competitive Differences
- 1200W peak / 600W program power rating at 8 ohms for professional-level output
- 3" voice coil woofer paired with a 3" compression driver for full-range clarity and power
- ABS-coated birch plywood cabinet for superior acoustic response and durability
- Integrated flypoints and pullback for installation or flown arrays

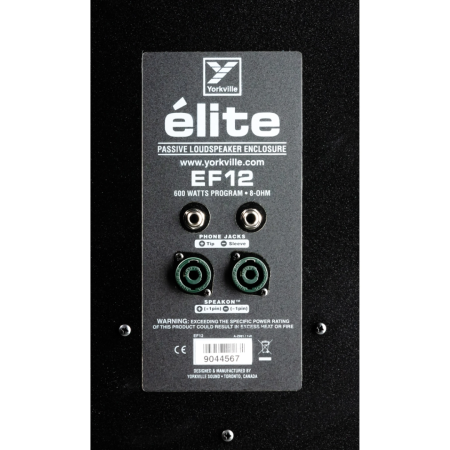

- Multiple input options: 2x 1/4" and 2x Speakon™ 4-pin connectors
- Made in Canada with professional-grade reliability
Yorkville EF12 Description
The
Yorkville EF12 passive loudspeaker is a compact yet powerful solution for both portable and installed sound applications. Built for high-output audio, it houses a 12" woofer with a 3" voice coil and a titanium-diaphragm compression driver with its own 3" voice coil. Together, they deliver crisp highs, robust lows, and smooth midrange at up to 128 dB SPL peak.

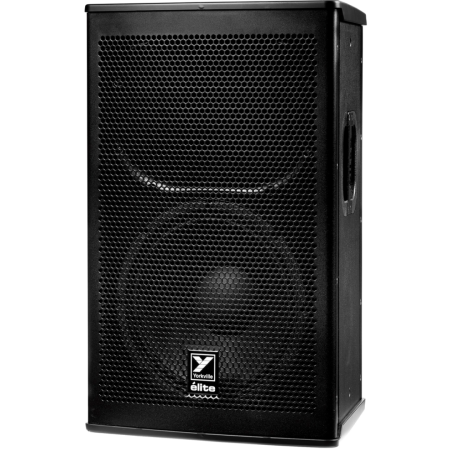

Housed in a 15 mm (5/8") 11-ply Russian birch cabinet finished with black Ultrathane™ paint, the EF12 is lightweight (51 lbs) yet extremely rugged. It includes eight integrated flypoints and a pole mount adapter, making it easy to deploy in almost any configuration—on a stand, stacked, or suspended.
EF12 Features
- 12” LF driver with 3” voice coil
- 3” HF compression driver with 1” titanium diaphragm
- ABS plastic custom waveguide horn (60° x 40°)
- 3 SK3 protection bulbs for high-frequency driver protection
- ABS-coated birch plywood cabinet with metal grille

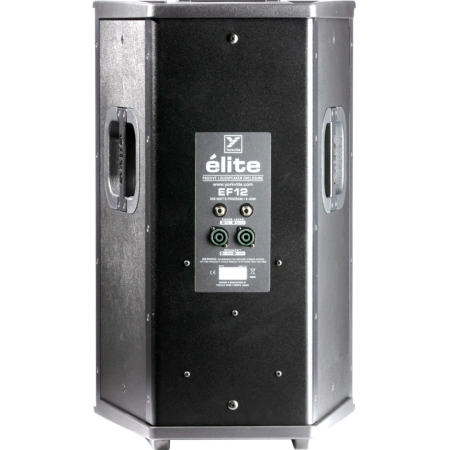

- Dual 1/4” and dual Speakon™ input connectors
- Three bar handles for easy transport
- Flyable with 8 flypoints and 1 pullback point
EF12 Specifications
- System Type: Passive 2-way loudspeaker
- Power Handling: 1200W peak / 600W program
- Impedance: 8 ohms
- Sensitivity: 97 dB @ 1W/1m
- Max SPL: 128 dB peak / 125 dB continuous
- Frequency Response: 55 Hz – 18 kHz (±3 dB)
- Crossover Frequency: 1900 Hz
- HF Dispersion: 60° x 40°
- Inputs: 2 x 1/4" jacks, 2 x Speakon™ 4-pin
- Enclosure Material: 15 mm (5/8") 11-ply Russian birch
- Grille: Perforated metal
- Finish: Black Ultrathane paint
- Dimensions (D x W x H): 14" x 16" x 25.5"
- Weight: 51 lbs (23 kg)
What's In The Box
- Yorkville EF12 Passive Loudspeaker
Yorkville EF12
(Yorkville EF-12)
