Digital Mixing Console for Live Sound, Streaming & Recording
The
Yamaha MGX12 W is a compact 18-channel digital mixing console in a sleek white finish, designed for live sound, streaming, podcasting, and content creation. With dual USB audio interfaces, Bluetooth input, and a built-in 4.3" touchscreen, it offers an intuitive and flexible workflow with pro-level sound shaping, routing, and recording capabilities.
Yamaha MGX12 W Competitive Differences
- Modern white finish for clean, contemporary studio and live environments
- Bluetooth 5.0 audio input and dual USB-C ports for 18x18 and 2x2 audio interfaces
Yamaha MGX12 W Description
The

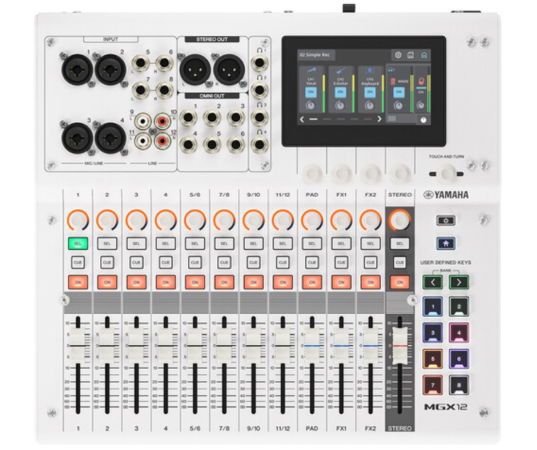

Yamaha MGX12 W delivers hands-on digital mixing with the streamlined feel of the classic MG series—upgraded for today’s hybrid audio workflows. Designed for quick setup and easy operation, it includes a 4.3" touchscreen, 11 channel faders, and 5 dedicated control knobs for intuitive access to levels, FX, routing, and settings.
With four combo XLR-1/4" mic/line inputs and four stereo line inputs (TRS and RCA), it offers essential connectivity for microphones, instruments, and playback devices. The mixer supports multitrack 18-in/18-out recording over USB MAIN, a secondary USB 2-in/2-out SUB interface, and onboard 16-track microSD recording/playback.
The MGX12 W includes Yamaha’s signature studio-quality DSP with compression, gate, ducking, pitch shifting, amp simulation, and morphing EQ. Assistive features like Auto Gain, Clip Safe, and Scene Recall ensure smooth operation even in fast-paced environments. The mixer also comes with an extensive Steinberg software suite, making it a complete production solution out of the box.
Perfect for portable rigs, worship AV systems, home studios, or streaming setups, MGX12 W combines visual appeal, intuitive control, and unmatched Yamaha sound reliability.
Model Features
- 18-channel digital mixer with touchscreen GUI
- 4 mic/line combo inputs with +86dB gain range
- Bluetooth 5.0 wireless audio input
- microSD recording: 16-track record / 2-track playback
- USB MAIN: 18x18 interface (32-bit / 96 kHz)
- USB SUB: 2x2 interface (16-bit / 48 kHz)
- Built-in DSP FX: Reverb, delay, pitch fix, amp sim, morph EQ
- Customizable sound pads and user-defined knobs
- Assistive functions: Auto Gain, Clip Safe, Scene Recall
- Included Steinberg software bundle (Cubase AI, WaveLab Cast LE, Basic FX Suite)
Model Specifications
- Max I/O Capacity: 16 input / 8 output
- Mic Preamps: 4x Combo XLR-1/4"
- Line Inputs: 4x 1/4" TRS + 4x RCA stereo
- Main Outputs: 2x XLR
- Other Outputs: 8x 1/4" TRS, 4x 1/4" headphone
- Faders: 11+1 non-motorized
- Display: 4.3" color touchscreen
- Built-in Effects: 13 stereo FX types
- Dynamic Range: 125 dB output / 115 dB input-to-output
- Frequency Response: 20 Hz – 20 kHz
- THD: < 0.002% (Mic input at min gain, +4 dBu)
- Sample Rates: Up to 96 kHz
- Recording: SD / USB Drive (MP3, WAV), max 1 GB
- Phantom Power: +48V
- Rack Mountable: Yes
- Dimensions: 13.2 x 12.5 x 3.8 in (33.5 x 31.8 x 9.7 cm)
- Weight: 8.6 lb (3.9 kg)
What's In The Box
- Yamaha MGX12 W digital mixer (white)
- AC power adapter
- Steinberg software license card
Yamaha MGX12 W
(Yamaha MGX12-W)
