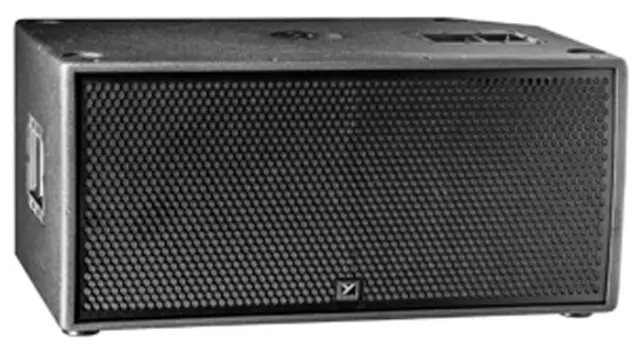

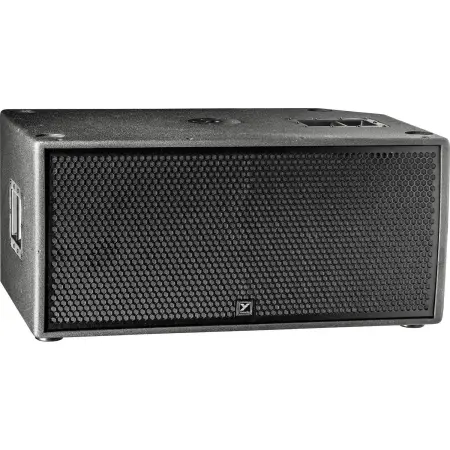

Yorkville PSA2S

High‑Power Dual 15″ Active PA Subwoofer

The Yorkville PSA2S is a rugged, dual 15″ Class‑D active subwoofer delivering 2400 W program (4800 W peak) and up to 134 dB SPL—designed to seamlessly integrate with PSA1 loudspeakers or any full-range PA system.

Yorkville PSA2S Competitive Differences

• Dual 15″ ceramic woofers with 3″ voice coils in a bass‑reflex 15 mm birch enclosure
• 2400 W program, 4800 W peak power with up to 134 dB SPL
• Solid birch plywood build with black ultrathane finish—Made in Canada
• Integrated heavy‑duty precision cast‑aluminum pole adapter for secure speaker mounting
• Built‑in rear wheels and bar handles for easy mobility
• Accepts both line and speaker‑level inputs with link output—ideal for flexible integration

Yorkville PSA2S Description

The PSA2S is engineered for high-demand live sound environments, offering robust low-frequency support for the PSA1 full-range system or any PA setup. With its 2400 W program power and dual 15″ drivers, it produces deep, clear bass that’s both loud and punchy. Its Class‑D amplifier ensures reliability and efficiency, while the ability to handle speaker-level inputs adds to its versatility.

Constructed from 15 mm birch plywood with durable ultrathane coating, the PSA2S withstands heavy touring use. Mobility is assisted by integrated rear wheels and sturdy handles. The standout feature is its precision-cast aluminum pole adapter, allowing you to stack your PSA1 speakers securely and minimize cabinet sway for consistent coverage.

Whether used solo or in an array, the PSA2S excels in delivering clean, powerful bass performance for medium to large venues. Its Canadian-built craftsmanship and intuitive usability make it a top choice for professionals needing reliable low-end impact.

PSA2S Features

• Dual 15″ ceramic woofers with 3″ voice coils
• 2400 W program / 4800 W peak power (Class‑D amplifier)
• Max SPL: 134 dB peak / 131 dB continuous
• Frequency response: 30 Hz – 100 Hz (±3 dB)
• Fixed crossover at 100 Hz

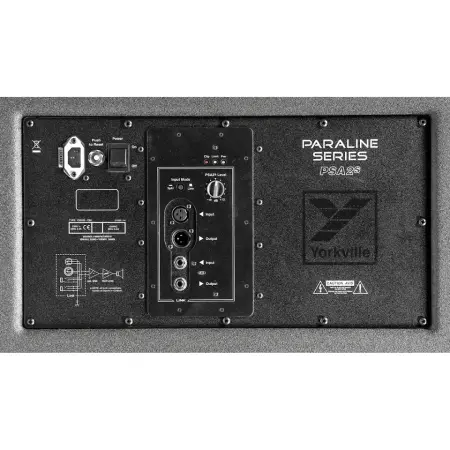

• Line and speaker-level inputs with XLR and ¼″ connectors
• Link output for daisy-chaining
• LED indicators: clip, limit, power
• Heavy-duty cast-aluminum pole mount adaptor
• Rear transport wheels and side/bottom bar handles
• Made in Canada: rugged 15 mm birch plywood, black ultrathane finish

PSA2S Specifications

• Program Power: 2400 W; Peak Power: 4800 W
• Max SPL: 134 dB peak / 131 dB continuous
• Freq. Response: 30 Hz – 100 Hz (±3 dB)
• Crossover: Fixed @ 100 Hz
• Drivers: 2×15″ ceramic woofers, 3″ voice coils
• Impedance: 2×8 Ω load
• Power Consumption: ~660 VA typical / 900 VA max
• Dimensions: 23.75″ × 18″ × 38″ (60.3 × 45.7 × 96.5 cm)
• Weight: 156 lb (70.8 kg)
