Compact Dual 8-Inch Powered Subwoofer for Portable and Installed Sound
The
RCF SUB 808-AS is a high-performance, low-profile active subwoofer designed for tight spaces and precision bass reinforcement. Equipped with dual vented 8" neodymium woofers and a 2000W Class-D amplifier (1000W per channel), it delivers up to 129 dB SPL while maintaining portability, weather resistance, and system versatility.
RCF SUB 808-AS Competitive Differences
- 129 dB max SPL from a compact enclosure
- Dual 8” neodymium woofers with 2.5” voice coils
- Independent Class-D amplification per woofer (2000W total)
- Integrated RDNet for remote DSP management and tuning
- Bass Motion Control for advanced excursion management
- Flexible vertical or horizontal placement with dual pole mounts
- Tour-ready Baltic birch cabinet with weatherproof polyurea coating
- Available in black or white finish to suit install or aesthetic needs
RCF SUB 808-AS Description
The
SUB 808-AS is engineered to deliver powerful low-end in a sleek and versatile form factor. Featuring two vented 8" neodymium drivers, each powered by its own Class-D amplifier channel, the unit offers superb clarity and dynamic low-frequency performance down to 40 Hz. Despite its compact size, the subwoofer generates up to 129 dB SPL, making it suitable for small clubs, mobile DJs, and high-end installed sound systems.
Integrated
RDNet control enables real-time DSP tuning, while

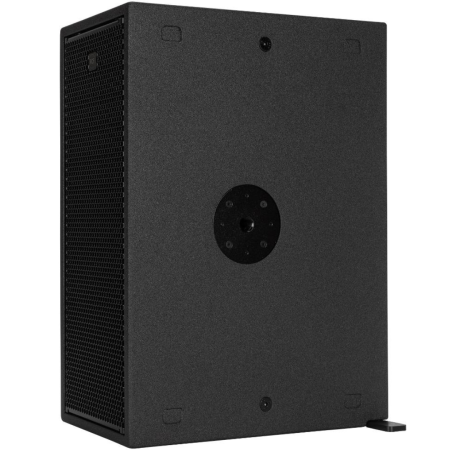

Bass Motion Control ensures optimized transducer excursion for enhanced efficiency and clarity. The cabinet is designed with dual M20 threaded pole mounts, allowing either horizontal or vertical deployment, and includes stabilizing brackets for upright use. Whether used standalone, in an array, or paired with the KX 515-A loudspeaker, the SUB 808-AS is an ideal solution for modern sound reinforcement.
SUB 808-AS Features
- 2000W peak Class-D amplifier (2-channel)
- 2 x 8” neodymium woofers with 2.5” voice coils
- Max SPL: 129 dB
- Frequency Response: 40 Hz – 400 Hz
- Bass Motion Control excursion management
- RDNet onboard for DSP configuration and remote management
- Weatherproof polyurea-coated Baltic birch cabinet
- Dual threaded M20 pole mounts (top and side)
- Black or white finish options
SUB 808-AS Specifications
- Frequency Response: 40 Hz – 400 Hz
- Max SPL: 129 dB
- Transducers: 2 x 8" neodymium woofers, 2.5" voice coils
- Amplifier Power: 2000W peak total (1000W x 2)
- Input Sensitivity: -2 dBu / +4 dBu

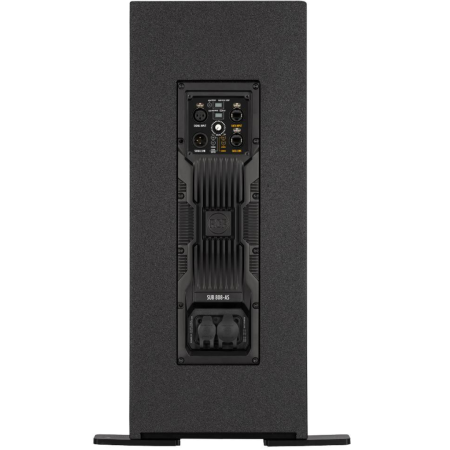

- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Protections: Excursion protection
- Limiter: Fast limiter
- Controls: Volume, RDNet onboard
- Cooling: Convection
- Power Connections: PowerCON TRUE1 TOP in/out
- Cabinet Material: Baltic birch plywood
- Grille: Steel with acoustic cloth
- Hardware: 2x M20 (top and side), 8x M10 (side)
- Handles: 1 side handle
- Color Options: Black or White
- Dimensions (H x W x D): 9.59" x 23.76" x 16.93"
- Weight: 44.09 lbs (20 kg)
- Shipping Dimensions: 11.42" x 18.9" x 25.59"
- Shipping Weight: 46.3 lbs (21 kg)
RCF SUB 808-AS
(RCF 13000898)
