Active Line Array Subwoofer

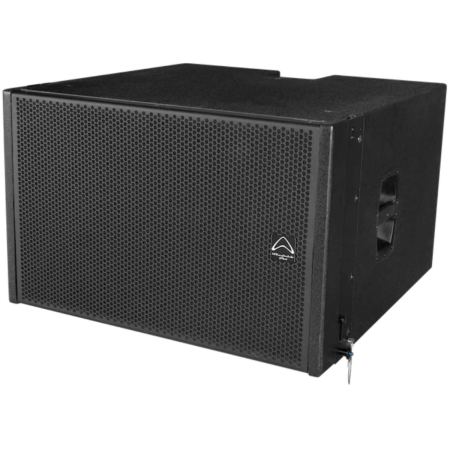

Wharfedale Pro WLA-210SUBA is a dual 15-inch active subwoofer built to provide powerful low-frequency reinforcement for WLA-210A line array systems. With onboard Class D amplification, DSP processing, and rigging support, it is designed for touring, rental, and fixed installation use.
Wharfedale Pro WLA-210SUBA Competitive Differences
- Dual 15-inch active subwoofer designed to pair with WLA-210A array elements
- 2000W continuous and 4000W peak Class D amplification
- 145dB maximum SPL for high-output low-frequency performance
- DSP-based processing with 8 FIR presets for fast system configuration
- Supports flying or ground deployment with integral rigging
Wharfedale Pro WLA-210SUBA Description
The Wharfedale Pro WLA-210SUBA is engineered as the low-frequency partner for the WLA-210A active line array system. Its two custom Wharfedale Pro 15-inch ferrite LF drivers use 4-inch voice coils to deliver deep, punchy bass with strong efficiency and output.
Powered by internal Class D amplification, the WLA-210SUBA provides 2000W continuous power and 4000W peak output. DSP-based processing with 8 FIR presets supports fast tuning for flown, ground-stacked, or mixed system configurations, while protection features help maintain reliability during demanding use.
The birch plywood enclosure is finished in black Tough-Tone and built for professional deployment. With balanced XLR input and link connectors, USB Type B updating, RJ45 RS485 networking, powerCON AC input and loop-through, and included rain hood, the WLA-210SUBA is ready for integrated WLA-210A system setups.
WLA-210SUBA Features
- Dual 15-inch active bass-reflex subwoofer
- Designed for Wharfedale Pro WLA-210A systems
- Two custom Wharfedale Pro 15-inch LF drivers
- 4-inch LF voice coils
- 2000W continuous and 4000W peak power output
- 145dB maximum SPL at 1m, half space
- DSP-based processing with 8 FIR presets
- Class D amplifier design
- Flying and ground deployment options
- Integral rigging with brackets included
- Balanced XLR input and link connectors
- USB Type B update port
- RJ45 RS485 networking
- powerCON AC input and loop-through connectors
WLA-210SUBA Specifications
- Active or Passive: Active
- System Type: Subwoofer
- Configuration: Bass-reflex
- System Continuous Power: 2000W
- System Peak Power: 4000W
- Max SPL: 145dB at 1m, half space
- Frequency Response: 39 Hz - 125 Hz (+/-3 dB)
- Frequency Range: 35 Hz - 163 kHz (-10 dB)
- Driver Brand: Wharfedale Pro
- LF Driver Size: 2 x 15 in
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminum
- LF Voice Coil Size: 4 in
- Input Connector: Balanced XLR socket
- Link Connector: Balanced pin XLR
- Enclosure Material: Birch plywood
- Grille: Steel
- Finish: Black Tough-Tone
- Handles: 2
- Deployment: Flying, ground
- Rigging: Yes
- Brackets Included: Yes
- Sensitivity: 108dB, 2.83V / 1m
- Crossover Frequency: Preset dependent
- Amplifier Design: Class D
- Signal Processing: DSP based, 8 FIR presets
- Driver Protection: RMS, peak limiters, and DC
- Thermal Protection: Amplifier shutdown with auto reset
- DC and Short Protection: Yes
- Power On Protection: Power switch on/off mute
- Limiter Indicator: Red LED
- Signal Indicator: Green LED
- Power/Active Indicator: White LED
- Find Function Indicator: Blue LED
- Input Impedance: Balanced, 10 kΩ
- Input Sensitivity: +4 dBu
- Max Input Level: +18 dBu
- Update Port: USB Type B
- Network: RJ45 RS485
- AC Input Connector: powerCON
- AC Loop Through Connector: powerCON
- Main Power: AC 100-120V / 220-240V, 50/60 Hz automatic
- Power Supply: High efficiency switching mode power supply
- Dimensions: 19.1 x 29.9 x 30.5 in (485 x 760 x 775 mm)
- Weight: 149.9 lb (68 kg)
What's In The Box
- Wharfedale Pro WLA-210SUBA subwoofer
- WLA-RH2 rain hood
- User manual
Wharfedale Pro WLA-210SUBA
(Wharfedale Pro WD-WLA-210SUBA)
