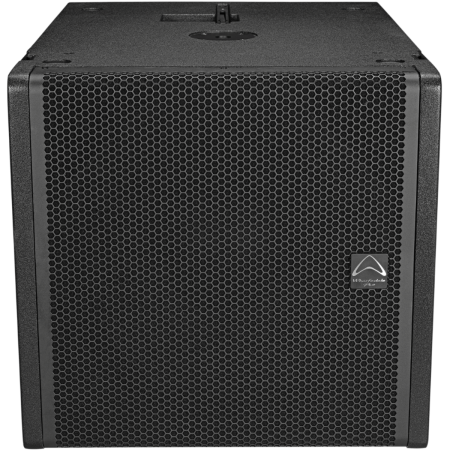

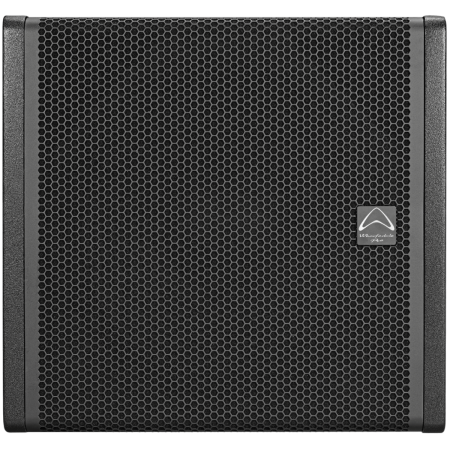

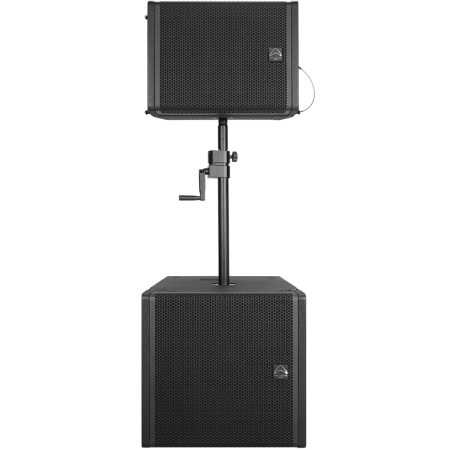

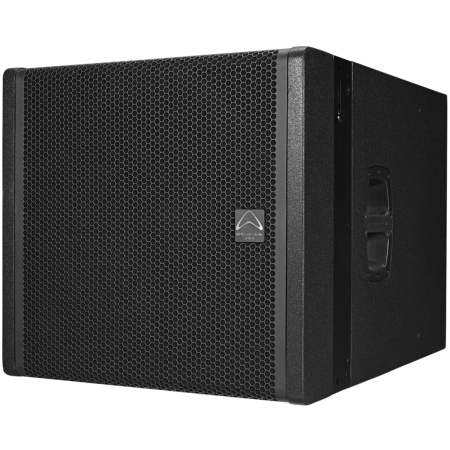

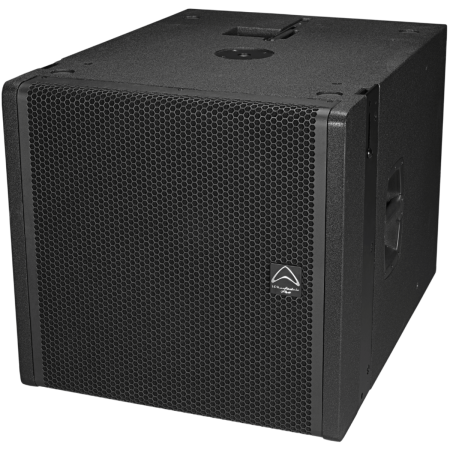

Active Flyable Subwoofer
Wharfedale Pro WLA-118SUBA is an 18-inch active hybrid curvature array subwoofer designed for powerful, controlled low-frequency performance in WLA-1A touring and installation systems. With built-in Class D amplification, DSP processing, and integrated rigging, it provides a flexible bass solution for flown or ground-stacked deployments.
Wharfedale Pro WLA-118SUBA Competitive Differences
- Active 18-inch subwoofer with integrated Class D amplification
- 2200W continuous and 4400W peak power output
- Built-in DSP with 8 FIR presets for WLA-1A system deployment
- 136dB maximum SPL for strong low-frequency output
- Integrated 3-point rigging for flown or ground configurations
Wharfedale Pro WLA-118SUBA Description
The Wharfedale Pro WLA-118SUBA is built to deliver deep, defined bass for professional WLA-1A array systems. Its custom 18-inch Beyma ferrite driver uses a 4-inch Duo voice coil to provide efficient low-frequency performance with clarity and impact.
Internal DSP processing simplifies setup with 8 FIR presets, while the Class D amplifier delivers 2200W continuous power and 4400W peak output. RMS, peak limiter, DC, short, and thermal protection systems help maintain reliable operation in demanding touring and fixed-install environments.

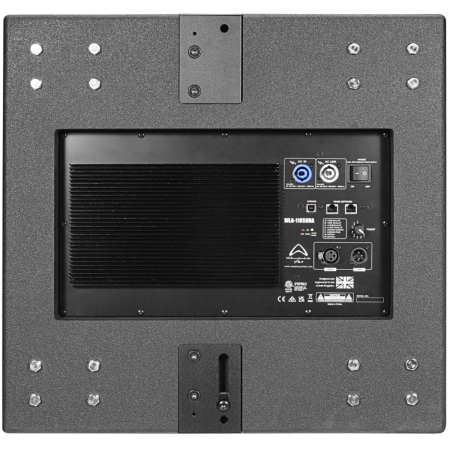

The rugged birch plywood cabinet is finished in black Tough-Tone and protected by a powder-coated perforated steel grille. With integrated 3-point rigging, an M20 pole mount, balanced XLR input and link connections, USB Type B updating, and RJ45 RS485 networking, the WLA-118SUBA is designed for flexible professional deployment.
WLA-118SUBA Features
- 18-inch active hybrid curvature array flyable subwoofer
- Built-in Class D amplifier
- 2200W continuous and 4400W peak output
- 136dB maximum SPL at 1m, half space
- Custom Beyma 18-inch ferrite driver
- 4-inch LF Duo voice coil
- DSP-based signal processing with 8 FIR presets
- Bass-reflex cabinet design
- Integrated 3-point rigging
- Flying and ground deployment options
- M20 pole mount
- Balanced XLR input and link connectors
- USB Type B update port
- RJ45 RS485 network connection
- RMS, peak limiter, DC, short, and thermal protection
WLA-118SUBA Specifications
- Active or Passive: Active
- System Type: Subwoofer
- Configuration: Bass-reflex
- System Continuous Power: 2200W
- System Peak Power: 4400W
- Max SPL: 136dB at 1m, half space
- Frequency Response: 35 Hz - 125 Hz (+/-3 dB)
- Frequency Range: 28 Hz - 160 Hz (-10 dB)
- Driver Brand: Beyma
- LF Driver Size: 18 in
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminum
- LF Voice Coil Size: 4 in
- Input Connector: Balanced XLR socket
- Link Connector: Balanced XLR socket
- Cabinet Type: Rectangle
- Enclosure Material: Birch plywood
- Grille: Powder-coated perforated steel
- Finish: Black Tough-Tone
- Handles: 1 side (2 pcs)
- Deployment: Flying, ground
- Pole Mount: M20
- Rigging: Integrated 3-point rigging
- Sensitivity: 103dB, 2.83V / 1m
- Crossover Frequency: Preset dependent
- Amplifier Design: Class D
- Signal Processing: DSP based, 8 FIR presets
- Driver Protection: RMS, peak limiters, and DC
- Thermal Protection: Amplifier shutdown with auto reset
- DC and Short Protection: Yes
- Clip Limiter: Yes
- Limiter Indicator: Red LED
- Signal Indicator: Green LED
- Power/Active Indicator: White LED
- Find Function Indicator: Blue LED
- Input Impedance: Balanced, 10 kohms
- Input Sensitivity: +4 dBu
- Max Input Level: +18 dBu
- Update Port: USB Type B
- Network: RJ45 RS485
- Main Power: AC 100-120V and 220-240V, 50/60 Hz automatic
- Power Supply: High efficiency dual switching mode power supply
- Dimensions: 21.1 x 22.3 x 29.9 in (535 x 566 x 760 mm)
- Weight: 131.8 lb (59.8 kg)
What's In The Box
- Wharfedale Pro WLA-118SUBA subwoofer
- WLA-RH5 rain hood
- User manual
Wharfedale Pro WLA-118SUBA
(Wharfedale Pro WD-WLA-118SUBA)
