32x32 Dante Audio Interface for Allen & Heath SQ Mixers and AHM Processors
Unlock seamless digital audio networking with the
Allen & Heath AH-M-SQ-SDANTE32-A, a 32x32 Dante expansion module designed for integration with SQ-series mixers and AHM matrix processors. Supporting both 96kHz and 48kHz operation, this high-resolution audio interface allows for multichannel recording, digital splits, and real-time playback directly into your Dante-enabled system. Ideal for venues, broadcast studios, and large-scale installations, it brings flexible, high-quality audio routing to your fingertips.
Allen & Heath AH-M-SQ-SDANTE32-A Competitive Differences
- 32x32 channels of Dante I/O for high-fidelity audio transmission
- Selectable sample rates: 96kHz or 48kHz for flexible system compatibility
- Dual etherCON ports with redundant and switchable network modes
- Integrated control network bridge for simplified device connectivity
- Compatible with Dante Domain Manager and AES67 standards
- Locking etherCON connectors for secure professional connections
- Ideal for connecting to DT series Dante expanders and stageboxes
Allen & Heath AH-M-SQ-SDANTE32-A Description
The
AH-M-SQ-SDANTE32-A Dante card by Allen & Heath offers a high-performance, 32x32-channel interface specifically designed for SQ-series digital mixers and AHM audio matrix processors. It provides both input and output routing over a Dante network, allowing effortless integration with amplifiers, preamps, wireless systems, and other Dante-enabled hardware.
With support for both 96kHz and 48kHz sample rates, the module easily adapts to different network standards while maintaining excellent audio quality. This makes it especially valuable in professional environments where audio fidelity is critical, such as recording studios, concert venues, and corporate AV installations.
The dual-port configuration includes redundant and switched modes, ensuring reliable operation and network resilience. A built-in internal control network bridge further simplifies network design and control connectivity.

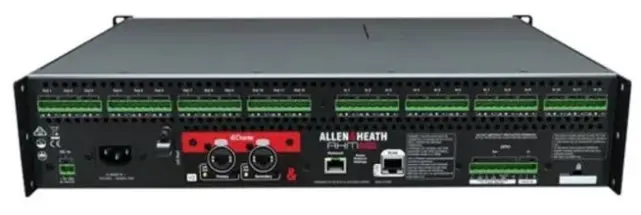

When used with SQ mixers, the card enables multitrack recording and playback via Dante Virtual Soundcard (sold separately). In AHM installations, the card facilitates seamless integration with Allen & Heath’s DT series Dante expanders such as the DT22, DT02, DT20, DT164-W, and DT168, broadening your system’s capabilities without compromising quality or flexibility.
AH-M-SQ-SDANTE32-A Features
- 32x32 channels of high-resolution Dante audio I/O
- Selectable 96kHz or 48kHz sample rate operation
- Supports digital audio recording and playback via Dante Virtual Soundcard

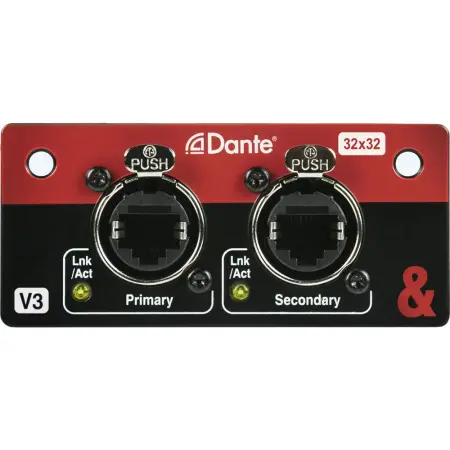

- Dual etherCON ports with redundant and switched network modes
- Internal control network bridge simplifies system integration
- Locking etherCON connectors for robust and secure connections
- Compatible with Allen & Heath SQ mixers and AHM processors
- Fully AES67 compliant
- Dante Domain Manager ready
AH-M-SQ-SDANTE32-A Specifications
- Compatibility: Allen & Heath SQ Series Mixers, AHM Matrix Processors
- Connectors: 2 x locking etherCON (Primary / Secondary)
- Sample Rate: 48kHz or 96kHz selectable
- Environmental Resistance: No
- Package Weight: 0.765 lb
- Box Dimensions: 6.7 x 5.4 x 4.1 in (L x W x H)
- UPC: 6938122252875
What's in the Box
- Allen & Heath AH-M-SQ-SDANTE32-A Dante 32x32 Module
- User documentation
Allen and Heath AH-M-SQ-SDANTE32-A
(Allen & Heath 32x32 Dante card for SQ/AHM)
