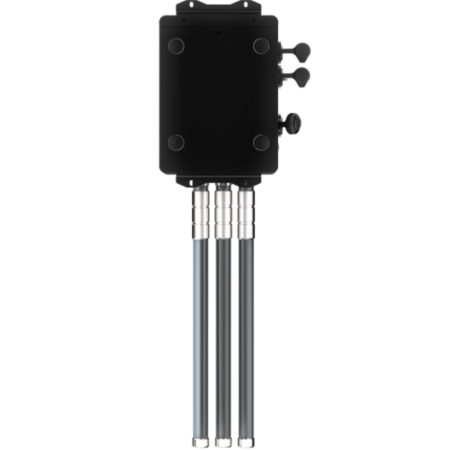

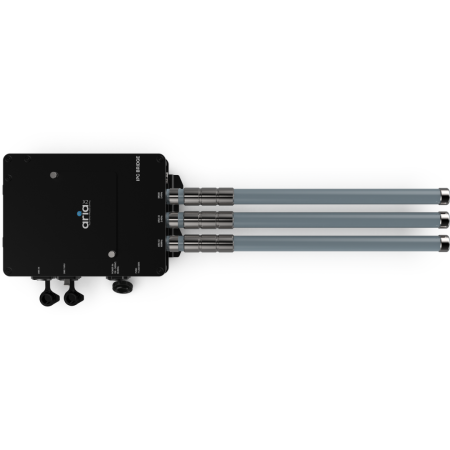

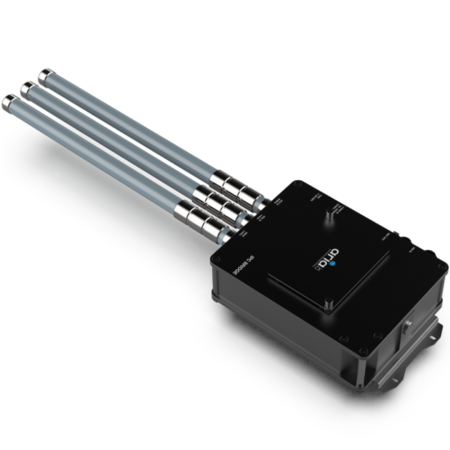

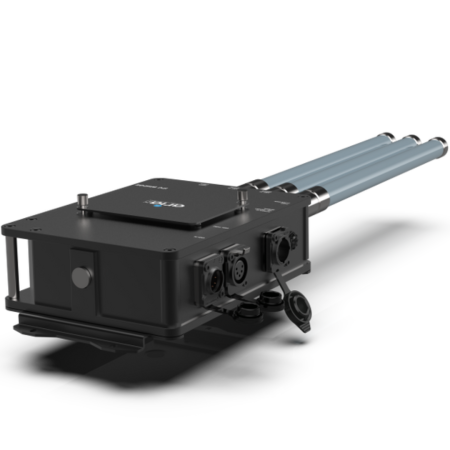

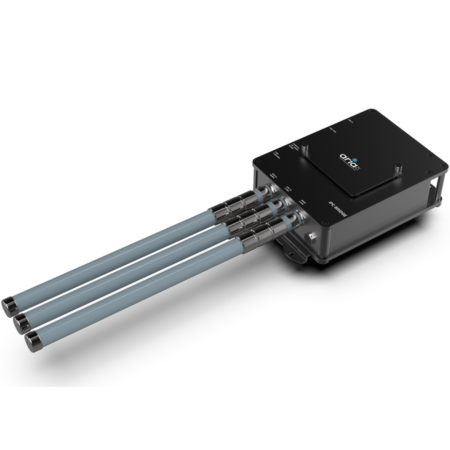

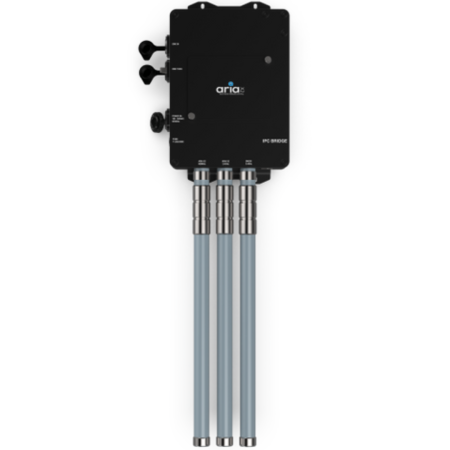

American DJ Aria X2 IPC Bridge

Wireless Lighting Control Bridge for DMX Systems

The American DJ Aria X2 IPC Bridge is a cutting-edge wireless DMX bridge that connects the Aria X2 serial protocol to existing wireless DMX systems, including ADJ WiFLY, Elation eFly, Magmatic MagFly, and Acclaim Aria. Engineered for seamless integration and future-proof reliability, this unit delivers high-performance control for lighting professionals seeking advanced wireless flexibility in demanding environments.

American DJ Aria X2 IPC Bridge Competitive Differences

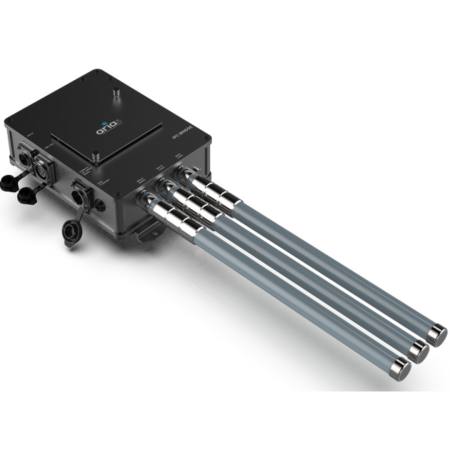

• Supports both 2.4GHz and 915/868/863MHz frequency bands for flexible deployment worldwide
• Bluetooth 5.2 with BLE allows app-based configuration and individual DMX channel control
• OTA firmware updates for fixtures and bridge via Aria cloud repository
• IP67-rated housing ideal for outdoor and harsh environments
• Fully compatible with Aria X2 Mesh Protocol for future wireless mesh network expansion

American DJ Aria X2 IPC Bridge Description

The Aria X2 IPC Bridge empowers lighting control systems with a robust wireless link between Aria’s new serial protocol and legacy wireless DMX formats. With a rugged IP67-rated enclosure and advanced RF agility, this unit ensures resilient communication even in crowded RF environments. Integrated BLE lets users configure settings from a mobile app, while OTA updates ensure system firmware and fixture compatibility are always current.

The bridge is built with future-ready technologies like frequency hopping and mesh networking. As the system evolves, users can expect enhanced reliability, reduced interference, and simplified network management. Designed with professional-grade standards in mind, the Aria X2 IPC Bridge is suitable for touring rigs, permanent installations, or mobile event setups.

Aria X2 IPC Bridge Features

• Supports single DMX universe
• Wireless to DMX and DMX to wireless conversion
• 2.4GHz, 863–870MHz (EU), and 902–928MHz frequency bands
• Bluetooth 5.2 BLE for mobile configuration
• Compatible with ADJ WiFLY, Elation eFly, MagFly, and Acclaim Aria
• Over-the-air (OTA) updates for firmware and fixture software
• Adaptive frequency hopping (future update)
• Aria X2 Mesh Protocol ready

Aria X2 IPC Bridge Specifications

• Power Input: 100-240V AC, 50/60Hz
• Power Consumption: 2.2W
• DMX Ports: 5-pin XLR input & thru
• Wireless Bands: 2.4GHz, 902-928MHz, 863-870MHz
• Enclosure: IP67-rated rugged housing
• Operating Temp: -4°F to 113°F (-20°C to 45°C)
• Humidity: Max 75%
• Dimensions: 9.53" x 6.32" x 3.25"
• Weight: 3.7 lbs (1.66 kg)

ADJ Aria X2 IPC Bridge (American DJ AX2152)
