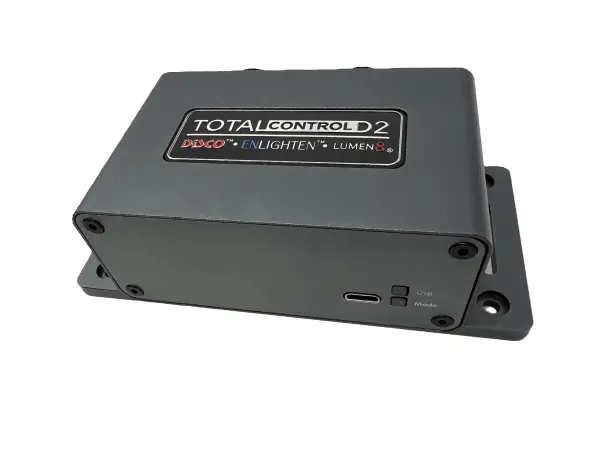

Professional USB to DMX Interface with RDM and Multi-Software Compatibility
The
Mega Lite Total Control D2 is a next-generation USB-C to DMX interface built for demanding lighting professionals. Designed to work seamlessly with Enlighten, Disco, and Lumen8 software platforms, this compact yet powerful device supports up to 28 universes and offers enhanced protection, advanced diagnostics, and RDM functionality for modern DMX workflows.
Mega Lite Total Control D2 Competitive Differences
- Unlocks 28 universes when used with compatible software (Disco, Enlighten, and Lumen8)
- Dual 5-pin DMX outputs assignable to any universe for maximum control flexibility
- Enhanced DMX surge protection safeguards connected fixtures and equipment
- Patent-pending DMX error detection alerts for shorts, bad fixtures, and long runs
- Built-in RDM support for remote configuration of RDM-capable fixtures
- Integrated LED indicators display active software and error status
- Modern USB-C interface with included USB-C to USB-A adapter for universal compatibility
- Rugged anodized aluminum housing with multiple mounting options (DIN rail and surface)
- Field-upgradeable firmware for future improvements and feature enhancements
Mega Lite Total Control D2 Description
The
Total Control D2 from Mega Lite is a future-forward USB to DMX interface engineered for reliability, versatility, and power. Supporting up to 28 universes through its compatibility with Enlighten, Disco, and Lumen8 software, this interface gives lighting designers the flexibility to scale from small to massive productions with ease.
It features dual assignable 5-pin DMX outputs and offers robust surge protection to prevent equipment damage. Its RDM capability allows you to remotely address and configure RDM-capable fixtures, streamlining setup and troubleshooting. An LED mode indicator clearly shows which software is currently outputting DMX (red for Disco, blue for Enlighten, magenta for Lumen8), and an error LED alerts users to potential wiring or fixture issues in real time.
Constructed with a rugged anodized aluminum enclosure, the Total Control D2 is built to withstand the rigors of live event production. Versatile mounting options make it easy to integrate into control racks or truss systems, while its USB-C connection ensures future-proof, high-speed data transfer.
Total Control D2 Features
- USB to DMX interface with dual 5-pin outputs
- Supports up to 28 universes with compatible software
- Integrated RDM functionality for remote addressing and configuration
- Built-in error detection alerts for cable shorts, fixture faults, and signal interference
- Mode indicator LEDs show which control software is active
- Enhanced DMX surge protection for fixture safety
- Rugged anodized aluminum housing with multiple mounting options
- USB-C connection with included adapter for USB-A compatibility
- Field-upgradable firmware for ongoing improvements
Total Control D2 Specifications
- Software Compatibility: Enlighten, Disco, Lumen8
- Universes Supported: Up to 28 (per software)
- DMX Outputs: 2x 5-pin XLR, assignable to any universe
- Connection: USB-C (includes USB-C to USB-A adapter)
- Error Detection: Red LED indicator for shorts, fixture errors, signal issues
- RDM: Fully supported
- Firmware: Field-upgradable
- Housing: Anodized aluminum
- Mounting: DIN rail and flat surface options
What's In The Box
- 1x TotalControl D2 DMX Interface
- 1x USB-C Cable with USB-A Adapter
- 1x USB Drive with User Manual and Tutorial Videos
Mega Lighting Total Control D2
(Mega Lite Total Control D2)
