Swisson XMT-500 Basic Set

DMX/RDM & Ethernet Tester

$810.00 Available
$0 Tax $79 Back or Join VIP for upfront discounts.

(more)

DMX, RDM & Ethernet Diagnostic Tool

The Swisson XMT-500 Basic Set is a handheld DMX, RDM, and Ethernet diagnostic tool designed for lighting technicians, system integrators, and production professionals. Supporting Art-Net, sACN, DMX512, and RDM protocols, it combines signal generation, network monitoring, fixture configuration, and cable testing in one portable device. Its full-color IPS TFT display, USB-C rechargeable battery, and included testing accessories make it useful for troubleshooting lighting systems in venues, theaters, touring productions, and installations.

Swisson XMT-500 Basic Set Competitive Differences

  • Art-Net and sACN Integration: Bidirectional network communication through a dedicated etherCON port enables sending and receiving lighting data across DMX universes.
  • Advanced DMX and RDM Diagnostics: Detailed signal timing analysis helps identify communication errors, flickering issues, and potential data collisions.
  • Integrated Cable Testing: Automatically checks pin connections in 3-pin and 5-pin XLR cables and RJ45 Ethernet cables, including installed cable runs using the included test dongle.
  • Remote Fixture Management: RDM functionality allows technicians to discover, identify, and configure compatible lighting fixtures.
  • Full-Color IPS TFT Display: The 2.4-inch sunlight-readable screen provides clear access to signal information, diagnostics, and device settings.
  • Rechargeable Field Operation: A built-in 3200mAh lithium-ion battery with USB-C charging supports portable testing without continuous external power.
  • Complete Basic Testing Kit: Includes a protective pouch, USB-C cable, cable test dongle, and XLR adapters for working with different lighting connections.

Swisson XMT-500 Basic Set Description

The Swisson XMT-500 provides comprehensive control and monitoring capabilities for conventional DMX lighting systems and Ethernet-based lighting networks. Its dedicated etherCON connection supports Art-Net and sACN communication, allowing technicians to transmit lighting values, monitor incoming network data, and troubleshoot connected devices. The integrated DMX and RDM functions provide a practical solution for testing fixtures and diagnosing control system problems.

Detailed DMX and RDM timing analysis helps technicians investigate signal stability and communication errors. The integrated cable tester checks XLR and RJ45 connections for wiring problems, while the included test dongle makes it possible to verify permanently installed cable runs. These functions are especially useful when troubleshooting complex lighting installations, preparing touring equipment, or maintaining entertainment venues.

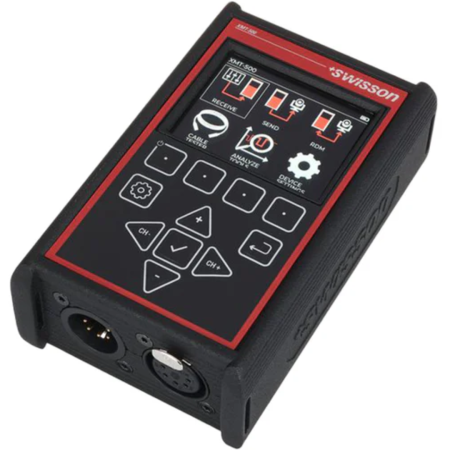

Designed for portable operation, the XMT-500 features a compact handheld enclosure with Neutrik XLR and etherCON connections. Its 2.4-inch full-color IPS TFT display provides clear visibility of diagnostic information, while multifunction soft keys and an intuitive menu system simplify navigation. The internal lithium-ion battery recharges through USB-C, reducing dependence on external power during field testing.

The Basic Set includes essential accessories for DMX and Ethernet troubleshooting, including a cable testing dongle, XLR adapters, USB-C cable, and protective carrying pouch. This combination makes the XMT-500 suitable for lighting designers, rental companies, service technicians, system integrators, and production crews working with both traditional DMX cabling and modern lighting networks.

XMT-500 Features

  • Handheld DMX512, RDM, Art-Net, and sACN diagnostic and control tool
  • Bidirectional Art-Net and sACN communication for transmitting and receiving lighting data
  • Supports Art-Net versions 1 through 4 and sACN, including draft version 0.2
  • DMX signal generation and real-time monitoring of incoming DMX data
  • RDM device discovery, identification, and remote configuration
  • Detailed DMX and RDM signal timing diagnostics
  • Integrated XLR and RJ45 cable tester with automatic pin connection verification
  • Included test dongle for testing installed DMX and Ethernet cable runs
  • Dedicated Neutrik etherCON network connection
  • Neutrik 5-pin XLR male and female connections
  • 10/100 Mbps Ethernet connectivity with automatic negotiation and auto MDI-X
  • 2.4-inch full-color, sunlight-readable IPS TFT display
  • Intuitive menu navigation with multifunction soft keys
  • Built-in 3200mAh lithium-ion rechargeable battery
  • USB-C charging for portable operation
  • Compact handheld design with passive cooling
  • Firmware-updatable platform designed to support future functionality and protocol updates
  • Includes protective pouch, USB-C cable, cable test dongle, and XLR adapters

XMT-500 Specifications

  • Product Type: DMX, RDM, and Ethernet Diagnostic Tool
  • Kit Version: Basic Set
  • Supported Protocols: DMX512, RDM, Art-Net, sACN
  • Art-Net Compatibility: Versions 1 through 4
  • sACN Compatibility: Standard sACN and draft version 0.2
  • DMX Standard: ANSI E1.11
  • RDM Standard: ANSI E1.20
  • Signal Interface Standard: EIA-485
  • DMX Input: 1 x 5-Pin XLR Female
  • DMX Output: 1 x 5-Pin XLR Male
  • Network Connection: 1 x Neutrik etherCON (RJ45)
  • Ethernet: 10BASE-T / 100BASE-TX, Auto-Negotiating, Auto MDI-X
  • USB Connection: 1 x USB-C Charging Port
  • Display: 2.4-inch Full-Color IPS TFT
  • Power Source: Built-In Rechargeable Battery
  • Battery Type: Lithium-Ion
  • Battery Voltage: 3.6V
  • Battery Capacity: 3200mAh
  • USB-C Input Power: 5V DC, 7.5W
  • Cooling: Passive
  • Operating Temperature: -4 to 122°F (-20 to 50°C)
  • Dimensions (L x W x H): 4.8 x 3.0 x 1.7 in (122 x 75 x 43 mm)
  • Weight: Approximately 1 lb (445 g)
  • Package Weight: 1.77 lb (0.80 kg)
  • Package Dimensions: 7.5 x 7.4 x 3.5 in (190.5 x 188 x 88.9 mm)
  • Manufacturer Article Number: 10 30 50

What's In The Box

  • Swisson XMT-500 DMX, RDM & Ethernet Diagnostic Tool
  • USB-C Charging Cable

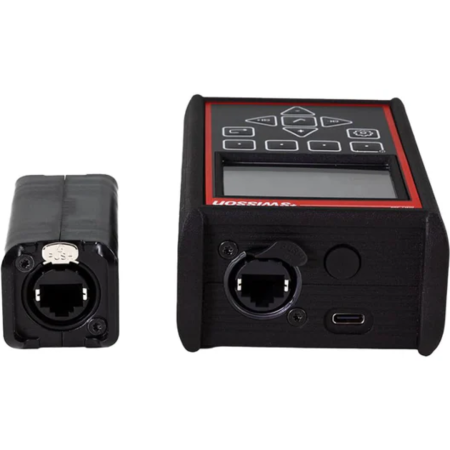

  • RJ45 / 5-Pin XLR Cable Test Dongle
  • 3-Pin XLR Male to 5-Pin XLR Female Adapter
  • 5-Pin XLR Male to 3-Pin XLR Female Adapter
  • Basic Protective Carrying Pouch

Swisson XMT-500 (Swisson XMT-500 SET)

Battery Life Built-in 3200mAh lithium-ion battery mAh
Connectivity Protocols DMX512, RDM, Art-Net, sACN
Power Consumption 5V DC, 7.5W USB-C input power W

Brand Swisson
Name Swisson XMT-500 Basic Set
Primary Category DMX, RDM & Ethernet Diagnostic Tool

Dimensions 4.8 x 3.0 x 1.7 in (122 x 75 x 43 mm) mm
Included Accessories Protective pouch, USB-C cable, cable test dongle, XLR adapters
Weight Approximately 1 lb (445 g) g

Screen / Display 2.4-inch full-color IPS TFT, sunlight-readable inch

Warranty Length Not specified years

Ideal for lighting technicians, system integrators, and production professionals needing a versatile, portable tool for troubleshooting and maintaining both traditional DMX and modern Ethernet-based lighting networks. It simplifies diagnostics with integrated cable testing and detailed signal analysis.

The device transmits and receives lighting data over DMX, RDM, Art-Net, and sACN protocols via dedicated XLR and etherCON connections. It performs real-time signal monitoring, timing diagnostics, and cable pin verification using an included test dongle. The built-in battery and intuitive interface enable field operation without external power.

Combines multiple lighting protocols and diagnostic functions in a single handheld device with integrated cable testing and remote fixture management. The inclusion of a sunlight-readable IPS TFT display and USB-C rechargeable battery enhances portability and usability in field conditions.

The Swisson XMT-500 Basic Set is a handheld diagnostic tool for DMX, RDM, and Ethernet lighting systems. It supports Art-Net, sACN, DMX512, and RDM protocols, combining signal generation, network monitoring, fixture configuration, and cable testing in one portable device. It features a 2.4-inch full-color IPS TFT display, USB-C rechargeable lithium-ion battery, and includes essential accessories for troubleshooting lighting systems.

Supports bidirectional Art-Net and sACN communication via dedicated etherCON port; advanced DMX and RDM diagnostics with detailed signal timing analysis; integrated cable testing for XLR and RJ45 cables including installed runs; remote fixture management via RDM; compact handheld design with passive cooling; firmware-updatable platform; includes protective pouch, USB-C cable, cable test dongle, and XLR adapters.

Supports DMX512 (ANSI E1.11), RDM (ANSI E1.20), Art-Net versions 1-4, sACN standard and draft 0.2; 1 x 5-pin XLR female input, 1 x 5-pin XLR male output; 1 x Neutrik etherCON (RJ45) network connection with 10/100 Mbps Ethernet; 2.4-inch full-color IPS TFT display; built-in 3200mAh lithium-ion battery rechargeable via USB-C; dimensions 122 x 75 x 43 mm; weight approximately 445 g.
