Wash Lighting Fixture

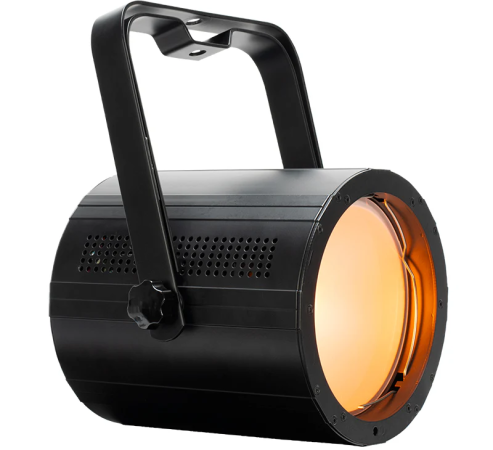

ADJ COB Cannon LP200STX is a powerful and compact wash lighting fixture designed for versatile stage, studio, and architectural applications. Utilizing a 200W RGBAL COB LED engine, it delivers vibrant colors, high CRI, and smooth output with no color shadows. A wide 80-degree beam angle and included lens kit (40° and 50°) make it suitable for broad coverage or more focused lighting needs.
ADJ COB Cannon LP200STX Competitive Differences
- Built-in Aria X2 wireless system for app-based control and OTA updates
- RGBAL LED engine with tunable white (2300K–9900K) and CRI >90
ADJ COB Cannon LP200STX Description
The
COB Cannon LP200STX from ADJ is built around a 200-Watt Chip-On-Board (COB) RGBAL LED, producing smooth, powerful output with a wide spectrum of rich colors. Its added lime chip enhances color rendering and achieves a CRI of over 90, making it ideal for live events, film, and broadcast environments that demand high-fidelity lighting.
The fixture features an 80-degree native beam angle for large-area coverage, and it comes with 40-degree and 50-degree lenses for tighter beam control. Whether placed on the ground or mounted using its scissor yoke or included Omega bracket, it adapts easily to different setups.
Control flexibility is a highlight, with embedded Aria X2 wireless management enabling full app-based configuration, DMX channel mode switching, firmware updates, and more. It also includes 10 selectable DMX channel modes, 64 color macros, and 6 dimming modes to meet the needs of professionals.
Rear-panel 5-pin DMX and locking power In/Out connections support daisy chaining, and the unit is flicker-free for video applications. Optional barn doors are available to further refine its output, making the COB Cannon LP200STX a reliable and expandable solution for lighting designers.
Model Features
- 200W RGBAL COB LED with >90 CRI and tunable white (2300–9900K)
- Aria X2 wireless system with mobile app control and OTA firmware updates
- 80° native beam angle with included 40° and 50° lens kit
- 10 DMX channel modes and 64 built-in color macros
- Flicker-free operation with adjustable refresh rates (900–25,000Hz)
- Scissor yoke for ground or truss mounting; Omega bracket included
Model Specifications
- Max SPL: N/A (lighting product)
- Power Draw: 175W max
- Dimensions: 13 x 10.3 x 7.5 in (330 x 262 x 190 mm, with bracket)
- Weight: 9.45 lb (4.3 kg)
- UPC: 810087373849
What's In The Box
- Main unit
- 50-degree lens
- 40-degree lens
- UCIR24 Wireless IR Remote
- Power cord
- Scissor yoke
- Omega bracket
ADJ LP200STX COB Cannon
(American DJ LP-200 STX Canon)
