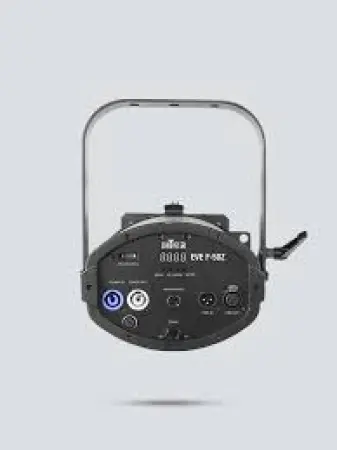

Chauvet DJ EVE F-50Z LED Fresnel – Compact, Warm, and Versatile
The
Chauvet DJ EVE F-50Z is a stylish, compact LED Fresnel designed for small to medium theatrical productions, houses of worship, studios, and stage lighting. It delivers a warm white beam with high CRI (92) to ensure natural, accurate color rendering of people and scenery.
With a powerful 50W LED, this fixture includes a
manual zoom from 17° to 50°, allowing versatile beam shaping for long or short throws. It’s D-Fi™ USB compatible for wireless Master/Slave or DMX control (D-Fi USB sold separately), and features powerCON-compatible in/out for convenient power linking.
Top Features
- Soft-edged, warm white Fresnel spotlight (3500 K)
- High CRI of 92 for natural color rendering on stage
- Manual zoom range from 17° to 50° beam angle
- Wireless control via D-Fi USB for cable-free operation
- Standalone mode available (no DMX required)
- Power linking with powerCON-compatible in/out
- Included barn doors to control light spill
- Gel frame for adding color (included)
Specifications
- DMX Channels: 1 or 3
- DMX Connectors: 3-pin XLR
- Light Source: 1x 50W warm white LED (50,000 hours)
- Color Temperature: 3500 K
- CRI: 92
- Beam Angle: 17° (narrow) to 50° (wide)
- Zoom Type: Manual
- Illuminance:
- 17°: 4,780 lux @ 2m, 853 lux @ 5m
- 50°: 998 lux @ 2m, 156 lux @ 5m
- Power Linking: 16 units @ 120V; 26 units @ 230V
- Power and Current:
- 60 W, 0.5 A @ 120 V, 60 Hz
- 58 W, 0.3 A @ 230 V, 50 Hz
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Size: 11.1 x 8.3 x 13 in (281 x 212 x 328 mm)
- Weight: 8.41 lb (3.9 kg)
- Accessory Holder/Gel Frame Size: 6.25 in (158 mm)
- Mounting: M12 Bracket Hole
- Approvals: CE, MET
What’s Included
- Chauvet DJ EVE F-50Z Fixture
- Power cord
- Barn doors
- Gel frame
- Quick Reference Guide
- Warranty card
Optional Accessories
- D-Fi USB for wireless control (sold separately)
Chauvet EVEF50Z
(Chauvet DJ EVE F50Z)
