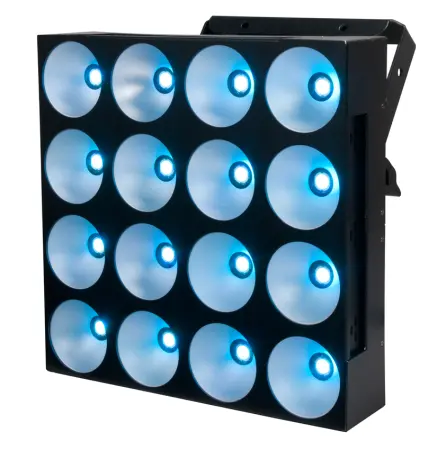

The ADJ Dotz Matrix is a high-output LED wash and blinder fixture featuring sixteen 30W RGB COB LEDs arranged in a 4x4 matrix. Designed for stage lighting, concerts, nightclubs, and theatrical productions, it combines smooth RGB color mixing with a wide 60-degree beam angle for powerful, evenly distributed lighting. With individual pixel mapping, built-in programs, flicker-free operation, and flexible DMX control, this fixture delivers both vibrant color washes and dynamic visual effects.
The ADJ Dotz Matrix combines Chip On Board (COB) LED technology with a versatile 4x4 matrix design to deliver powerful RGB lighting effects. Its sixteen 30W TRI LEDs produce smooth, evenly blended colors, while the 60-degree beam angle provides broad coverage for stages, clubs, concert venues, and theatrical environments. The fixture can function as a conventional wash light, audience blinder, or individually controlled pixel matrix for animated lighting designs.
Advanced pixel mapping capabilities allow lighting designers to control individual LEDs through supported DMX modes, creating dynamic patterns, color sequences, and chase effects. Four pixel-flip options provide additional flexibility when arranging multiple fixtures. Built-in color macros, preset programs, sound-active operation, and manual RGB controls also make it suitable for productions that do not require continuous external DMX control.
For precise lighting control, the Dotz Matrix features electronic dimming from 0 to 100%, LED strobe and pulse effects, and five selectable dimming curves. Its flicker-free operation and 3.6 kHz refresh rate make it useful for performances that involve video recording or broadcasting. A four-button LCD control display provides convenient access to fixture settings, while RDM compatibility supports remote device configuration and management.
Built for entertainment lighting applications, the fixture features a metal housing, fan cooling, and a single mounting yoke. Both 3-pin and 5-pin XLR connections support DMX linking, while locking AC power input and output connections simplify multi-fixture installations. An auto-sensing 100-240V power supply provides flexibility for use in different electrical environments.
| App Control | No |
| Control Interfaces | DMX-512, RDM, Auto, Sound Active, Manual RGB Dimmer, Static Color |
| Onboard DSP | Yes |
| Preset Storage | Built-in color macros and preset lighting programs |
| Remote Control | Yes (via DMX and RDM) |
| Screen / Display | 4-Button LCD |
| Wireless Capabilities | None |
| Beam Angle | 60 Degrees degrees |
| LED Type | 16 x 30W COB TRI RGB LEDs |
| Power Consumption | 430W (All LEDs at Full Output) W |
| Voltage Range | AC 100-240V, 50/60 Hz V |
| Wattage | 30W per LED, 16 LEDs total W |
| Brand | ADJ |
| Name | ADJ Dotz Matrix |
| Primary Category | LED Wash/Blinder Matrix Fixture |
| Build Material | Metal |
| Dimensions | 13.75 x 6.75 x 14.75 in mm |
| Mounting Options | Single Yoke |
| Weight | 18 lb kg |
| DMX Channel Modes | 3, 6, 7, 48, and 53 Channels channels |
| LED Refresh Rate | 3.6 kHz Hz |
| ETL Listed | Yes |
| Warranty Length | Not specified years |
