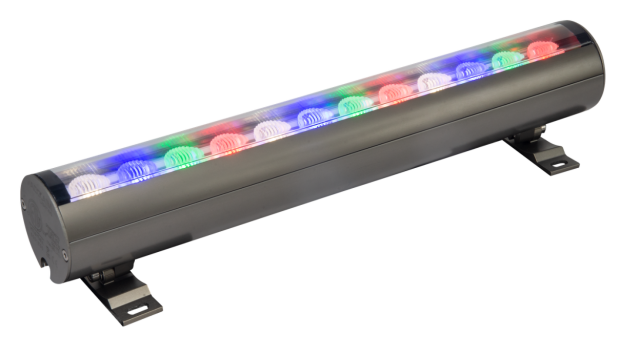

Aqua Graze is a high output, submersible, linear LED fixture. It features a unique internal configuration which features IP68 sealed components allowing for submersion up to 10’ (3m). Available in multiple color temperatures of white and color-changing versions, it is ideal for outdoor linear grazing, fountains, ponds, landscape applications, and is UL certified for Pool & Spa applications.
FEATURES:
Dive right in
Submersible up to 10' (3M) including pool and spa applications
Above or below
Aqua Graze can be mounted above or below water for maximum placement flexibility
Ready for the elements
IP68 (submersible) and IK06 impact protection standard
SPECIFICATIONS:
Emitters 2700K, 3000K, 3500K, 4000K, DW (2400K-5500K), RGBW (W=3000K, 4000K or 6000K) or RGBA
Optics 10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 90° x 90°, 10° x 60° or 30° x 60°
Output Up to 729 lumens per linear foot (3000K, 10° x 60°)
Lumen maintenance L70 150,000 hours (@ 25º C)
Control 0-100% dimming through DMX (via Aqua Driver 150 or 400)
Fixtures per driver Aqua Driver 150: up to 4 fixtures; Aqua Driver 400: up to 8 fixtures (see page 5)
Operating voltage 24VDC, constant current via Aqua Driver 150 or 400. Aqua Drivers require 100-277VAC, 50/60Hz
Power consumption 1’: 12W 4’: 48W
Connection 98’ (30m) STOW cable included (sealed at the fixture end, terminal block at the driver end)
Mounting Two 53° swivel mounting brackets included
Material Anodized oxidation aluminum body with glass top lens
Finish Dark gray, marine environment ready
Ambient temperature range -40º F to 122º F (-40º C to 50º C)
Ingress protection IP68, submersible to 10’ (3m)
Impact protection IK08, protection against 5 joule impact (40cm distance) - walk over rated
Warranty 5 years, limited
Weight 1’: 1.5 lbs (0.68 kg) 4’: 6 lbs (2.72 kg)
Dimensions LxWxH: 12” or 48” x 2.56” x 2.95” (305 or 1220 x 65 x 75mm).
ACCLAIM LIGHTING Aqua Graze
(Acclaim QG-281-AKLN)
