Battery-Powered Pixel LED Wash Light

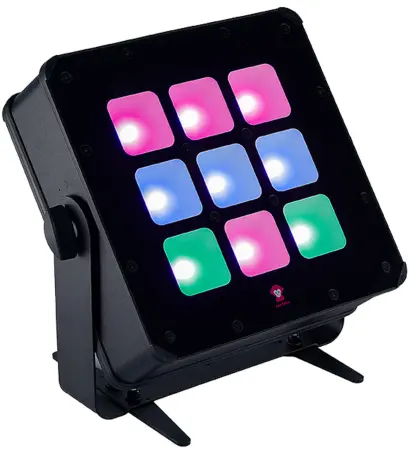

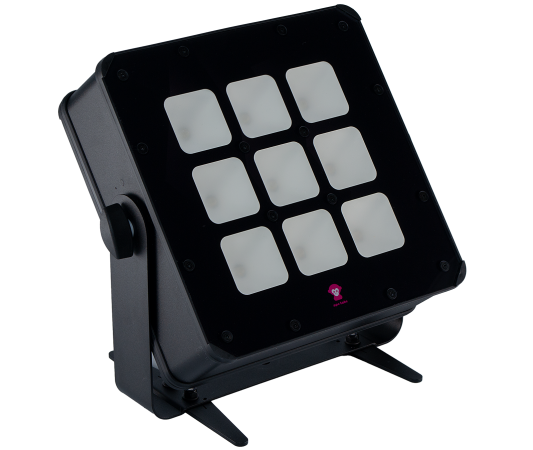

The Ape Labs Marvel Pix Wash is a high-output, professional-grade LED wash designed for ultra-wide coverage on cycs, stages, and dance floors—indoors or out. With 9 individually controllable 18W pixel LEDs and factory-installed 150° wash optics, Marvel Pix Wash delivers perfectly homogeneous color, app-based control, and CRMX wireless DMX inside a rugged, fanless IP65-rated housing.
Ape Labs Marvel Pix Wash Competitive Differences
- 9 x 18W RGB + Lime + Warm White (2700K) + Cool White (6000K) pixel-controllable LEDs (162W total)
- 150° ultra-wide wash optics for seamless cyc/stage/dance floor coverage
- Full multipixel control with selectable DMX modes: 6ch, 7ch, 12ch, 36ch, and 54ch
- Battery-powered (Li-Ion 96Wh) with 8 hours runtime (also operational while plugged in)
- Flicker-free DUAL-DRIVE LED control (no PWM) — ideal for camera use and live events
- Wireless CRMX (LumenRadio) + Ape Labs CONNECT + RF Remote control (up to 1-mile wireless range)
- Solid-state, fanless operation with passive cooling for silent performance
- 360° rotatable bracket with locking notches and dual mounting safety (bracket or M6 eyelets)
- Automatic signal repeater extends wireless signal an additional ~0.75 miles (≈1200 m) between fixtures
- Cloud-based setting storage and firmware updates with the Ape Labs app ecosystem
- Theft protection with motion sensor & audible alarm
MusikMode: 1-Button Light Show
The renowned Ape Labs MusikMode stands unrivaled in the industry. With zero programming required, a single button press effortlessly synchronizes all Ape Labs products in the room (regardless of SKU) to collaborate and create a constantly evolving light show perfectly timed to the music. This isn't the typical "sound active" mode you've seen before; it's a genuine light show that would challenge even a professional lighting designer to replicate through DMX programming.
DMX-Like Control via Grouping
Not a fan of DMX? No problem. While all Ape Labs lights come equipped with wireless DMX receivers, most users prefer controlling them with the intuitive iOS/Android app or RF remote. These control options allow for easy grouping, where multiple lights (regardless of SKU and with no limit on quantity) can be set to one of four groups. You can change colors, adjust brightness, set programs, tweak speed or strobe settings, and more—all without affecting lights in other groups. Additionally, you can control multiple groups simultaneously. With the app, you can create scenes that allow all groups to be independently set with just the press of a button. (To use the app, 'Connect' is required and is sold separately.)
Ape Labs Ecosystem
- Grouping: Super Easy & Flexible Control
- MusikMode: 1-Button Light Show
- 1-Mile Wireless Range w/ App & DMX
- 200ft Wireless Range w/ RF Remote
- Up to 48hr Battery Life w/ Power-Save Mode
- Wireless Range Increases as More Fixtures are Added
- Color Macros Mixed by USA Event Industry Leaders
- RGBaW LEDs w/ Super High Efficiency
- Flicker-Free Mode for Video Recording
- High CRI Output, Ultra Vivid Colors
- Automatic Integration & Syncing w/ Every SKU
- On-The-Fly Programming, Remote Addressing, Smart Sync
- Cross-Platform and Community Sharing of Programs
- Solid-State, Fanless Operation
- Free Firmware Updates for Life
- Compact and Lightweight
- Premium Components for Superior Quality
- 100% Designed, Engineered & Hand Assembled in Germany
- 3-Year USA Warranty
Ape Labs Marvel Pix Wash Description
The Ape Labs Marvel Pix Wash is built for lighting professionals who need massive, even coverage with pixel-level creativity. Each of its nine 18W LEDs combines RGB, Lime, Warm White (2700K), and Cool White (6000K) for vivid colors and clean tunable whites at CRI 90. Purpose-built 150° optics ensure a smooth, shadow-free wash that excels on cycs, scenery, wide stages, and dance floors.
Control is comprehensive and wireless-first: operate via smartphone app (iOS & Android through Ape Labs CONNECT), CRMX wireless DMX (LumenRadio), or the Ape Labs RF Remote. DUAL-DRIVE technology eliminates PWM flicker, making Pix Wash ideal for video capture and broadcast environments. Its integrated 96Wh battery delivers 8 hours of runtime at standard output (70% of max brightness), with up to 48 hours available via power-save mode, and it can run continuously while on AC power at max brightness.
Rugged and ready for the road, the IP65-rated aluminum housing features a scratch-resistant acrylic front (Optial HC), a 360° rotatable bracket with fold-out locking feet, and dual safety points. Networking smarts include automatic signal repeating up to ~0.75 miles (≈1200 m) between fixtures, cloud storage of settings, pairing for secure connections, theft protection, and regular feature updates.
Marvel Pix Wash Features
- Battery-powered outdoor LED wash (IP65)
- 9 x 18W RGB + WW (2700K) + cW (6000K) + Lime LEDs with full pixel control
- LED Type: 7mm 6-in-1 RGBLwWcW chips
- Color rendering index (CRI): 90
- 150° wash optics
- Perfectly homogeneous light output and color mixing
- 8-hour battery runtime (Li-Ion 96Wh)
- TRUE1 mains input for continuous operation with auto power-fail backup
- Flicker-free LED control with DUAL-DRIVE (no PWM)
- 360° rotatable bracket with locking feet
- Mounting via bracket or dual M6 eyelets for safety
- Automatic signal repeater (up to ~0.75 mile / ≈1200 m range)
- Full group management (4 groups) via remote, app, or 4 DMX universes
- Cloud-based lamp setting storage
- Fanless, solid-state design
- Free software updates for fixture, CONNECT, and app
- Theft protection with motion sensor & audible alarm
Marvel Pix Wash Specifications
- Number of LEDs: 9
- LED Power: 18W per LED (162W total)
- Color Temperatures: Warm White 2700K, Cool White 6000K
- CRI (Ra): 90
- Beam Angle: 150°
- Dimmable: Yes
- Battery Type: Li-Ion 96Wh
- Battery Runtime: 8 hours (up to 48 hours with power-save)
- Fanless: Yes
- Flicker-Free: Yes (DUAL-DRIVE, no PWM)
- Housing: Aluminum with scratch-resistant acrylic glass (Optial HC)
- Protection Class: IP65 (waterproof and UV-resistant)
- Mounting Options: 360° bracket w/ fold-out feet and 2x M6 eyelet safety points
- Control Methods: App (via CONNECT), RF remote, CRMX, Wireless DMX; backup color set via on-fixture button
- Control Range (typical): Up to ~1 mile (app & DMX with repeaters), ~200 ft RF remote
- Signal Repeater: Yes (up to ~0.75 mile / ≈1200 m)
- Radio Frequency: 2.400 – 2.485 GHz
- Output Power: Max. 20 dBm (≈100 mW EIRP)
- DMX Channel Modes:
- 6ch – 8-bit: R,G,B,wW,cW,L
- 7ch – Ape Labs Mode
- 12ch – 16-bit: R,R-fine,G,G-fine,B,B-fine,wW,wW-fine,cW,cW-fine,L,L-fine
- 36ch – 9-pixel: RGBwW
- 54ch – 9-pixel: RGBwWcWL
- Power Input: TRUE1 Loop (100–240 VAC, 50/60Hz)
- Operating Voltage (lamp): 12V
- Charging Voltage (lamp): 16–19V
- Charging Current: ~1A
- Dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
- Weight: 8.2 lb (3.7 kg)
- Color: Black
- Origin: Made in Germany
What’s In The Box
- Marvel Pix Wash fixture with yoke
- TRUE1 charging/power cable
- M6 safety eyelet
- Controller is NOT included with single fixture purchases. Either an ApeRemote or CONNECT is required for operation.
