Battery-Powered Outdoor Pixel Wash Uplights for Events & Installations
The
Ape Labs Marvel Pix Wash TourBox is a professional-grade LED lighting package designed for wide-area color washing with full pixel control. With four high-output, battery-powered fixtures and a durable charging TourBox, it’s built for production teams, DJs, and event designers seeking fast deployment, wireless control, and wide beam dispersion for large-scale coverage.
Ape Labs Marvel Pix Wash TourBox Competitive Differences
- Includes 4x Marvel Wash IP65-rated battery fixtures + charging TourBox
- Each fixture features 9 x 18W RGBWW-NW-L LEDs with ultra-wide 150° beam angle
- Battery-powered operation (14 hours runtime) or continuous AC power
- Flicker-free, fanless performance via DUAL-DRIVE technology—ideal for live video and recording
- Full pixel mapping and multipixel effect presets controllable via app or remote
- Multiple wireless control options: RF remote, App via CONNECT, CRMX, or Ape Labs Wireless DMX
- Smart anti-theft motion sensor with audible alarm
- IP65 protection for outdoor reliability in all weather conditions
- Homogeneous color mixing with CRI 90 for accurate, natural tones
Ape Labs Marvel Pix Wash TourBox Description
The
Ape Labs Marvel Pix Wash TourBox delivers a wide 150° beam angle, providing seamless wall and surface coverage for architectural lighting, event ambiance, and stage design. Designed with mobility in mind, each fixture features integrated batteries (96 Wh Li-Ion) and is housed in an IP65-rated enclosure, allowing it to operate for up to 14 hours on a single charge—indoors or outdoors.
Equipped with 9 individually controlled 18W LEDs per unit, these fixtures offer vibrant RGB color mixing along with warm white (2700K), cool white (6000K), and lime for extended tonal range and rich pastels. Whether you’re working with DMX consoles, smartphones via the Ape Labs CONNECT, or simply using the included remote, control is intuitive and wireless.

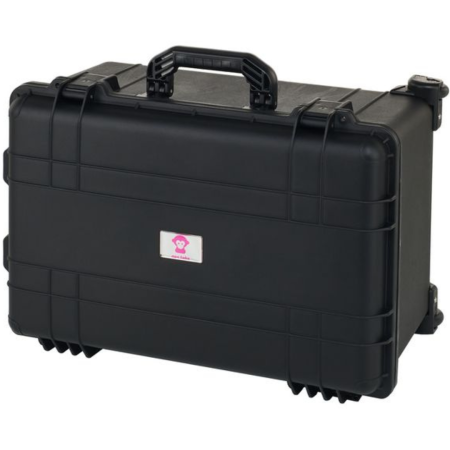

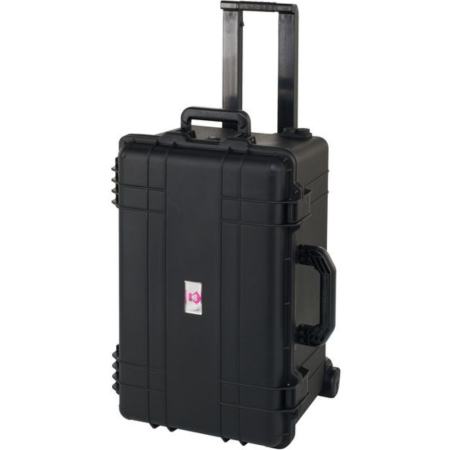

The TourBox serves as both a road case and a smart charging station, ensuring your lights are always show-ready. With cloud-based storage of personal settings, music sync mode, theft protection, and no fans or PWM flicker, the Marvel Pix Wash is a true workhorse for modern productions.
Marvel Pix Wash TourBox Features

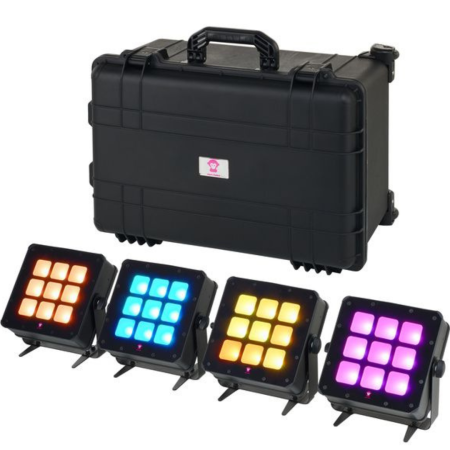

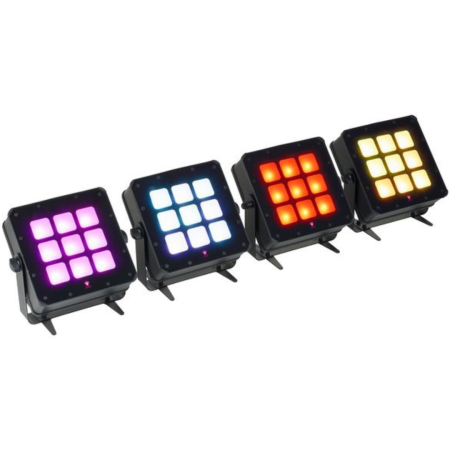

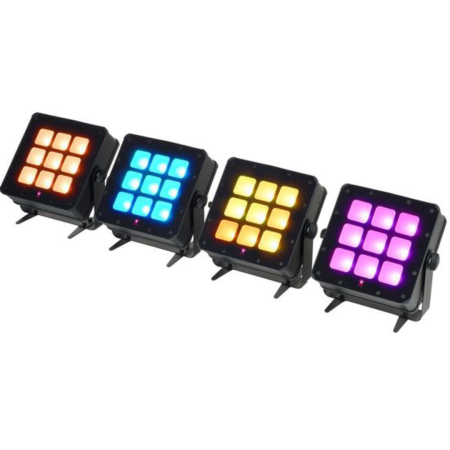

- Set of 4 Marvel Pix Wash LED fixtures + charging TourBox

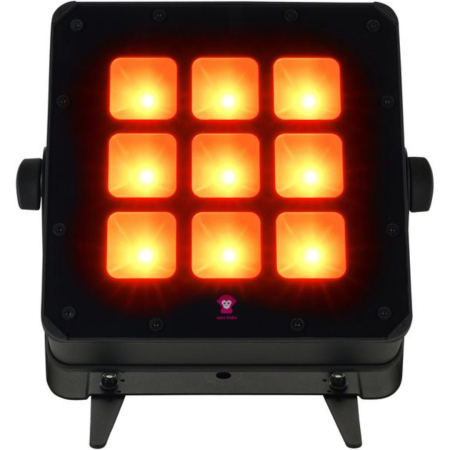

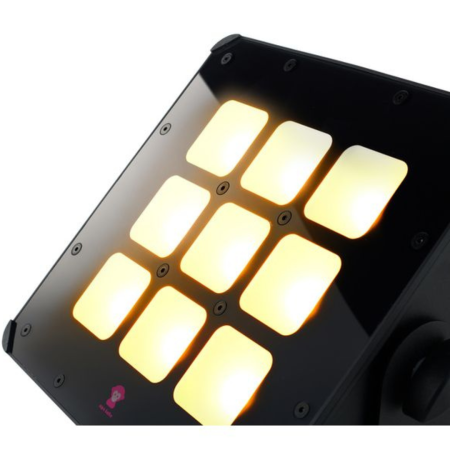

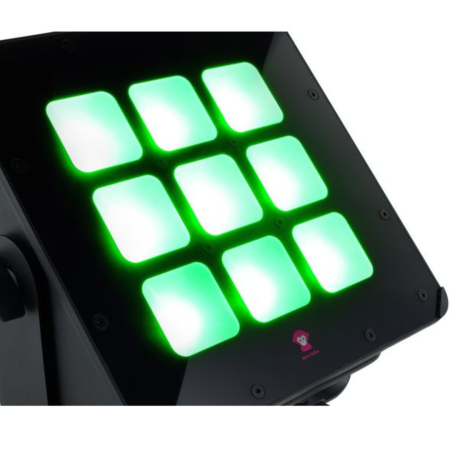

- 9 x 18W LEDs per unit (RGB + Warm White + Cool White + Lime)
- Ultra-wide 150° beam angle for full-area wash effects
- Fanless, flicker-free LED control (DUAL-DRIVE technology)
- IP65 rated for indoor and outdoor use
- Approx. 14-hour battery runtime or continuous mains operation
- 96 Wh Li-Ion battery per lamp
- Wireless control via Remote, App (via CONNECT), CRMX, or Ape Labs DMX
- Automatic wireless signal repeating (up to 1200m)
- Built-in theft protection system with motion sensor and alarm
- Music-responsive mode and device pairing options

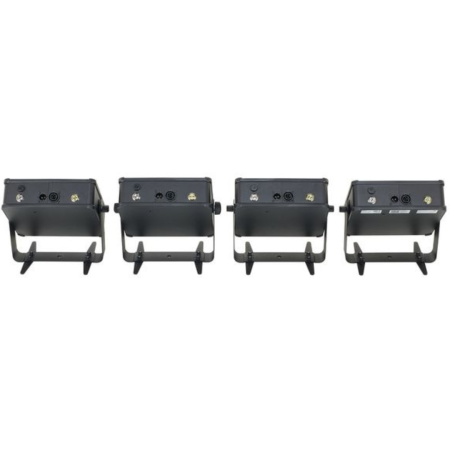

- 360° adjustable bracket with fold-out feet and M6 safety eyelets
- Software and firmware updates available free of charge
Marvel Pix Wash TourBox Specifications
- LED Count per fixture: 9
- Power per LED: 18W
- Color Mixing: RGB + WW (2700K) + NW (6000K) + Lime
- Beam Angle: 150°
- CRI: 90
- DMX Modes: 6ch (8-bit), 12ch (16-bit), 7ch (Ape Labs), 36ch & 54ch pixel modes
- Wireless Frequency: 2.4 – 2.485 GHz (max. 100 mW)

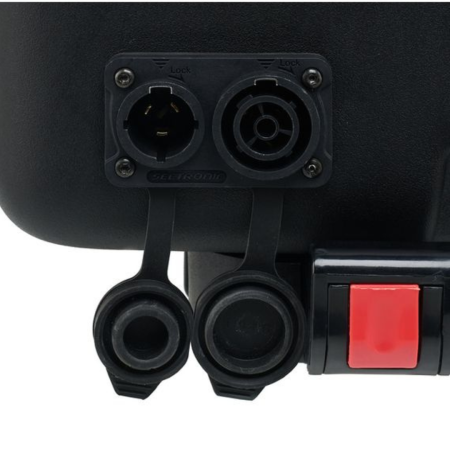

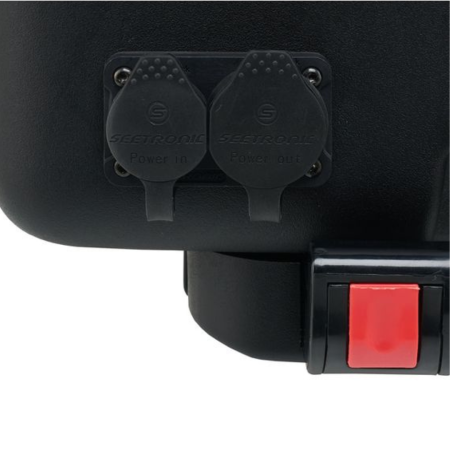

- Power Input: Power Twist TR1, 100–240 VAC
- IP Rating: IP65 (dust & water resistant)
- Battery: 96 Wh Li-Ion per spotlight
- Housing Color: Black
- Fanless: Yes
- Per spotlight dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
- Per spotlight weight: 8.2 lb (3.7 kg)
- TourBox dimensions: 25.6 x 17.3 x 14.6 in (65 x 44 x 37 cm)
- Total weight (box + lamps): 50.7 lb (23 kg)

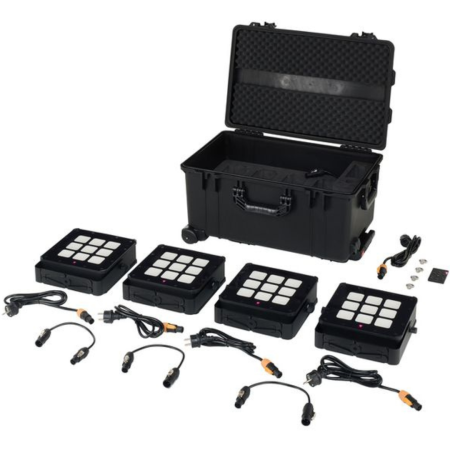

What's In The Box

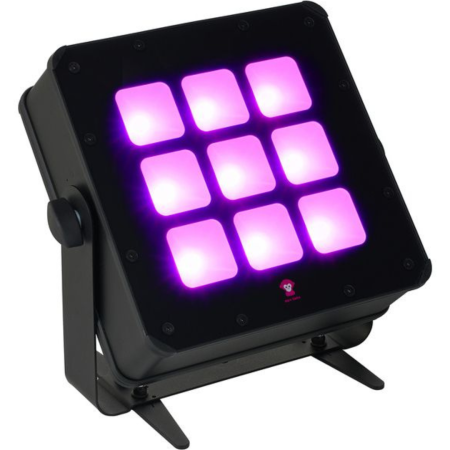

- 4x Marvel Pix Wash Spotlights

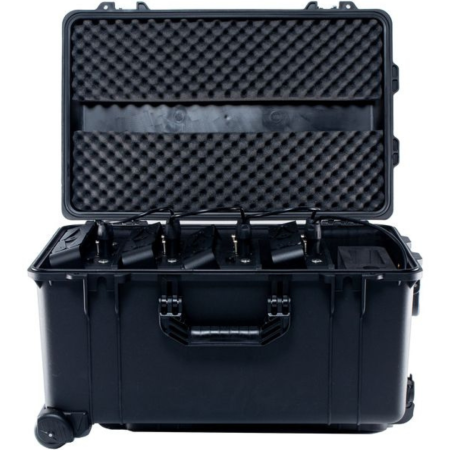

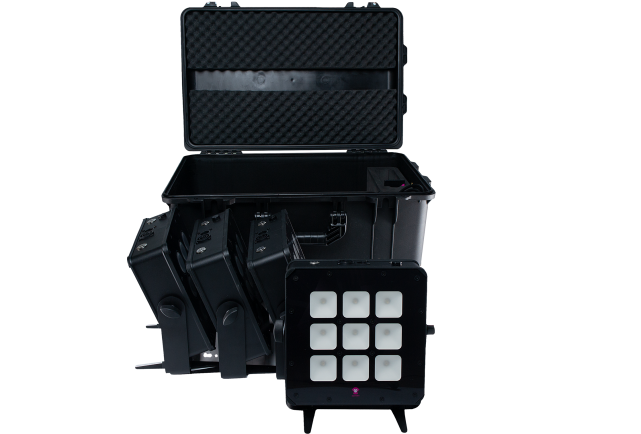

- 1x Ape Labs Marvel Box (TourBox with integrated charger)
- 1x Remote Control
- Mounting brackets with M6 eyelets
Ape Labs Marvel Pix Wash TourBox Manual
Click here for the official product page and manual
