Battery-Powered Pixel LED Spotlight
The Ape Labs Marvel Pix is a high-output, professional-grade LED spotlight designed for precision uplighting, pixel effects, stage wash, and architectural lighting—indoors or out. With 9 individually controllable 18W pixel LEDs, the Marvel Pix offers perfectly homogeneous color mixing, app-based control, and CRMX wireless DMX integration, all inside a rugged, fanless IP65-rated housing.
Ape Labs Marvel Pix Competitive Differences
- 9 x 18W RGB + Lime + Warm White (2700K) + Cool White (6000K) pixel-controllable LEDs (162W total)
- Full multipixel control with selectable DMX modes: 6ch, 7ch, 12ch, 36ch, and 54ch
- Integrated 15° beam angle; optics swappable to 10°, 25°, or 45°
- Battery-powered (Li-Ion 96Wh) with 8 hours runtime (also operational while plugged in)
- Flicker-free DUAL-DRIVE LED control (no PWM) — ideal for camera use and live events
- Wireless CRMX (LumenRadio) + Ape Labs CONNECT + RF Remote control (up to 1-mile wireless range)
- Solid-state, fanless operation with passive cooling for silent performance
- 360° rotatable bracket with locking notches and dual mounting safety (bracket or M6 eyelets)
- Automatic signal repeater extends wireless signal an additional 0.75 miles between fixtures
- Cloud-based setting storage and firmware updates with the Ape Labs app ecosystem
- Theft protection with motion sensor & audible alarm
MusikMode: 1-Button Light Show
The renowned Ape Labs MusikMode stands unrivaled in the industry. With zero programming required, a single button press effortlessly synchronizes all Ape Labs products in the room (regardless of SKU) to collaborate and create a constantly evolving light show perfectly timed to the music. This isn't the typical "sound active" mode you've seen before; it's a genuine light show that would challenge even a professional lighting designer to replicate through DMX programming.
DMX-Like Control via Grouping
Not a fan of DMX? No problem. While all Ape Labs lights come equipped with wireless DMX receivers, most users prefer controlling them with the intuitive iOS/Android app or RF remote. These control options allow for easy grouping, where multiple lights (regardless of SKU and with no limit on quantity) can be set to one of four groups. You can change colors, adjust brightness, set programs, tweak speed or strobe settings, and more—all without affecting lights in other groups. Additionally, you can control multiple groups simultaneously. With the app, you can create scenes that allow all groups to be independently set with just the press of a button. (To use the app, 'CONNECT' is required and is sold separately.)
Ape Labs Ecosystem
- Grouping: Super Easy & Flexible Control
- MusikMode: 1-Button Light Show
- 1-Mile Wireless Range w/ App & DMX
- 200ft Wireless Range w/ RF Remote
- Up to 48hr Battery Life w/ Power-Save Mode
- Wireless Range Increases as More Fixtures are Added
- Color Macros Mixed by USA Event Industry Leaders
- RGBaW LEDs w/ Super High Efficiency
- Flicker-Free Mode for Video Recording
- High CRI Output, Ultra Vivid Colors
- Automatic Integration & Syncing w/ Every SKU
- On-The-Fly Programming, Remote Addressing, Smart Sync
- Cross-Platform and Community Sharing of Programs
- Solid-State, Fanless Operation
- Free Firmware Updates for Life
- Compact and Lightweight
- Premium Components for Superior Quality
- 100% Designed, Engineered & Hand Assembled in Germany
- 3-Year USA Warranty

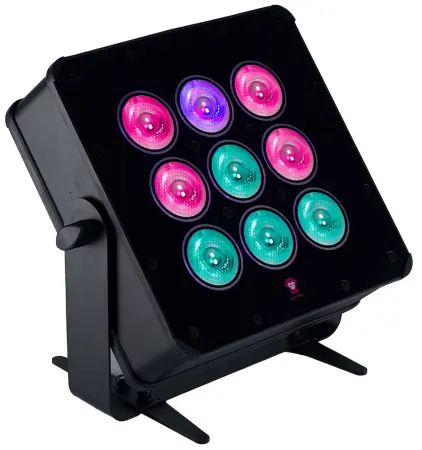

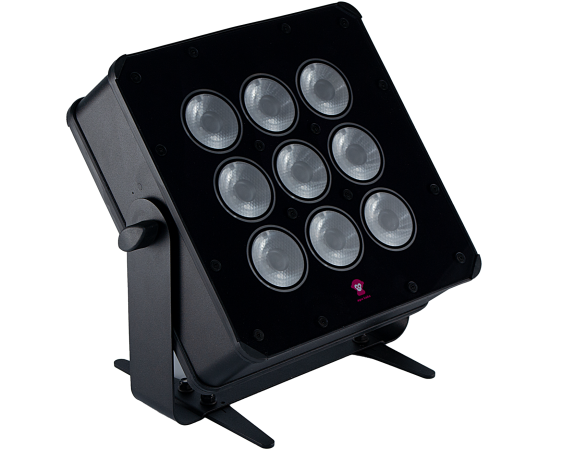

Ape Labs Marvel Pix Description
The Ape Labs Marvel Pix is built for lighting professionals who require unmatched flexibility and power in a compact form factor. Featuring 9 individually addressable 18W LEDs, each combining RGB, Lime, Warm White (2700K), and Cool White (6000K), this fixture delivers crisp, vibrant colors and clean whites with a CRI of 90. Its optical system ensures a smooth and homogeneous wash, ideal for both uplighting and long-throw applications.
The Marvel Pix supports complete control via smartphone app (iOS & Android via Ape Labs CONNECT), CRMX wireless DMX (LumenRadio), and Ape Labs’ RF Remote. Its DUAL-DRIVE system eliminates PWM flicker, making it an excellent choice for video, livestreaming, or camera-heavy events. Its built-in 96Wh battery powers the fixture for 8 hours on standard output (70% of max brightness), with up to 48 hours of runtime while using power save mode.
This IP65-rated fixture features a rugged aluminum housing with scratch-resistant acrylic glass (Optial HC material), a 360° rotatable bracket with fold-out feet, and secure mounting options. Whether you’re lighting a wedding venue, washing a dance floor, or on tour, the Marvel Pix offers pixel-level control and reliability in any setting. Future-proof by design, with free firmware updates and regularly added community-driven features — plus upcoming AI enhancements already in the Ape Labs software pipeline.
Marvel Pix Features
- Battery-powered outdoor LED spotlight (IP65)
- 9 x 18W RGB + WW (2700K) + cW (6000K) + Lime LEDs with full pixel control
- LED Type: 7mm 6-in-1 RGBLwWcW chips
- Color rendering index (CRI): 90
- Integrated 15° optics (swappable to 10°, 25°, or 45°)
- Perfectly homogeneous light output and color mixing
- 8-hour battery runtime on standard output (Li-Ion 96Wh)
- TRUE1 mains input for continuous operation with auto power-fail backup
- Flicker-free LED control with DUAL-DRIVE (no PWM)
- 360° rotatable bracket with locking feet
- Mounting via bracket or dual M6 eyelets for safety
- Automatic signal repeater (up to 0.75 mile range)
- Full group management (4 groups) via remote, app, or 4 DMX universes
- Cloud-based lamp setting storage
- Fanless, solid-state design
- Free software updates for fixture, CONNECT, and app
- Theft protection with motion sensor & audible alarm
Marvel Pix Specifications
- Number of LEDs: 9
- LED Power: 18W per LED (162W total)
- Color Temperatures: Warm White 2700K, Cool White 6000K
- CRI (Ra): 90
- Beam Angle: 15° (default); swappable to 10°, 25°, 45°
- Dimmable: Yes
- Battery Type: Li-Ion 96Wh
- Battery Runtime: 8 hours on standard, up to 48 hours on battery save mode
- Fanless: Yes
- Flicker-Free: Yes (DUAL-DRIVE, no PWM)
- Housing: Aluminum with scratch-resistant acrylic glass (Optial HC)
- Protection Class: IP65 (waterproof and UV-resistant)
- Mounting Options: 360° bracket w/ fold-out feet and 2x M6 eyelet safety points
- Control Methods: App (via CONNECT), RF remote, CRMX, Wireless DMX
- Control Range: Up to 1-mile (app & DMX), 200ft (remote)
- Signal Repeater: Yes (up to 0.75 mile range)
- Radio Frequency: 2.400 – 2.485 GHz
- Output Power: Max. 20 dBm (≈ 100mW EIRP)
- DMX Channel Modes:
- 6ch – 8-bit: R,G,B,wW,cW,L
- 7ch – R,G,B,wW, Dimmer, Speed, MusikMode
- 12ch – 16-bit: R,R-fine,G,G-fine,B,B-fine,wW,wW-fine,cW,cW-fine,L,L-fine
- 36ch – 9-pixel: RGBwW
- 54ch – 9-pixel: RGBwWcWL
- Power Input: TRUE1 Loop (100–240 VAC, 50/60Hz)
- Operating Voltage: 12V (lamp), 16–19V (charging), ~1A charging current
- Dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
- Weight: 8.2 lb (3.7 kg)
- Color: Black
- Made in Germany
What’s In The Box
- Marvel fixture with yoke
- TRUE1 charging cable
- M6 safety eyelet
- Controller is NOT included with single fixture purchases. Either an ApeRemote or CONNECT is required for operation.
Ape Labs Marvel Pix
(Ape Labs Marvel Spot Pixel)
