JMaz Electro Panel W18

$1,300.00 Available
$0 Tax $253 Back or Join VIP for upfront discounts.

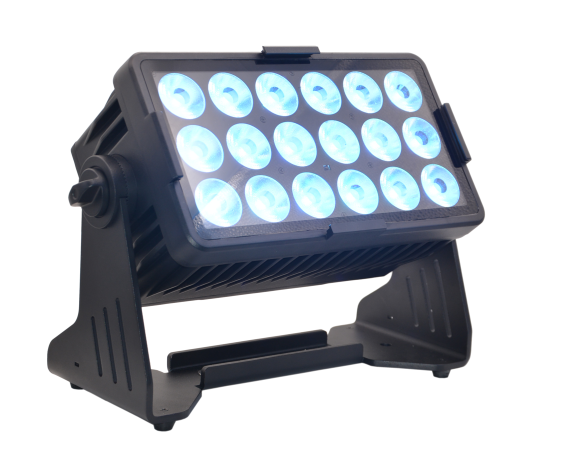

JMaz Electro Panel W18

ELECTRO PANEL W18

FEATURES:

216W (18 x 12W) RGB+L LEDs
11-Hour Battery with Battery Saving Options
Lumen Radio (CRMX) Wireless DMX and RDM
Built-In Preset Colors with Auto programs

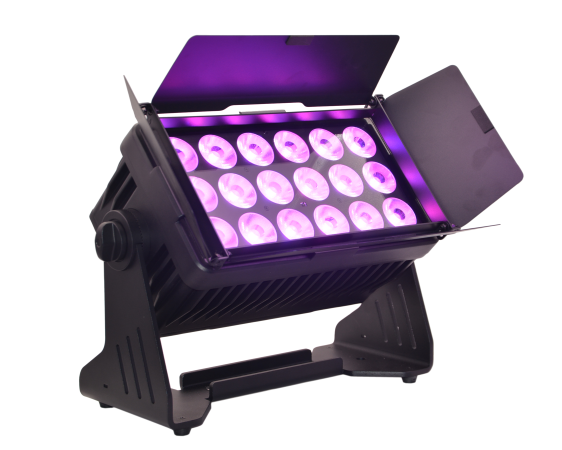

IP65 Rating with Included Barn Doors and Optional Beam Angle Diffusers

SPECIFICATIONS:

Light Source
18 x 12W RGBL LEDs
LED Life Expectancy: 50,000 hrs

Color System
RGBL Color Mixing 32 bit
Color Temperature Range: 2,500K -5,600k
Fading/Jumping Macros

Body
Die-Cast Aluminum and Steel Structure
Exterior Finish: Black

Electronics
Linear LED Dimmer: 0-100% Smooth
Linear CTO: We NEED
Strobe Shutter: 0-25H
Dimming Modes: 4 Different Ones

Electrical
Input Voltage: 100 V – 260 V AC, 50 -60 Hz
Power Consumption: 216W
Included 45ft Range, IR Remote
PWM: 1.5KHz
Power Linking for connecting fixture in daisy-chain
Up to 8 units @110V with a 20A circuit
Up to 14 units @208V with a 20A circuit
Up to 17 units @230V with a 20A circuit
Battery Voltage: 25.9V,
Battery Capacity: 12,5000 mAh, 323.8 Wh/hour
Charger: 36V, 5.5A
Battery Type: Lithium Ion
Rechargeable: Yes
Run Time: Full On: 3 hr 40 min, Single: 11 hours
Charging Time: 2.5 hrs
Battery Life Selectable: 50%, 60%, 70%, 80%, 90%, 100%

Optics
Install Optic: 20 Degree
Filter 1 Beam Angle: 40 Degree
Filter 2 Beam Angle: 60 x 10 Degree
Filter 3 Beam Angle: 80 Degree

Dynamic Effect
Tilt Range: 0-360 Degree
64 Preset Color Macros
Stand Alone Color Mixing: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Dim Mode: 4
Built-In Automated Programs: Yes
Emergency Mode: Same W8

Control
Control Protocol: DMX, RDM
Wireless DMX: Lumen Radio (CRMX) with RDM
Personalities: 3/4/6/8/11 CH DMX Modes

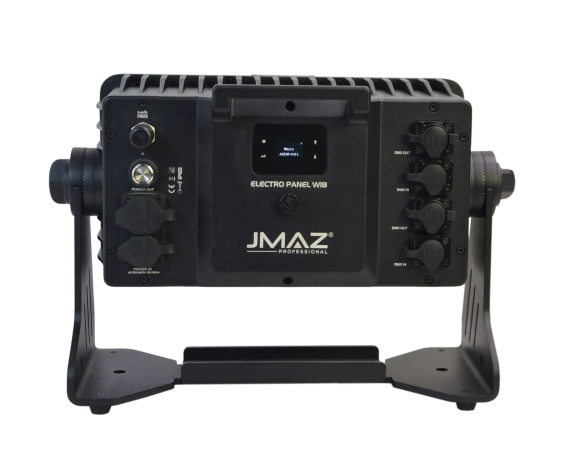

Setting and addressing: OLED Graphical Display, RDM ANSI E2.20, Standalone Mode

Physical
IP Rating: 65
Cooling: Fanless
Power Connection: US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions: 16.2” x 7.3” x 10.6”
Weight: 23.2 lbs
Certification / Qualifications

RoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: 40 ° C ( 104 °F)
Minimum Temperature: – 10 ° C ( 14 ° F)
Maximum Temperature: 60 ° C ( 140 ° F)

Box Content
1 x Electro Panel W18
1 x Powercon IP65 TRUE1 Power cable
1 x 5 pin DMX Cable
1 x User Manual
1 x Omega Brackets
1 x Safety Cable
1 x IR Remote

J MAZ JP2007 (JMAZ ELECTRO PANEL W18)

Research with AI

Battery Life 11-Hour Battery with Battery Saving Options hours
Beam Angle 20 Degree (install optic), 40 Degree, 60 x 10 Degree, 80 Degree (filters) degrees
IP Rating IP65
LED Type 18 x 12W RGBL LEDs
Power Consumption 216W W
Power Rating 216W (18 x 12W) RGB+L LEDs W
Voltage Range 100 V – 260 V AC, 50 -60 Hz volts

Brand JMAZ
Name JMaz Electro Panel W18

CE Certified Yes
FCC Certified Yes
RoHS Compliant Yes
UL Listed Yes (US Edison plug)
Warranty Length Not specified years

Control Interfaces DMX, RDM, OLED Graphical Display, IR Remote
Preset Storage 64 Preset Color Macros, Built-In Preset Colors with Auto programs

Dimensions 16.2” x 7.3” x 10.6” inches
Weight 23.2 lbs lbs

Wireless DMX Lumen Radio (CRMX) Wireless DMX and RDM

Why to Invest?

The Electro Panel W18 is ideal for professional lighting applications requiring high power, versatile color mixing, wireless DMX control, long battery life, and robust IP65-rated construction for outdoor use.

How it Works?

It operates using 18 high-power RGBL LEDs controlled via DMX or wireless CRMX protocols, powered by a rechargeable lithium-ion battery or AC power, with multiple preset colors and automated programs for dynamic lighting effects.

What's Unique?

Unique features include its long battery runtime with selectable battery life modes, fanless IP65-rated design, multiple beam angle filters, and integrated wireless DMX with RDM support.

Features

The JMaz Electro Panel W18 features 216W power with 18 x 12W RGBL LEDs, an 11-hour battery with saving options, Lumen Radio (CRMX) wireless DMX and RDM control, built-in preset colors with auto programs, and an IP65 rating with included barn doors and optional beam angle diffusers.

Specifications

It includes 18 x 12W RGBL LEDs with 50,000 hours life expectancy, RGBL 32-bit color mixing, color temperature range from 2,500K to 5,600K, and multiple dimming and strobe modes. The body is made of die-cast aluminum and steel with a black finish. Electrical input voltage ranges from 100V to 260V AC with 216W power consumption. Battery is a rechargeable 12,500 mAh lithium-ion with 3 hr 40 min full power runtime and 11 hours single mode runtime. Optics include multiple beam angle filters (20°, 40°, 60x10°, 80°). Control protocols include DMX, RDM, and wireless DMX with Lumen Radio (CRMX).

Physical and Certification

The fixture is IP65 rated, fanless cooled, weighs 23.2 lbs, and measures 16.2 x 7.3 x 10.6 inches. It uses Seetronic Powercon IP65 True1 connectors for power and data. Certifications include RoHS, CE, FCC, and UL listing for the US Edison plug.

Included Accessories

The package includes the Electro Panel W18, Powercon IP65 TRUE1 power cable, 5-pin DMX cable, user manual, omega brackets, safety cable, and IR remote.
