High-Output RGB + White LED Strip Light for Stage, Club, and Event Effects
The
American DJ Jolt Bar FX2 is a powerful linear LED fixture designed to deliver both brilliant RGB color effects and intense white strobe lighting in a single, compact unit. With 448 RGB LEDs and 112 cool white strobe LEDs grouped into independently controllable zones, this fixture provides immersive visual impact for live events, nightclubs, and touring productions.
American DJ Jolt Bar FX2 Competitive Differences
- Built-in Aria X2 wireless management for wireless setup, data distribution, and OTA firmware updates
- Frost lens assembly included for diffused visual effects and creative pixel blurring
- 32 RGB zones and 16 white zones for eye-catching chase sequences
- 17 DMX channel modes for flexible programming options
- 67 built-in color temperature presets (2300K–8900K)
- 0.35Hz to 25Hz strobe range with multiple dimming curves and strobe styles
- Linkable design with included connecting plate for seamless fixture alignment
American DJ Jolt Bar FX2 Description
The
Jolt Bar FX2 builds on the success of the original Jolt Bar FX with updated wireless functionality and even more advanced control options. Its wide 117° beam angle and 130° field angle create massive coverage, making it ideal for large stages, concert venues, and immersive installations.
Incorporating
Aria X2 wireless control allows for fast setup without cables, while a wide selection of onboard macros (25 RGB, 9 white) accelerates programming. Users can fine-tune output using four dimming curves, six dimming modes, and configurable strobe patterns.

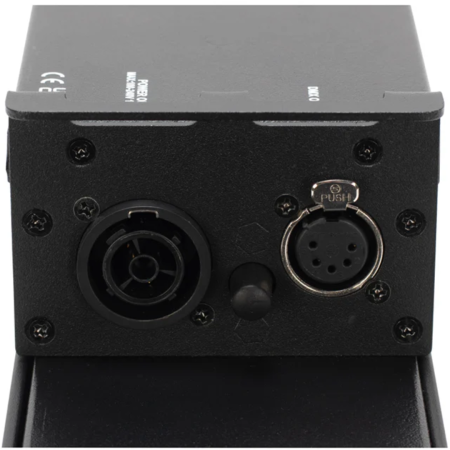

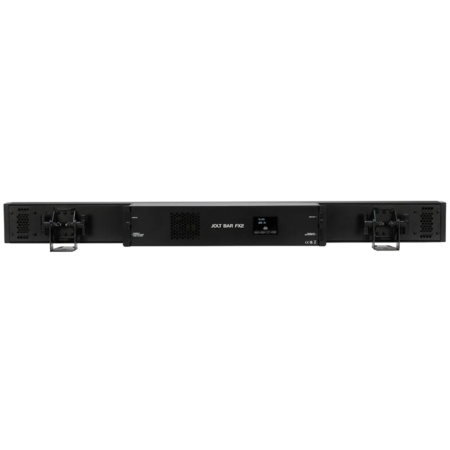

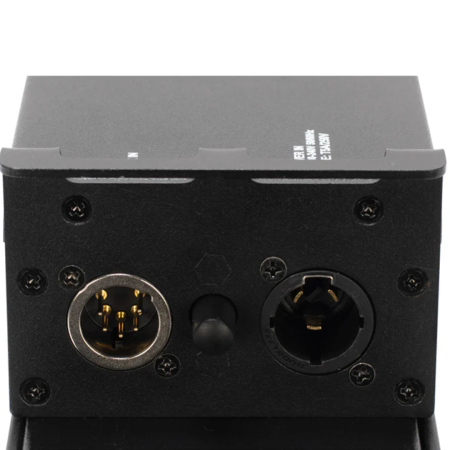

The fixture is housed in a compact yet rugged aluminum chassis measuring 1 meter (39.4") in length and weighing just 13 lbs. Mounting flexibility is enhanced with 180° variable brackets that double as floor stands. IP-rated locking connectors make the unit ready for pro-grade touring and production use.
Jolt Bar FX2 Features

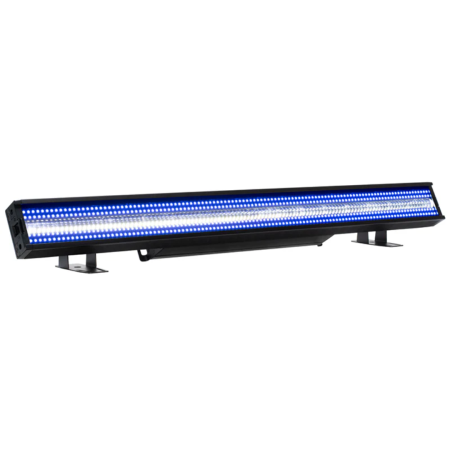

- 448 x 0.5W RGB SMD LEDs + 112 x 5W cool white SMD LEDs

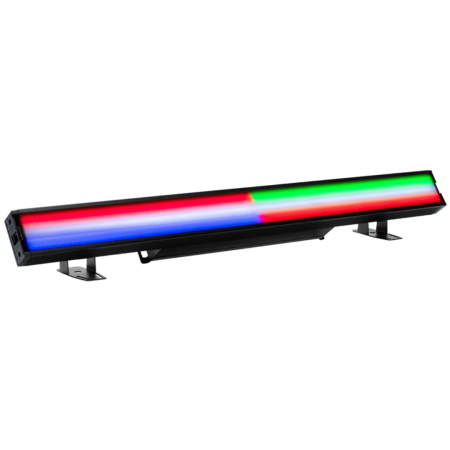

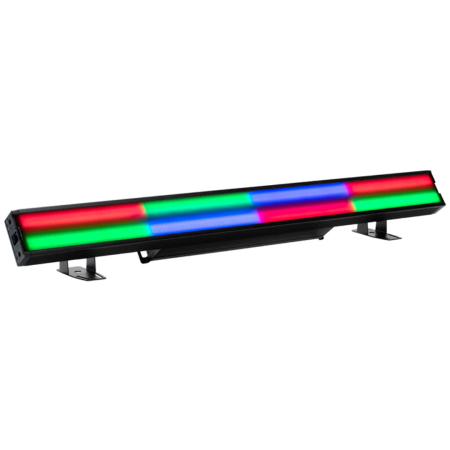

- 32 RGB LED zones & 16 white LED zones (depending on DMX mode)

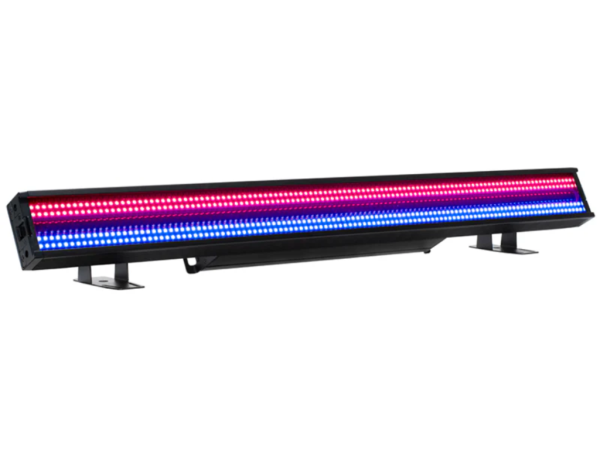

- Built-in Aria X2 wireless management system

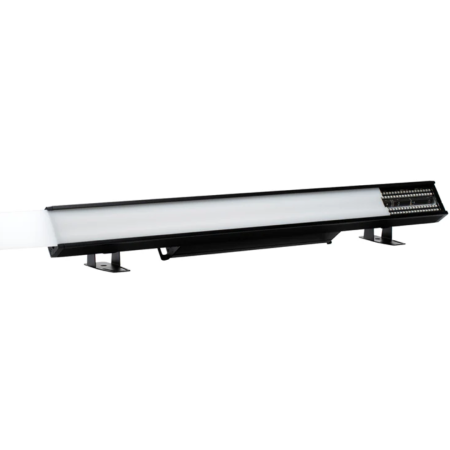

- Frost lens included for diffused visual effect

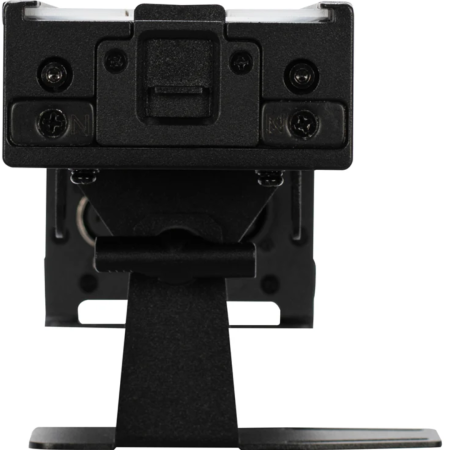

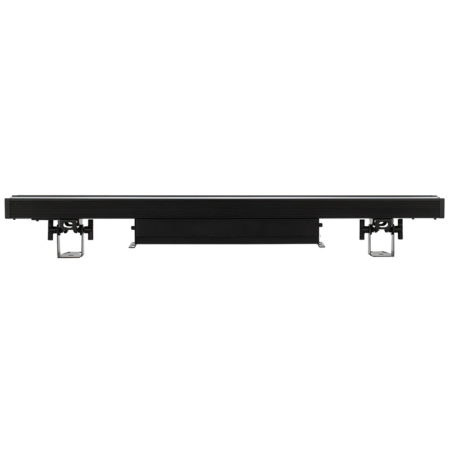

- 180° adjustable mounting bracket or floor stand use
- Link multiple units with included alignment bracket
- 67 color temp presets: 2300K–8900K
- 25 RGB macros & 9 white LED program macros
- OLED menu with 4 touch buttons for easy operation
- Variable refresh rate: 900Hz to 25kHz
Jolt Bar FX2 Specifications
- Beam angle: 76.6° | Field angle: 92°
- CRI: 86 | White LED CCT: 6900–8000K (Typical: 7400K)
- Control: DMX, Aria X2 wireless, RDM
- DMX modes: 6, 9, 13, 16, 18, 20, 32, 34, 38, 43, 45, 64, 78, 80, 112, 127, 129 channels
- Dim curves: Linear, Square Law, Inv. Square Law, S-Curve
- Strobe range: 0.35Hz to 25Hz (Ramp Up, Ramp Down, Lighting, Random)
- Max Power Consumption: 214W @ 120V | 208W @ 230V
- Voltage: Auto-sensing 100–240V AC, 50/60Hz
- Link up to 6 units @120V, 12 units @230V
Jolt Bar FX2 Dimensions & Weight
- Length: 39.4 in. (1000 mm)
- Width: 4.07 in. (103.5 mm)
- Height: 3.98 in. (101 mm)
- Weight: 13 lbs. (5.9 kg)
What’s in the Box
- 1 x Jolt Bar FX2 fixture
- 1 x IP65 locking power cable
- 1 x Frost filter
- 2 x Omega receiver brackets
- 1 x Alignment bracket
Optional Accessories
- Omega Bracket (Sku: Z-8050000053)
- Black Filter (Sku: JBF049)
- 1x60° Linear Filter (Sku: JBF036)
- 60x1° Linear Filter (Sku: JBF062)
Certifications & Ratings
- CE
- cETLus (Control # 4010765)
- IP20 Rated
ADJ Jolt Bar FX2
(American DJ JOL286)
