Event Lighting HYBRICK-FX | IP65 Pixel Effect Ligh...
$1,159.00
Event Lighting HYBRICKFX is a high-output IP65-rated LED effect fixture designed for dynamic stage visuals, pixel mapping, and architectural lighting installations. Combining RGB segmented lighting with warm white beam elements and electronic frost diffusion, it provides powerful creative flexibility for lighting designers and production environments.

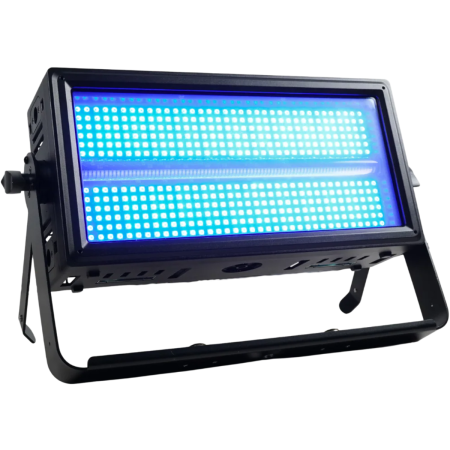

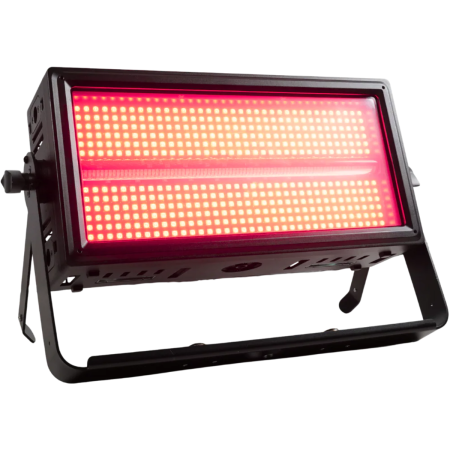

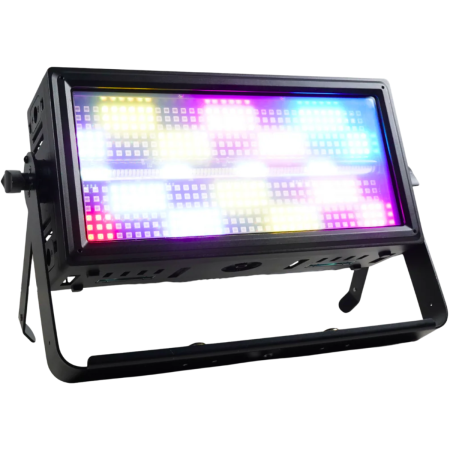

The Event Lighting HYBRICKFX is designed to produce dynamic lighting effects using a combination of high-density RGB LEDs and warm white beam elements. The fixture includes 432 RGB LEDs arranged into 48 pixel cells across segmented plates, enabling detailed pixel mapping, color chases, and creative visual effects.

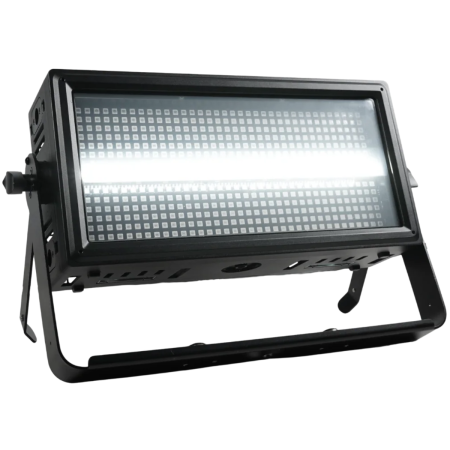

In addition to RGB effects, the fixture integrates 84 warm white LEDs with a 3250K color temperature arranged into 12 beam segments. These provide punchy white accents and layered lighting effects that complement the RGB pixel plate, expanding the range of visual design possibilities.

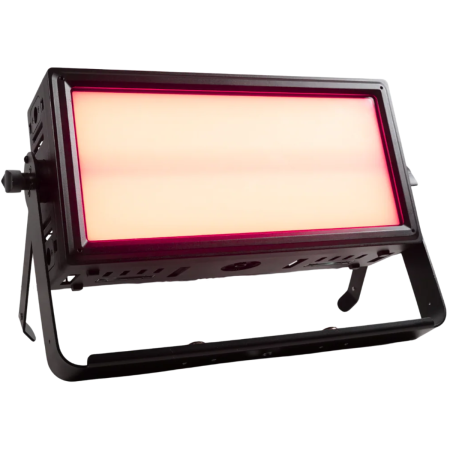

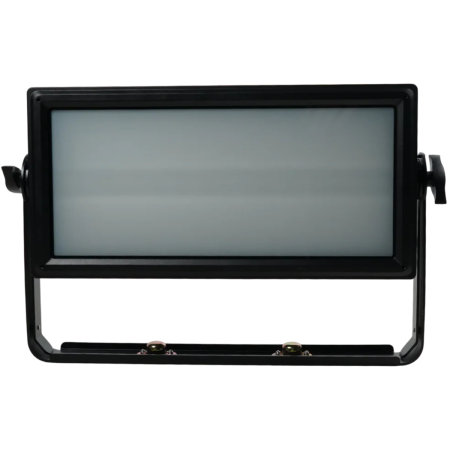

An adjustable electronic frost system allows the beam diffusion level to be controlled from 0% to 100%, giving lighting designers the ability to switch between crisp pixel effects and smooth wash lighting without additional filters. With PWM at 4000 Hz and 16-bit dimming curves, the HYBRICKFX delivers flicker-free performance suitable for broadcast and video environments.

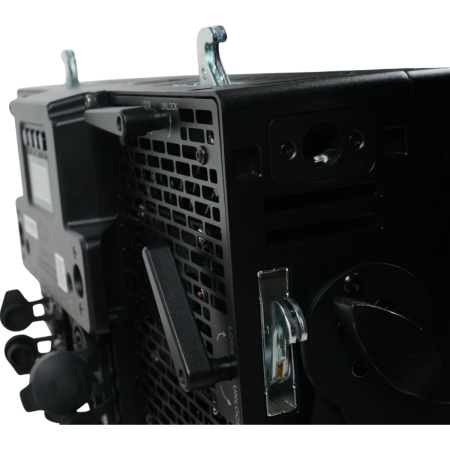

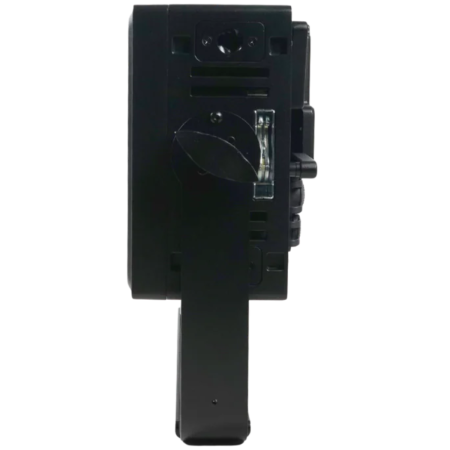

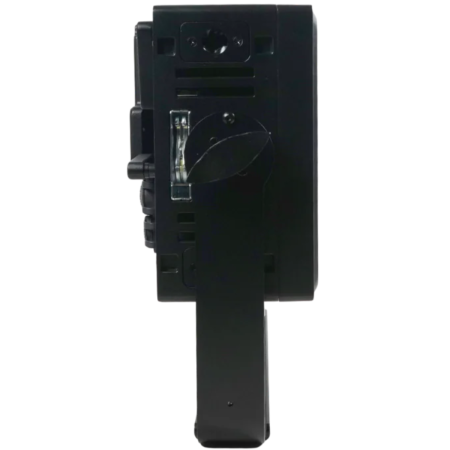

The rugged IP65-rated aluminum housing ensures reliable operation in both indoor and outdoor environments. Its interlocking mechanical design allows multiple fixtures to be connected horizontally or vertically, making it easy to create modular lighting arrays for stage backdrops, architectural features, or touring productions.
| Beam Angle | RGB 120°, Warm White 60° degrees |
| IP Rating | IP65 |
| LED Type | 432 x 1.5W RGB LEDs + 84 x 5W warm white LEDs |
| Power Consumption | 400W W |
| Power Rating | 100–240V AC, 50/60 Hz V AC |
| Brand | Event Lighting |
| Name | Event Lighting HYBRICKFX |
| Build Material | Aluminum |
| Dimensions | 14.7 x 7.3 x 5.8 in (372 x 186 x 146.2 mm) inches |
| Mounting Options | Omega mounting bracket included; interlocking housing system for linking multiple fixtures |
| Weight | 17.9 lb (8.1 kg) kg |
| Color Mixing | RGB segmented pixel control with warm white beam elements |
| Wireless DMX | Supported (WDMX) |

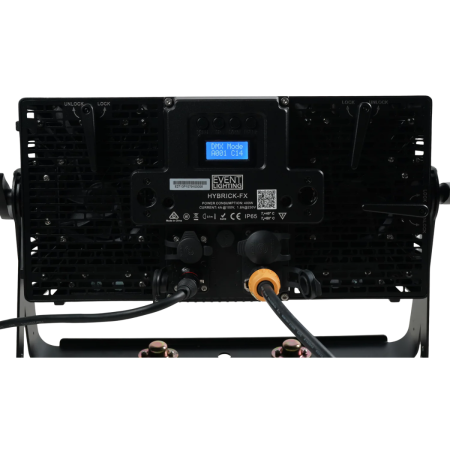

| Control Interfaces | DMX512, 5-pin XLR input/output, RDM, WDMX wireless DMX |
| Firmware Updates | Software upgrade via DMX |
| Physical Controls | 4-button LCD display control panel |
| Preset Storage | Multiple operating modes including static, color fade, auto program, sound active, master/slave |
| Warranty Length | Not specified years |
