American DJ Link

The American DJ LINK is a 4-universe DMX hardware controller designed for use with iPad and the Airstream DMX LINK iOS app. It offers wireless or hardwired iPad control, four 5-pin DMX outputs, and a removable 6U rackmount-ready outer case for lighting control in venues and events.

DMX Lighting Controller

American DJ LINK is a 4-universe DMX hardware controller designed for controlling compatible DMX lighting fixtures from an iPad using the Airstream DMX LINK iOS app. It is useful for mobile events, bars, nightclubs, small productions, and installed lighting setups that need flexible app-based control with reliable hardwired DMX output.

American DJ LINK Competitive Differences

• 4 hardwired DMX universes through four 5-pin XLR DMX output ports
• Wireless iPad control using a private standalone 2.4 or 5 GHz DSSS WiFi network
• Can also connect to an iPad by USB with a compatible adapter, not included
• Dedicated physical controls including faders, rotary dials, playback buttons, encoder wheels, and blackout control
• Removable outer case allows 6U rack mounting for permanent or touring setups

American DJ LINK Description

The American DJ LINK combines app-based lighting control with a hardware surface designed for hands-on programming and playback. It is built for use with the Airstream DMX LINK iOS app for iPad, giving lighting operators a flexible control system for compatible DMX devices.

For wireless operation, LINK creates a private standalone 2.4 or 5 GHz DSSS WiFi network between the controller and iPad. This allows the iPad to be undocked for remote control, programming, and playback while maintaining a dedicated connection separate from general venue WiFi.

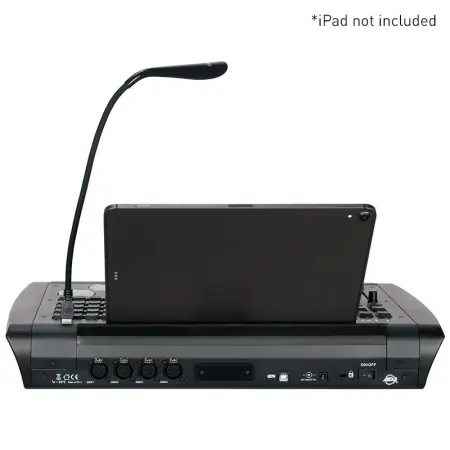

For installations or operators who prefer a wired setup, LINK can connect to an iPad through USB using a compatible cable adapter, not included. Four 5-pin DMX outputs on the rear panel provide constant hardwired DMX output across 4 universes.

The American DJ LINK is designed for small production events, nightclubs, bars, mobile entertainers, and venues that need a robust iPad-based lighting control solution with physical faders, buttons, encoders, and rackmount flexibility.

LINK Features

• 4-universe DMX hardware controller for compatible DMX lighting devices
• Designed for use with the Airstream DMX LINK iOS app for iPad
• Wireless iPad connection using private 2.4 or 5 GHz DSSS WiFi network
• Hardwired iPad connection supported with compatible USB cable adapter, not included

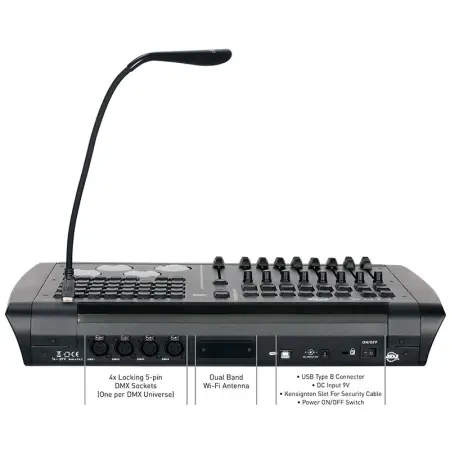

• Four 5-pin DMX output ports for hardwired DMX signal
• WiFi and DMX512 control
• 6 general purpose buttons
• 1 master fader and 8 control 100mm faders
• 16 page playback buttons above faders
• 8 rotary dials with push-in selection above faders
• 1 blackout button
• 32 instant effect or scene calling buttons
• 8 bump / momentary effect buttons
• 4 rotary encoder wheels with push-in selection
• USB input for gooseneck work light
• Removable outer case for 6U rack mounting
• Kensington security device slot

LINK Specifications

• DMX Universes: 4 hardwired DMX universes
• DMX Outputs: 4 x 5-pin DMX output ports
• Wireless Network: 2.4 and 5 GHz DSSS WiFi
• USB Connection: USB 2.0 Type B port
• Compatibility: iPad only
• Required Operating System: iPadOS 14.5 or later
• Rackmount Size: 6U with removable outer case
• Power Supply: Multi-voltage DC9V power supply, 100-240V, 50/60Hz
• Dimensions: 20.3 x 13.2 x 3.5 in (514 x 336 x 88 mm)
• Weight: 13.0 lb (5.9 kg)
• Approvals: FCC, CE, UKCA, cETLus #5014475
• SKU: LIN556
• UPC: 818651028911

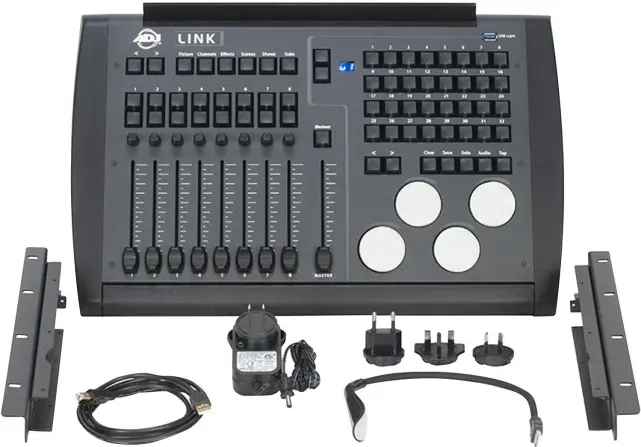

What's In The Box

• American DJ LINK controller
• USB cable
• Multi-voltage DC9V power supply
• Type A power adapter for US
• Type C power adapter for Europe
• Type G power adapter for UK
• Type I power adapter for Australia and China
• Rack mount kit

ADJ LINK Controller (American DJ LINK)
