DMX Recording and Playback Unit
Swisson XRC-200 is a versatile DMX recorder and playback interface designed for architectural, entertainment, and installation lighting systems. It functions similarly to a CD player, making it intuitive for both professionals and non-technical users. Ideal for environments where automated or pre-programmed lighting control is required, the XRC-200 records DMX output from any console and plays it back in real time with full timing and fade control.
Swisson XRC-200 Competitive Differences
- Records and plays up to 64 DMX sequences across 2 universes
- Built-in timer and playlist functionality for full automation
Swisson XRC-200 Description
The
Swisson XRC-200 provides reliable DMX sequence recording with up to 1024 channels (2 universes), making it suitable for controlling complex LED fixtures and moving lights. Its simple user interface mimics that of a traditional media player, allowing easy operation by non-professionals in museums, retail displays, tradeshow booths, or fixed installations.

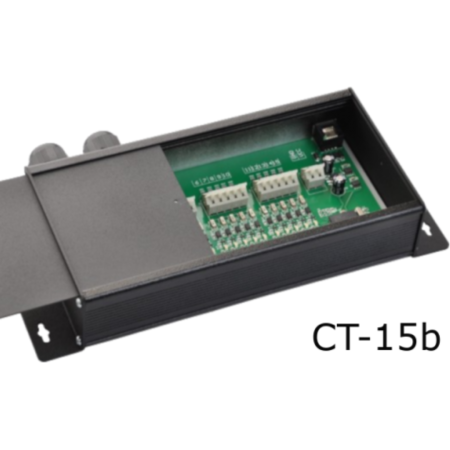

With 64MB of internal memory, users can store 64 individual sequences and organize them into 10 configurable playlists. Each playlist can be triggered via DMX, an internal timer, or optional dry-contact inputs using the XRC-CT15B contact box (sold separately). These inputs allow for customized triggering and flexible system integration.

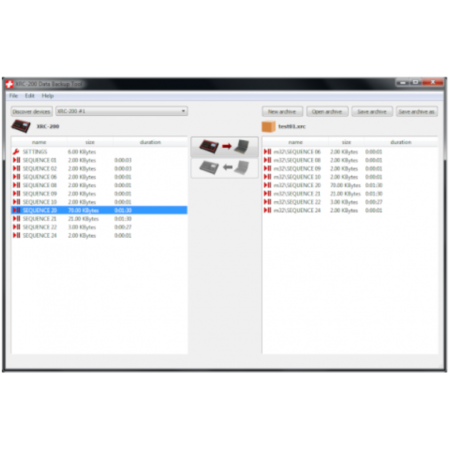

The unit includes USB connectivity for firmware updates and seamless use of PC software for data transfer and system setup. It can also serve as a reliable backup device during live performances by capturing and replaying a console’s output.
Compact and power-efficient, the XRC-200 delivers robust, automated lighting control in a rack, wall, or mobile setup.
Model Features
- 64 DMX sequence memory with real-time playback
- Supports 2 DMX universes (1024 channels)
- 10 configurable playlists with adjustable fade times
- Internal show control timer
- Optional 15-input contact trigger interface
- USB for firmware updates and PC integration
- DMX input/output for recording or triggering
Model Specifications
- DMX Channels: 1024 (2 universes)
- Sequences: 64
- Playlists: 10
- Memory: 64 MB
- Power Input: 100–240 V AC
- Typical Power Consumption: 4 W
- Ambient Temperature Range: -17 to +55°C (0 to +131°F)
- Dimensions: 7.6 x 4.7 x 1.8 in (194 x 119 x 45 mm)
- Weight: Not specified
What's In The Box
- Main unit
- Power cable
- Quick start guide
Swisson XRC-200
(Swisson XRC200)
